Zenith MC7041 - MC7031 Circuit Wiring Diagrams; Control and Preamp Wiring; Function Switch and Indicator Wiring

MODEL MC7031 - DE-EMPHASIS SWITCH

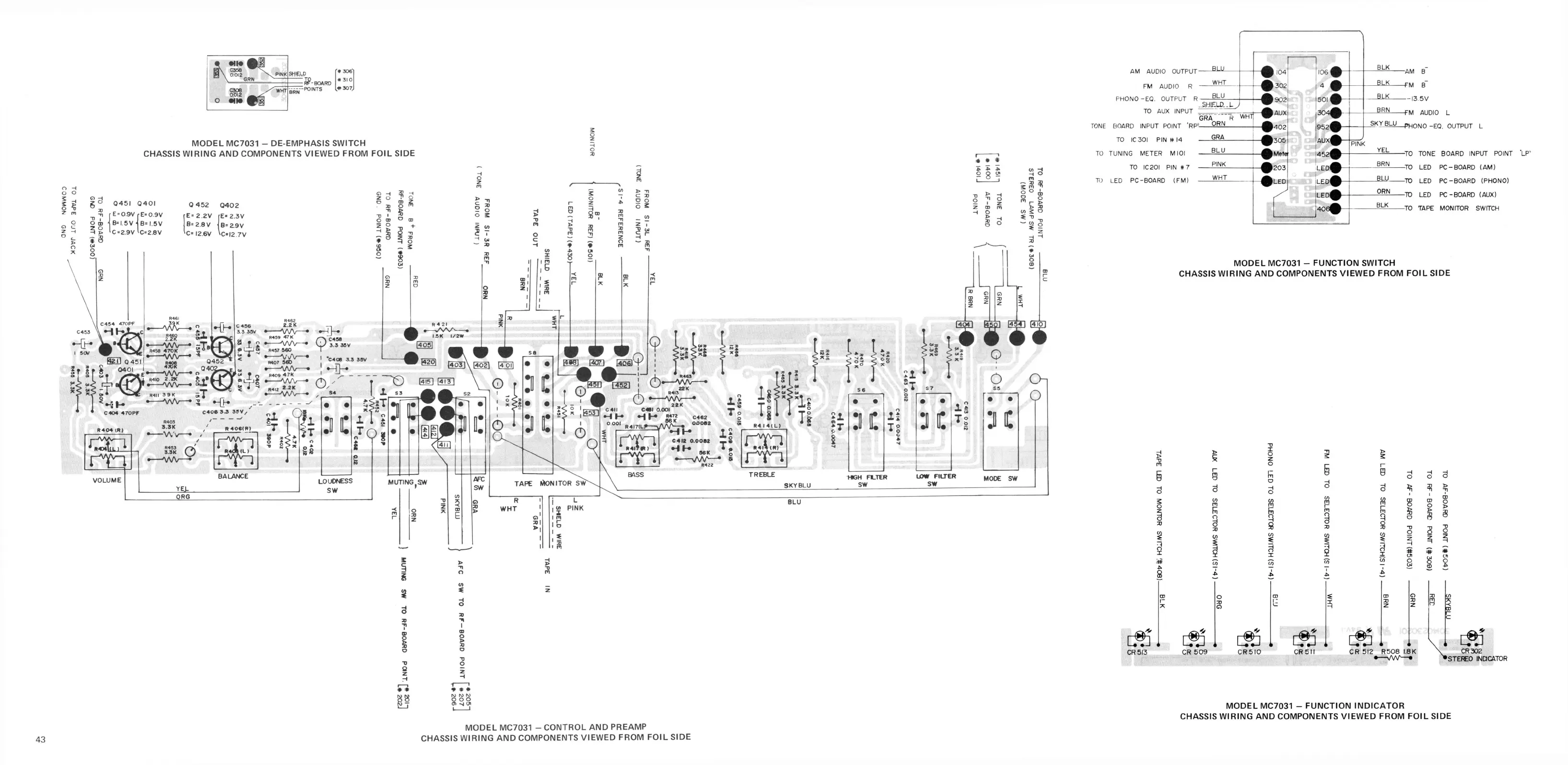

CHASSIS WIRING AND COMPONENTS VIEWED FROM FOIL SIDE
MODEL MC7031 - CONTROL AND PREAMP
CHASSIS WIRING AND COMPONENTS VIEWED FROM FOIL SIDE
MODEL MC7031 - FUNCTION SWITCH
CHASSIS WIRING AND COMPONENTS VIEWED FROM FOIL SIDE
MODEL MC7031 - FUNCTION INDICATOR
CHASSIS WIRING AND COMPONENTS VIEWED FROM FOIL SIDE
