Zenith MC7041 - Page 53

MODEL MC7051 - RF/IF/MPX

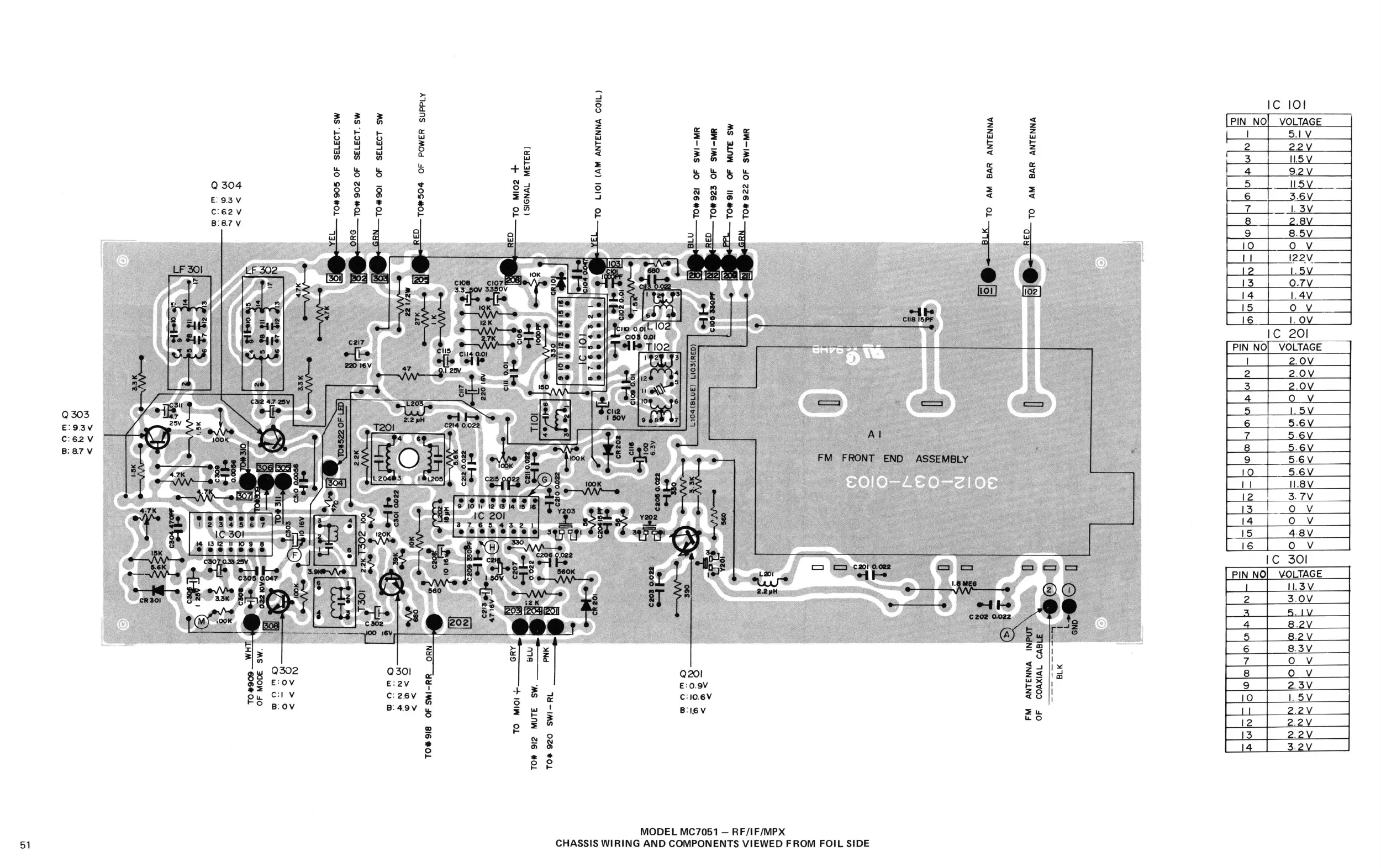

CHASSIS WIRING AND COMPONENTS VIEWED FROM FOIL SIDE
IC 101
PIN NO VOLTAGE
1 5.1 V
2 2.2 V
3 11.5 V
4 9.2 V
5 II.5V
6 3.6V
7 1.3V
8 2.8V
9 8.5V
10 0 V
11 12.2V
12 1.5V
13 0.7V
14 1.4V
15 0 V
16 1.0V
IC 201
PIN NO VOLTAGE
1 2.0V
2 2.0V
3 2.0V
4 0 V
5 1.5V
6 5.6V
7 5.6V
8 5.6V
9 5.6V
10 5.6V
11 11.8V
12 3.7V
13 0 V
14 0 V
15 4.8V
16 0 V
IC 301
PIN NO VOLTAGE
1 11.3 V
2 3.0V
3
5.1 V
4 8.2V
5 8.2 V
6 8.3V
7 0 V
8 0 V
9 2.3 V
10 1.5V
11
2.2V
12 2.2V
13 2.2 V
14 3.2V
