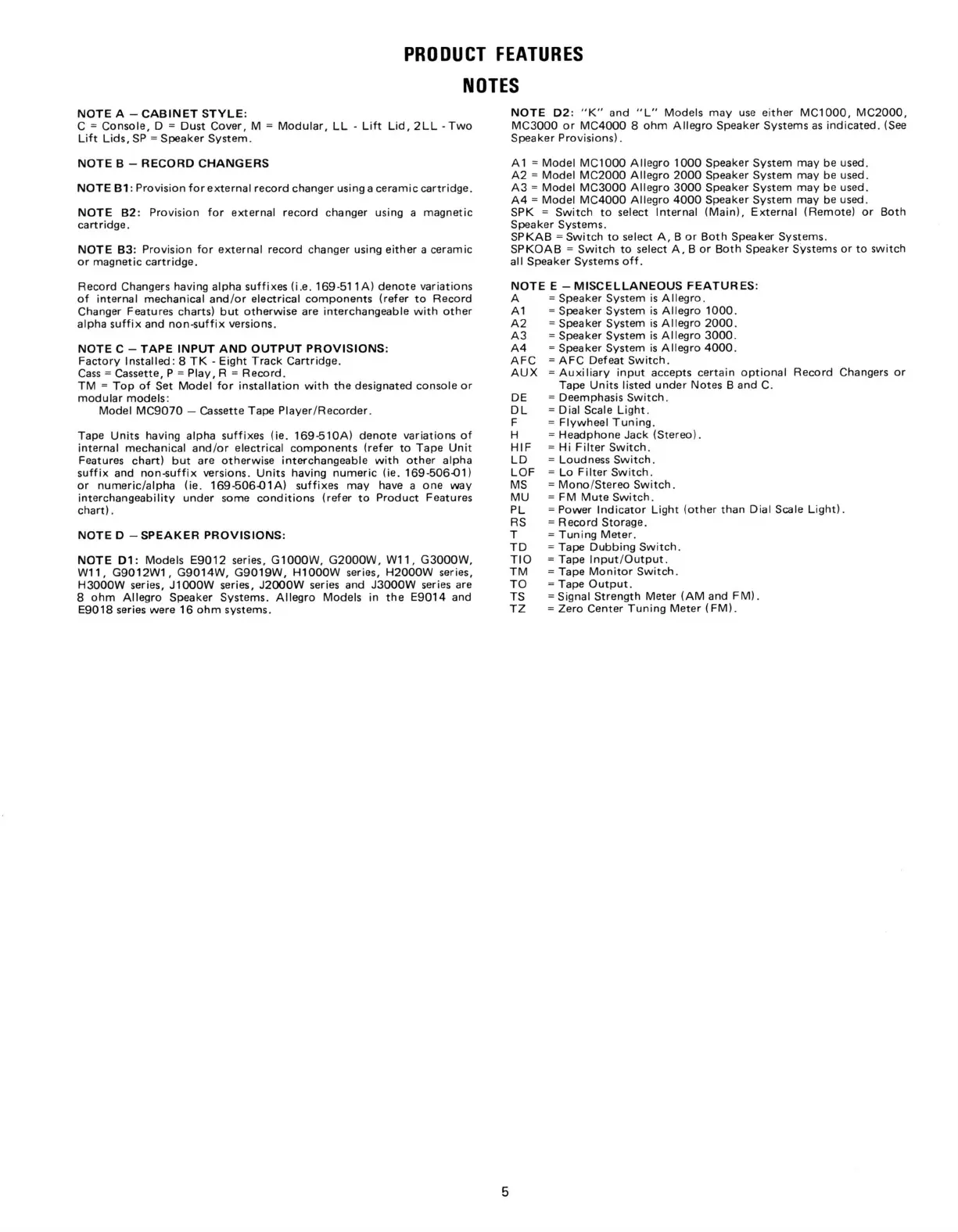

PRODUCT
FEATURES
NOTES
NOTE A - CABINET STYLE:
C = Console, D = Dust Cover, M = Modular, LL - Lift Lid, 2LL - Two
Lift Lids, SP = Speaker System.
NOTE D2: "K" and "L" Models may use either MC1000, MC2000,
MC3000 or MC4000 8 ohm Allegro Speaker Systems as indicated. (See
Speaker Provisions).
NOTE B - RECORD CHANGERS
NOTE B1: Provision for external record changer using a ceramic cartridge.
NOTE B2: Provision for external record changer using a magnetic
cartridge.
NOTE B3: Provision for external record changer using either a ceramic
or magnetic cartridge.
Record Changers having alpha suffixes (i.e. 169-511 A) denote variations
of internal mechanical and/or electrical components (refer to Record
Changer Features charts) but otherwise are interchangeable with other
alpha suffix and non-suffix versions.
NOTE C - TAPE INPUT AND OUTPUT PROVISIONS:
Factory Installed: 8 TK - Eight Track Cartridge.
Cass = Cassette, P = Play, R = Record.
TM = Top of Set Model for installation with the designated console or
modular models:
Model MC9070 - Cassette Tape Player/Recorder.
Tape Units having alpha suffixes (ie. 169-510A) denote variations of
internal mechanical and/or electrical components (refer to Tape Unit
Features chart) but are otherwise interchangeable with other alpha
suffix and non-suffix versions. Units having numeric (ie. 169-506O1)
or numeric/alpha (ie. 169-506-01A) suffixes may have a one way
interchangeability under some conditions (refer to Product Features
chart).
NOTE D - SPEAKER PROVISIONS:
NOTE D1: Models E9012 series, G1000W, G2000W, W11, G3000W,
W11,
G9012W1,
G9014W, G9019W, H1000W series, H2000W series,
H3000W series, J1000W series, J2000W series and J3000W series are
8 ohm Allegro Speaker Systems. Allegro Models in the E9014 and
E9018 series were 16 ohm systems.
A1 = Model MC1000 Allegro 1000 Speaker System may be used.
A2 = Model MC2000 Allegro 2000 Speaker System may be used.
A3 = Model MC3000 Allegro 3000 Speaker System may be used.
A4 = Model MC4000 Allegro 4000 Speaker System may be used.
SPK = Switch to select Internal (Main), External (Remote) or Both
Speaker Systems.
SPKAB = Switch to select A, B or Both Speaker Systems.
SPKOAB = Switch to select A, B or Both Speaker Systems or to switch
all Speaker Systems off.
NOTE E - MISCELLANEOUS FEATURES:
A
= Speaker System is Allegro.
A1 = Speaker System is Allegro 1000.
A2
= Speaker System is Allegro 2000.
A3 = Speaker System is Allegro 3000.
A4 = Speaker System is Allegro 4000.
AFC
= AFC Defeat Switch.
AUX = Auxiliary input accepts certain optional Record Changers or
Tape Units listed under Notes B and C.
DE = Deemphasis Switch.
DL
= Dial Scale Light.
F = Flywheel Tuning.
H = Headphone Jack (Stereo).
HIF = Hi Filter Switch.
LD
= Loudness Switch.
LOF = Lo Filter Switch.
MS = Mono/Stereo Switch.
MU
= FM Mute Switch.
PL
= Power Indicator Light (other than Dial Scale Light).
RS
= Record Storage.
T = Tuning Meter.
TD = Tape Dubbing Switch.
TIO
= Tape Input/Output.
TM = Tape Monitor Switch.
TO
= Tape Output.
TS
= Signal Strength Meter (AM and FM).
TZ = Zero Center Tuning Meter (FM).
5
