ITEM QTY PART MATERIAL
1 1 DRIVING GEAR SHAFT TOOL STEEL
2 1 DRIVEN GEAR SHAFT TOOL STEEL
3 1 CENTER PLATE TOOL STEEL
4 2 COVER PLATE 4140
6 2 BEARING TOOL STEEL
7 2 BEARING TOOL STEEL
14 2 SEAL PLATE STAINLESS
16 2 LIP SEAL FILLED PTFE
17 20 SOCKET HEAD BOLT ALLOY
18 8 SOCKET HEAD BOLT ALLOY
20 2 RHEOSEAL STAINLESS
21 8 SOCKET HEAD CAP SCREW ALLOY
22 2 METAL C-RING, SEALS
23 2 METAL C-RING, PORTS NOT SHOWN

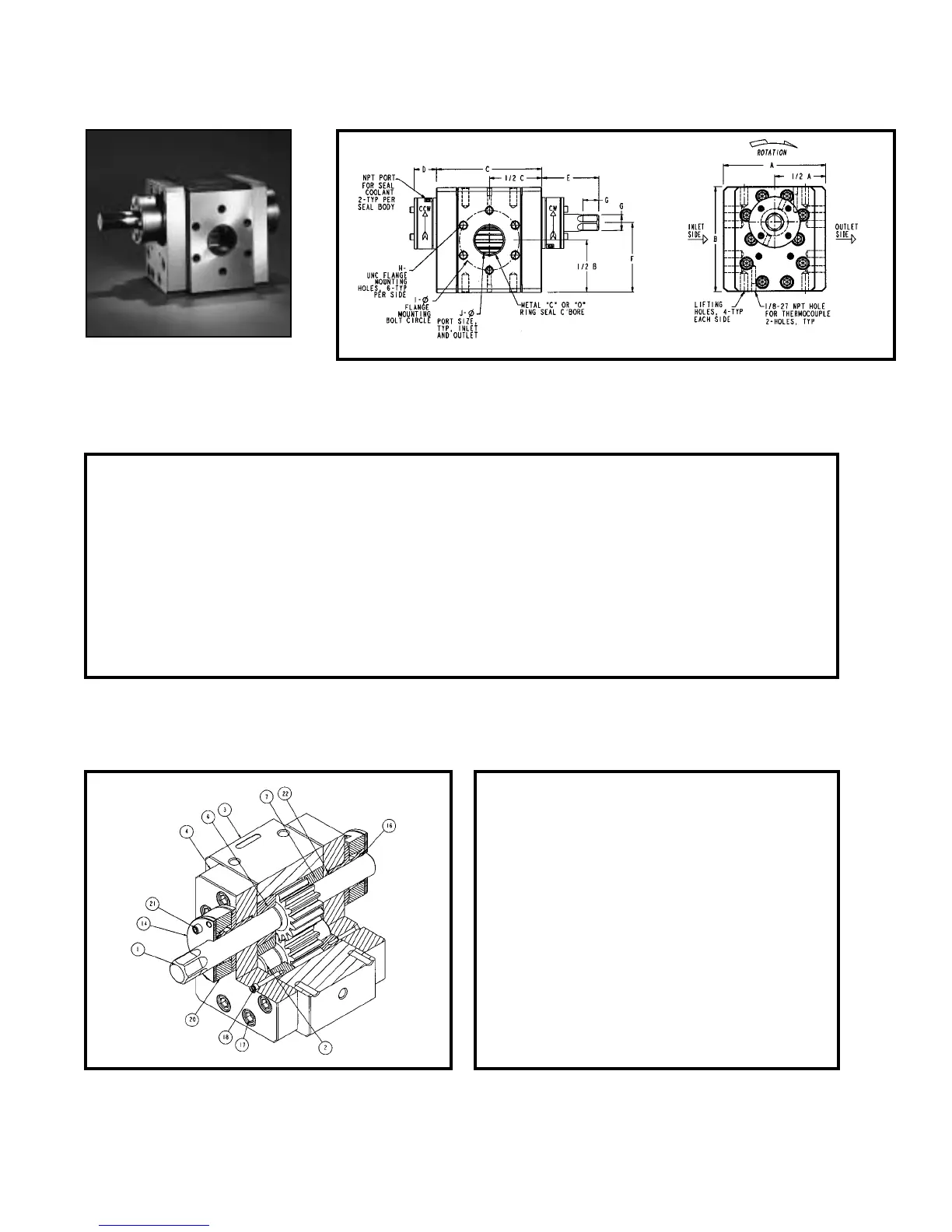

Materials Of Construction Diagram And Chart
Dimensional Diagram
PUMP PUMP DIMENSIONS MAX APPROX
CAPACITY ABCDE FGH IJTORQUE WEIGHT
5 3.250 3.250 3.250 1.125 2.875 2.125 0.500 1/4 1.875 0.750 1225 10
10 4.000 4.000 4.000 1.188 3.375 2.615 0.625 5/16 2.344 1.000 2085 18
20 4.750 5.000 5.000 1.188 3.750 3.300 0.750 3/8 2.813 1.250 3250 34
40 5.750 6.000 6.250 1.188 4.438 4.000 1.000 7/16 3.531 1.500 6750 61
100 8.000 8.250 8.250 1.750 5.438 5.458 1.250 5/8 4.688 2.188 12100 150
175 9.500 9.750 9.880 1.813 6.375 6.475 1.500 3/4 5.750 2.625 22400 260
300 11.250 12.000 12.500 2.375 8.063 8.000 2.000 7/8 7.063 3.000 50600 480
750 14.750 15.750 16.500 3.000 10.000 10.542 2.500 1 1/8 9.688 4.250 116600 1100
CC/REV PUMP DIMENSIONS ARE IN INCHES IN-LBS LBS
Dimensional Data Chart
Diagram 3
5
Chart 3
PEP-II Pump
5-750 cc/rev
Chart 4Diagram 4
