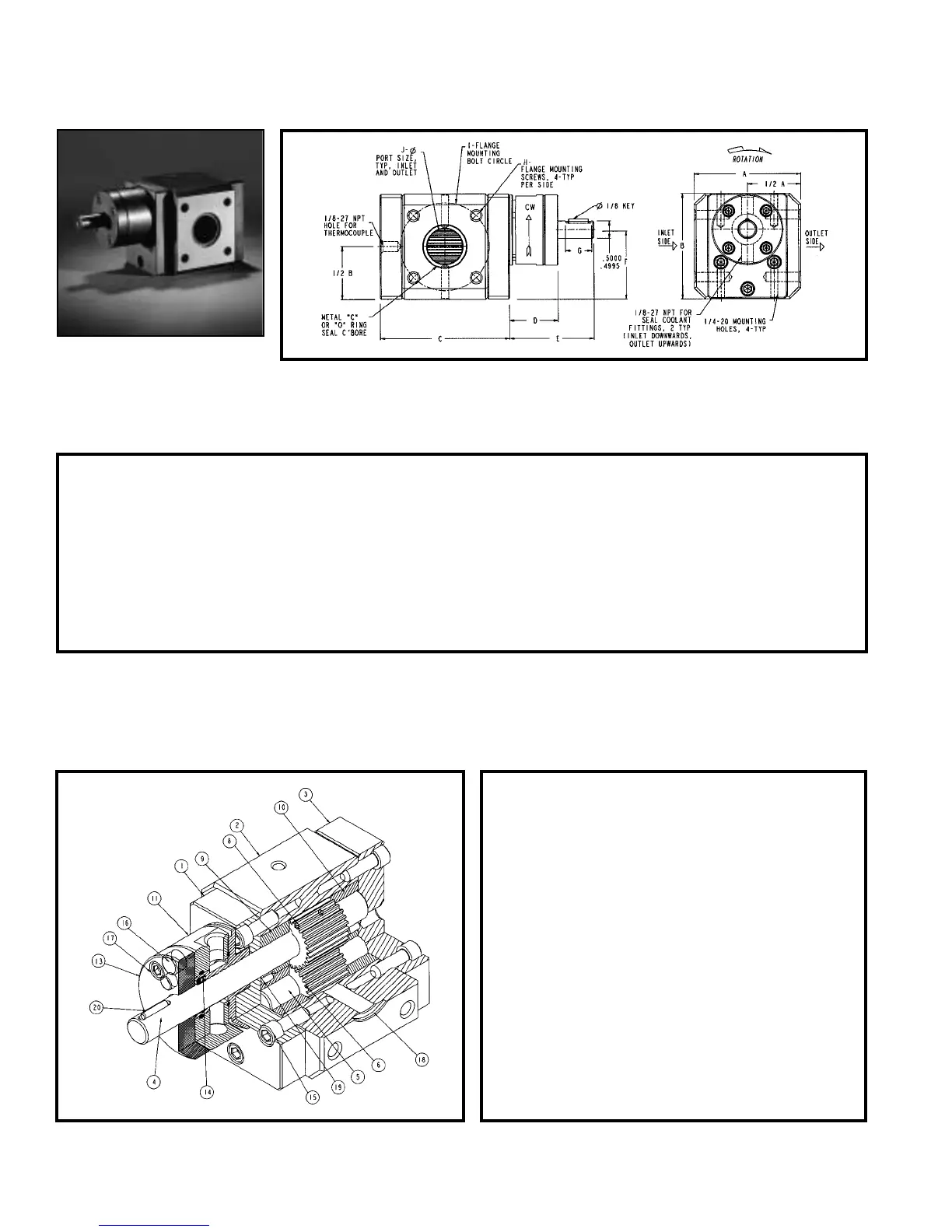

Zenith Pumps - Dimensional Diagram

PEP-II Pump
0.16-3 cc/rev
ITEM QTY PART MATERIAL
1 1 FRONT PLATE TOOL STEEL
2 1 CENTER PLATE TOOL STEEL
3 1 REAR PLATE TOOL STEEL
4 1 DRIVE SHAFT TOOL STEEL
5 1 ARBOR TOOL STEEL
6 2 METERING GEAR TOOL STEEL
8 2 KEY, GEAR
9 2 BEARING TOOL STEEL
10 2 BEARING TOOL STEEL
11 1 RHEOSEAL STAINLESS
13 1 SEAL PLATE STAINLESS
14 1 LIP SEAL FILLED PTFE
15 6 SOCKET HEAD BOLT ALLOY
16 4 SOCKET HEAD BOLT ALLOY
17 4 SOCKET HEAD BOLT ALLOY
18 2 METAL C-RING, PORTS
19 2 KEY, D-BEARING
20 1 KEY, EXTERNAL
PUMP PUMP DIMENSIONS MAX APPROX
CAPACITY A B C D E F G H I J TORQUE WEIGHT
0.16 3.000 3.000 2.860 1.400 2.400 1.960 0.750 1/4 1.500 0.125 80 9
0.3 3.000 3.000 2.860 1.400 2.400 1.960 0.750 1/4 1.500 0.125 80 9
0.6 3.000 3.000 2.860 1.400 2.400 1.960 0.750 1/4 1.500 0.250 195 9
1.2 3.000 3.000 3.650 1.400 2.400 1.960 0.750 5/16 2.500 0.750 410 9
1.8 3.000 3.000 3.650 1.400 2.400 1.960 0.750 5/16 2.500 0.750 410 9
3.0 3.000 3.000 3.650 1.400 2.400 1.960 0.750 5/16 2.500 1.000 600 9
CC/REV PUMP DIMENSIONS ARE IN INCHES IN-LBS LBS
Materials Of Construction Diagram And Chart
Diagram 2 Chart 2
Chart 1
Dimensional Data Chart
Diagram 1
Dimensional Diagram
