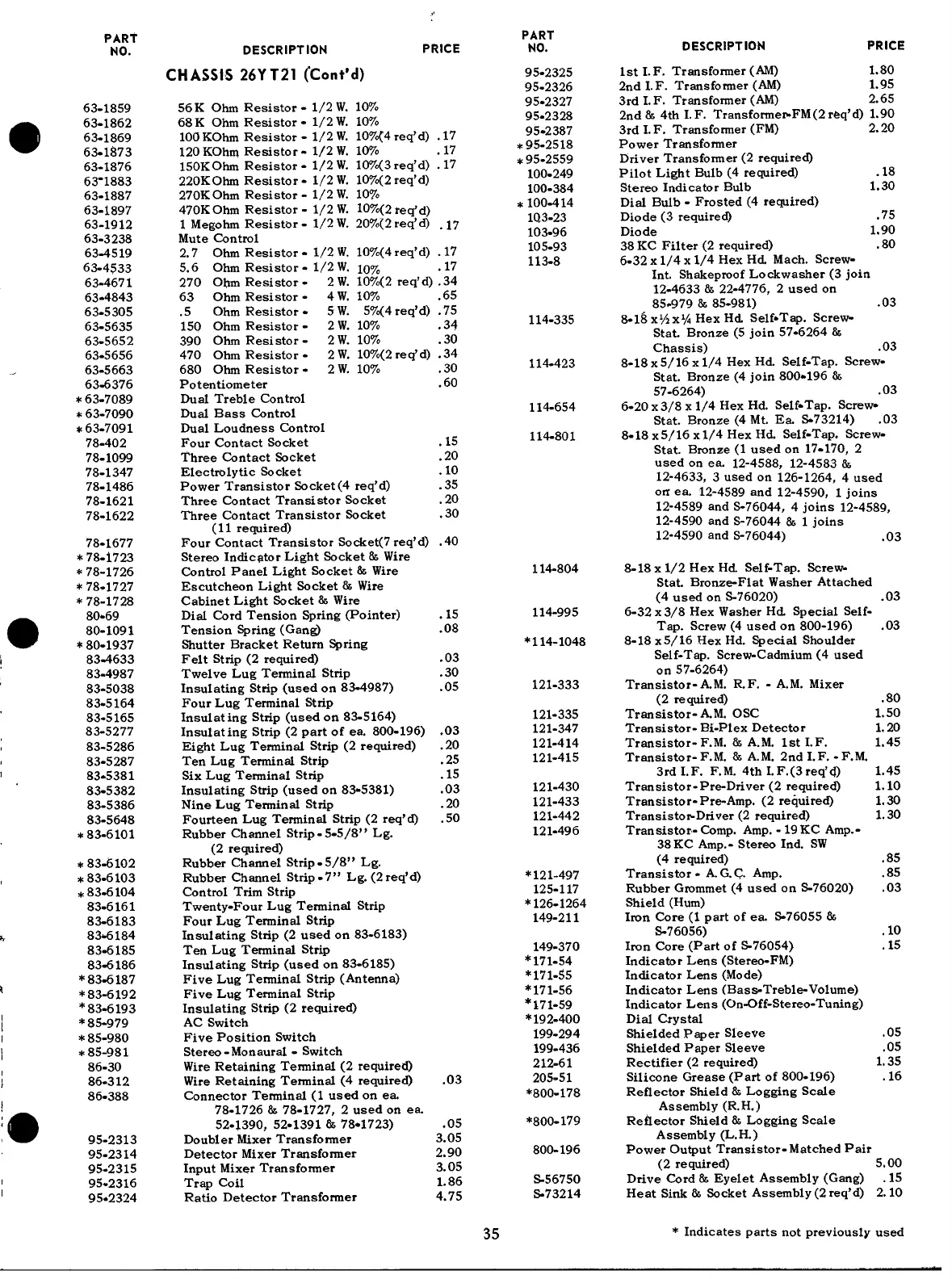

Zenith Y504B - Page 35

PART
NO.
DESCRIPTION PRICE
PART
NO.
DESCRIPTION PRICE
CHASSIS 26YT21 (Cont ’ d)
95-2325
1st I.F. Transformer (AM) 1.80
95-2326
2nd I.F. Transformer (AM) 1.95
63-1859
63-1862
63-1869
63-1873
63-1876
63 ’ 1883
63-1887
63-1897
63-1912
63-3238
63-4519
63-4533
63-4671
56 K Ohm Resistor - 1/2 W. 10%
68 K Ohm Resistor - 1/2 W. 10%
100 KOhm Resistor - 1/2 W. 10%(4 req ’ d) .17
120 KOhm Resistor - 1/2 W. 10% . 17
150KOhm Resistor - 1/2 W. 10%(3 req ’ d) .17
220KOhm Resistor - 1/2 W. 10%(2 req ’ d)
270KOhm Resistor - 1/2 W. 10%
470KOhm Resistor - 1/2 W. 10%(2 req ’ d)
1 Megohm Resistor - 1/2 W. 20%(2 req ’ d) .17
Mute Control
2.7 Ohm Resistor - 1/2 W. 10%(4 req ’ d) .17
5.6 Ohm Resistor - 1/2 W. 10% • 17
270 Ohm Resistor- 2 W. 10%(2 req ’ d) .34
95-2327
95-2328
95-2387
*95-2518
*95-2559
100-249
100-384
* 100-414
10,3-23
103-96
105-93
113-8
3rdI.F. Transformer (AM) 2.65
2nd & 4th I.F. Transformer»FM(2 rfeq ’ d) 1.90
3rd I. F. Transformer (FM) 2.20
Power Transformer
Driver Transformer (2 required)
Pilot Light Bulb (4 required) . 18
Stereo Indicator Bulb 1.30
Dial Bulb - Frosted (4 required)
Diode (3 required) .75
Diode 1.90
38 KC Filter (2 required) . 80
6-32 x 1/4 x 1/4 Hex Hd. Mach. Screw-
Int. Shakeproof Lockwasher (3 join
12-4633 & 22-4776, 2 used on
63-4843
63-5305
63-5635
63-5652
63 Ohm Resistor - 4W. 10% .65
.5 Ohm Resistor - 5W. 5%(4 req ’ d) .75
150 Ohm Resistor - 2W. 10% .34
390 Ohm Resistor- 2W. 10% .30
114-335
85*979 & 85-981) .03
8-1& x/ix 1 /! Hex Hd. Self fc Tap. Screw-
Stat. Bronze (5 join 57-6264 &
Chassis) .03
8-18 x 5/16 x 1/4 Hex Hd. Self-Tap. Screw-
Stat. Bronze (4 join 800-196 &
57-6264) .03
6-20 x 3/8 x 1/4 Hex Hd. Self-Tap. Screw-
Stat. Bronze (4 Mt. Ea. S-73214) .03
63-5656
63-5663
63-6376
470 Ohm Resistor- 2 W. 10%(2 req ’ d) .34
680 Ohm Resistor- 2 W. 10% .30
Potentiometer .60
114-423
* 63-7089
* 63-7090
Dual Treble Control
Dual Bass Control
114-654
*63-7091
78-402
Dual Loudness Control
Four Contact Socket . 15
114-801
8-18 x5/16 xl/4 Hex Hd. Self-Tap. Screw-
Stat. Bronze (1 used on 17-170, 2
78-1099
Three Contact Socket .20
used on ea. 12-4588, 12-4583 &
78-1347
Electrolytic Socket -10
12-4633, 3 used on 126-1264, 4 used
78-1486
78-1621
78-1622
78-1677
Power Transistor Socket (4 req ’ d) .35
Three Contact Transistor Socket .20
Three Contact Transistor Socket .30
(11 required)
Four Contact Transistor Socket(7 req ’ d) .40
off ea. 12-4589 and 12-4590, 1 joins
12-4589 and S-76044, 4 joins 12-4589,
12-4590 and S-76044 & 1 joins
12-4590 and S-76044) .03
* 78-1723
Stereo Indicator Light Socket & Wire
* 78-1726
Control Panel Light Socket & Wire
114-804
8-18 x 1/2 Hex Hd. Self-Tap. Screw-
*78-1727
Escutcheon Light Socket & Wire
Stat. Bronze-Flat Washer Attached
* 78-1728
Cabinet Light Socket & Wire
(4 used on S-76020) .03
80-69
Dial Cord Tension Spring (Pointer) . 15
114-995
6-32 x3/8 Hex Washer Hd. Special Self 
80-1091
Tension Spring (Gang) .08
Tap. Screw (4 used on 800-196) .03
* 80-1937
Shutter Bracket Return Spring
*114-1048
8-18 x5/16 Hex Hd. Special Shoulder
83-4633
Felt Strip (2 required) .03
Self-Tap. Screw-Cadmium (4 used
83-4987
Twelve Lug Terminal Strip .30
on 57-6264)
83-5038
Insulating Strip (used on 83-4987) .05
121-333
Transistor-A.M. R.F. - A.M. Mixer
83-5164
Four Lug Terminal Strip
(2 required) .80
83-5165
Insulating Strip (used on 83-5164)
121-335
Transistor-A.M. OSC 1.50
83-5277
Insulating Strip (2 part of ea. 800-196) .03
121-347
Transistor- Bi-Plex Detector 1.20
83-5286
Eight Lug Terminal Strip (2 required) .20
121-414
Transistor-F.M. 85 A.M. 1st I. F. 1.45
83-5287
Ten Lug Terminal Strip . 25
121-415
Transistor-F.M. & A.M. 2nd I.F. - F.M.
83-5381
Six Lug Terminal Strip . 15
3rd I.F. F.M. 4th I. F. (3 req ’ d) 1.45
83-5382
Insulating Strip (used on 83-5381) .03
121-430
Transistor-Pre-Driver (2 required) 1.10
83-5386
Nine Lug Terminal Strip .20
121-433
Transistor-Pre-Amp. (2 required) 1.30
83-5648
Fourteen Lug Terminal Strip (2 req ’ d) .50
121-442
Transiston-Driver (2 required) 1.30
*83-6101
Rubber Channel Strip -5-5/8 ” Lg.
121-496
Transistor- Comp. Amp. - 19 KC Amp.-
(2 required)
38 KC Amp.- Stereo Ind. SW
* 83-6102
Rubber Channel Strip -5/8 ” Lg.
(4 required) .85
*83-6103
Rubber Channel Strip -7 ” Lg. (2 req ’ d)
*121-497
Transistor - A. G.C. Amp. .85
*83-6104
Control Trim Strip
125-117
Rubber Grommet (4 used on S-76020) .03
83-6161
Twenty-Four Lug Terminal Strip
*126-1264
Shield (Hum)
83-6183
Four Lug Terminal Strip
149-211
Iron Core (1 part of ea. S-76055 &
83-6184
Insulating Strip (2 used on 83-6183)
S-76056) . 10
83-6185
Ten Lug Terminal Strip
149-370
Iron Core (Part of S-76054) . 15
83-6186
Insulating Strip (used on 83-6185)
*171-54
Indicator Lens (Stereo-FM)
*83-6187
Five Lug Terminal Strip (Antenna)
*171-55
Indicator Lens (Mode)
*83-6192
Five Lug Terminal Strip
*171-56
Indicator Lens (Bass-Treble-Volume)
*83-6193
Insulating Strip (2 required)
*171-59
Indicator Lens (On-Off-Stereo-Tuning)
*85-979
AC Switch
*192-400
Dial Crystal
* 85-980
Five Position Switch
199-294
Shielded Paper Sleeve .05
*85-981
Stereo-Monaural - Switch
199-436
Shielded Paper Sleeve .05
86-30
Wire Retaining Terminal (2 required)
212-61
Rectifier (2 required) 1.35
86-312
Wire Retaining Terminal (4 required) .03
205-51
Silicone Grease (Part of 800-196) . 16
86-388
Connector Terminal (1 used on ea.
*800-178
Reflector Shield & Logging Scale
78-1726 & 78-1727, 2 used on ea.
Assembly (R.H.)
52-1390, 52-1391 & 78-1723) .05
*800-179
Reflector Shield & Logging Scale
95-2313
Doubler Mixer Transformer 3.05
Assembly (L.H.)
95-2314
Detector Mixer Transformer 2.90
800-196
Power Output Transistor-Matched Pair
95-2315
Input Mixer Transformer 3.05
(2 required) 5.00
95-2316
Trap Coil 1.86
S-56750
Drive Cord & Eyelet Assembly (Gang) . 15
95-2324
Ratio Detector Transformer 4.75
S-73214
Heat Sink & Socket Assembly (2 req ’ d) 2.10
35
* Indicates parts not previously used
