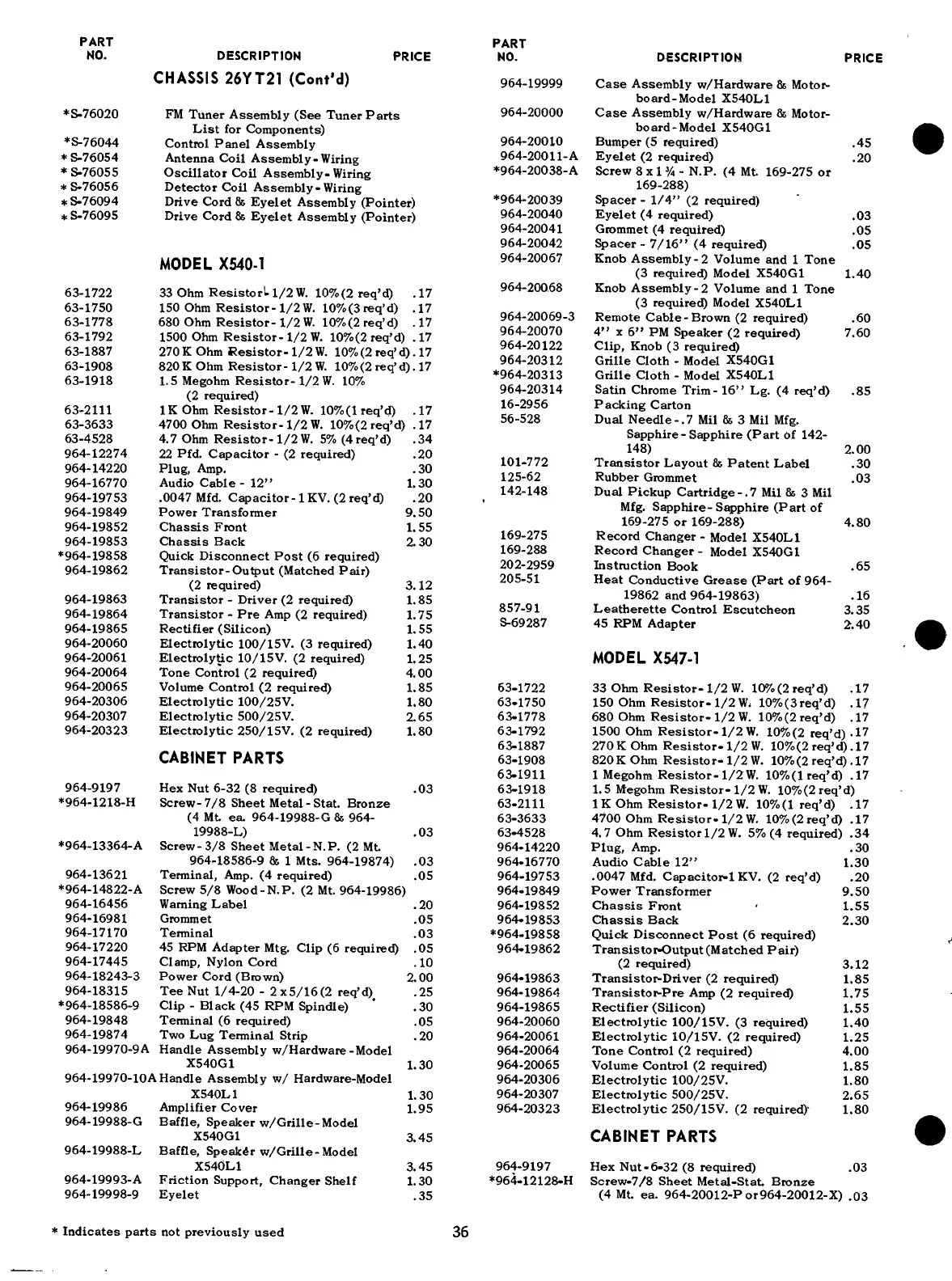

Zenith Y504B - Page 36

* Indicates parts not previously used
36
PART
NO.
DESCRIPTION PRICE
PART
NO.
DESCRIPTION PRICE
CHASSIS 26YT21 (Cont ’ d)
964-19999
Case Assembly w/Hardware & Motor 
board-Model X540L1
*S-76020
FM Tuner Assembly (See Tuner Parts
964-20000
Case Assembly w/Hardware & Motor 
List for Components)
board-Model X540G1
*S-76044
Control Panel Assembly
964-20010
Bumper (5 required) .45
* S-76054
Antenna Coil Assembly-Wiring
964-20011- A
Eyelet (2 required) .20
* S-76055
Oscillator Coil Assembly-Wiring
*964-200 38-A
Screw 8 x 1 % - N.P. (4 Mt. 169-275 or
* S-76056
DetectorCoil Assembly-Wiring
169-288)
* S-76094
Drive Cord 8s Eyelet Assembly (Pointer)
*964-20039
Spacer - 1/4 ” (2 required)
* S-76095
Drive Cord & Eyelet Assembly (Pointer)
964-20040
Eyelet (4 required) .03
964-20041
Grommet (4 required) .05
964-20042
Spacer - 7/16 ” (4 required) .05
MODEL X540-1
964-20067
Knob Assembly -2 Volume and 1 Tone
(3 required) Model X540G1 1.40
63-1722 33 Ohm Resistori' 1/2 W. 10%(2 req ’ d)
.17
964-20068
Knob Assembly -2 Volume and 1 Tone
63-1750
150 Ohm Resistor- 1/2 W. 10%(3 req ’ d)
.17
964-20069-3
(3 required) Model X540L1
63-1778
680 Ohm Resistor- 1/2 W. 10%(2 req ’ d)
.17
Remote Cable-Brown (2 required) .60
63-1792
1500 Ohm Resistor- 1/2 W. 10%(2 tea ’ dl 1 .17
964-20070
4 ” x 6 ” PM Speaker (2 required) 7.60
63-1887
270KOhm Resistor- 1/2 W. 10%(2 req ’ d) . 17
964-20122
Clip, Knob (3 required)
63-1908
820K Ohm Resistor- 1/2 W. 10%(2 tea ’ dL 17
964-20312 Grille Cloth - Model X540G1
63-1918
1.5 Megohm Resistor- 1/2 W. 10%
*964-20313 Grille Cloth - Model X540L1
(2 required)
964-20314
Satin Chrome Trim - 16 ” Lg. (4 req ’ d) .85
63-2111 IK Ohm Resistor- 1/2 W. 10%(l req ’ d)
.17
16-2956
Packing Carton
63-3633
4700 Ohm Resistor- 1/2 W. 10%(2 req ’ d;
) .17
56-528
Dual Needle -.7 Mil & 3 Mil Mfg.
63-4528
4.7 Ohm Resistor- 1/2 W. 5% (4 req ’ d)
.34
Sapphire - Sapphire (Part df 142-
964-12274
22 Pfd. Capacitor - (2 required)
.20
101-772
148) 2.00
964-14220
Plug, Amp.
.30
Transistor Layout & Patent Label .30
964-16770
Audio Cable - 12 ”
1.30
125-62
Rubber Grommet .03
964-19753
.0047 Mfd. Capacitor - 1 KV. (2 req ’ d)
.20
142-148
Dual Pickup Cartridge -.7 Mil & 3 Mil
964-19849 Power Transformer
9.50
Mfg. Sapphire-Sapphire (Part of
964-19852 Chassis Front
1.55
169-275
169-275 or 169-288) 4.80
964-19853 Chassis Back
2.30
Record Changer - Model X540L1
*964-19858
Quick Disconnect Post (6 required)
169-288
Record Changer - Model X540G1
964-19862
Transistor-Output (Matched Pair)
202-2959
Instruction Book .65
(2 required)
3.12
205-51
Heat Conductive Grease (Part of 964-
964-19863
Transistor - Driver (2 required)
1.85
857-91
S-69287
19862 and 964-19863) .16
964-19864
964-19865
Transistor - Pre Amp (2 required)
Rectifier (Silicon)
1.75
1.55
Leatherette Control Escutcheon 3.35
45 RPM Adapter 2.40
964-20060
Electrolytic 100/ 15V. (3 required)
1.40
964-20061
Electrolytic 10/15V. (2 required)
1.25
MODEL X547-1
964-20064
Tone Control (2 required)
4.00
964-20065
Volume Control (2 required)
1.85
53-1722 33 Ohm Resistor- 1/2 W. 10% (2 req ’ d) . 17
964-20306
Electrolytic 100/25V.
1.80
63-1750
150 Ohm Resistor- 1/2 W< 10%(3req ’ d) . 17
964-20307
Electrolytic 500/25V.
2.65
63-1778
680 Ohm Resistor- 1/2 W. 10%(2 req ’ d) . 17
964-20323
Electrolytic 250/ 15V. (2 required)
1.80 63-1792
1500 Ohm Resistor- 1/2 W. 10%(2 req ’ d) .17
CABINET PARTS
63-1887
270KOhm Resistor- 1/2 W. 10%(2 req ’ d) . 17
63-1908
820 K Ohm Resistor- 1/2 W. 10% (2 req ’ d) . 17
63-1911
1 Megohm Resistor- 1/2 W. 10%(l req ’ d) .17
964-9197
Hex Nut 6-32 (8 required)
.03
63-1918
1.5 Megohm Resistor- 1/2 W. 10%(2 req ’ d)
*964-1218-H
Screw- 7/8 Sheet Metal - Stat. Bronze
63-2111
1 K Ohm Resistor- 1/2 W. 10%(l req ’ d) . 17
(4 Mt. ea. 964-19988-G & 964-
63-3633
4700 Ohm Resistor- 1/2 W. 10%(2req ’ d) .17
19988-L)
.03
63-4528
4.7 Ohm Resistor 1/2 W. 5% (4 required) .34
*964-13364-A
Screw -3/8 Sheet Metal-N.P. (2 Mt
964-14220
Plug, Amp. . 30
964-18586-9 & 1 Mts. 964-19874)
.03
964-16770
Audio Cable 12 ” 1.30
964-13621 Terminal, Amp. (4 required)
.05
964-19753
.0047 Mfd. Capacitor*l KV. (2 req ’ d) .20
*964-148 22-A
Screw 5/8 Wood-N.P. (2 Mt. 964-19986)
964-19849
Power Transformer 9.50
964-16456
Warning Label
.20
964-19852
Chassis Front * 1.55
964-16981
Grommet
.05
964-19853 Chassis Back 2.30
964-17170
Terminal
.03
*964-19858
Quick Disconnect Post (6 required)
964-17220
45 RPM Adapter Mtg. Clip (6 required)
.05
964-19862
Transistor-Output (Matched Pair)
964-17445
Clamp, Nylon Cord
.10
(2 required) 3.12
964-18243-3
Power Cord (Brown)
2.00
964-19863 Transistor-Driver (2 required) 1.85
964-18315
Tee Nut 1/4-20 - 2x5/16(2 req ’ d)
.25
964-19864
Transistor-Pre Amp (2 required) 1.75
*964-18586-9
Clip - Black (45 RPM Spindle)
.30
964-19865
Rectifier (Silicon) 1.55
964-19848
Terminal (6 required)
.05
964-20060
Electrolytic 100/ 15V. (3 required) 1.40
964-19874
Two Lug Terminal Strip
.20
964-20061
Electrolytic 10/ 15V. (2 required) 1.25
964-19970-9A
Handle Assembly w/Hardware-Model
964-20064
Tone Control (2 required) 4.00
X540G1
1.30 964-20065
Volume Control (2 required) 1.85
964-19970-10A Handle Assembly w/ Hardware-Model
964-20306
Electrolytic 1OO/25V. 1.80
X540L1
1.30
964-20307
Electrolytic 500/25V. 2.65
964-19986
Amplifier Cover
1.95
964-20323
Electrolytic 250/ 15V. (2 required)' 1.80
964-19988-G
Baffle, Speaker w/Grille-Model
X540G1
3.45 CABINET PARTS
964-19988-L
Baffle, Speaker w/Grille-Model
X540L1
3.45
964-9197
Hex Nut- 6-32 (8 required) .03
964-19993-A
Friction Support, Changer Shelf
1.30
*964-12128-H
Screw-7/8 Sheet Metal-Stat Bronze
964-19998-9 Eyelet
.35
(4 Mt. ea. 964-20012-P or 964-20012- X) .03
