Zenith ZICSD455 - Page 15

EN
13
1
3
5
PS
Torx
(T)
x6
Wood
(W)
x15
Plastic Sheet
(PS)
x12
Wood
(1TW)
x3

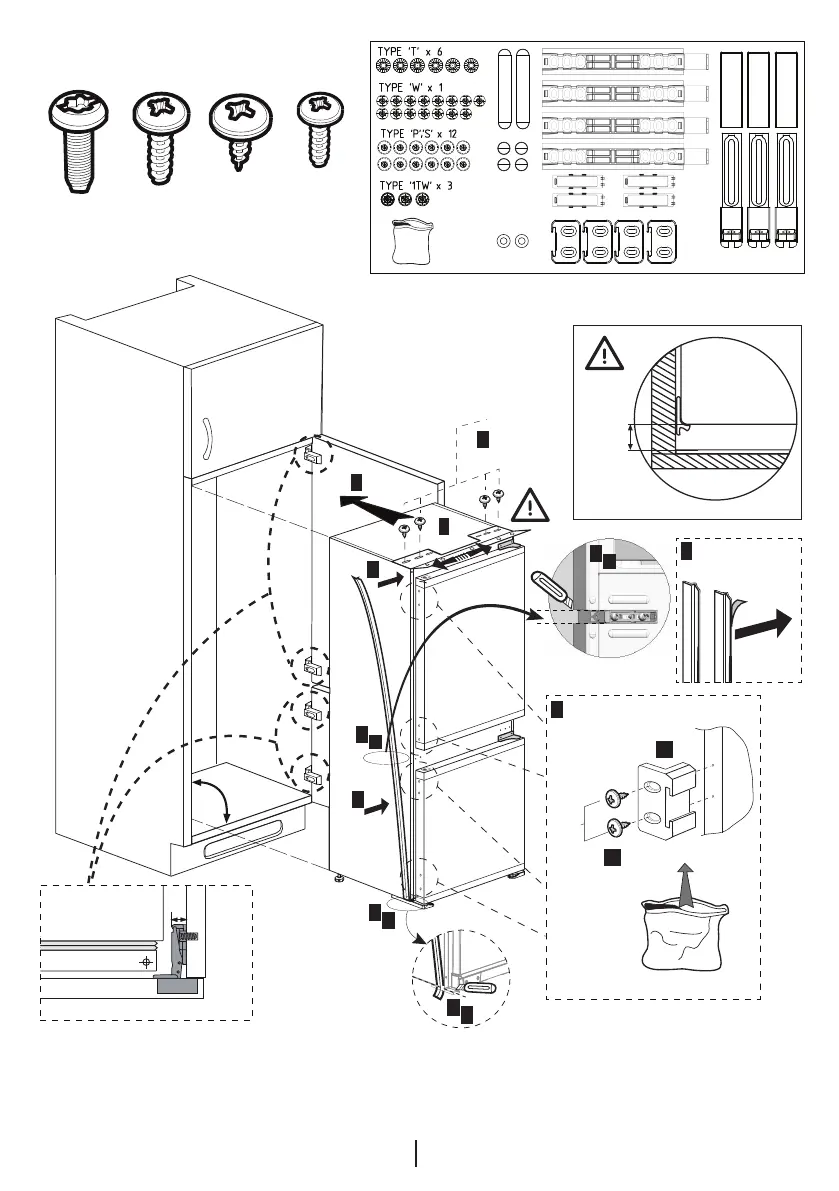

Note: Installation step for 2, screws for connecting top plastic part should not be screwed very hard, because
of moving the plastic part easily left or right side.
* Spares included
1
b
1
a
1
1
a
5
*
1
a
4
b
PS
≤ 17 mm
1
b
2
42 mm
T
op
view
* If the subject parts are not included in the product you
have purchased, then it is valid for other models.
