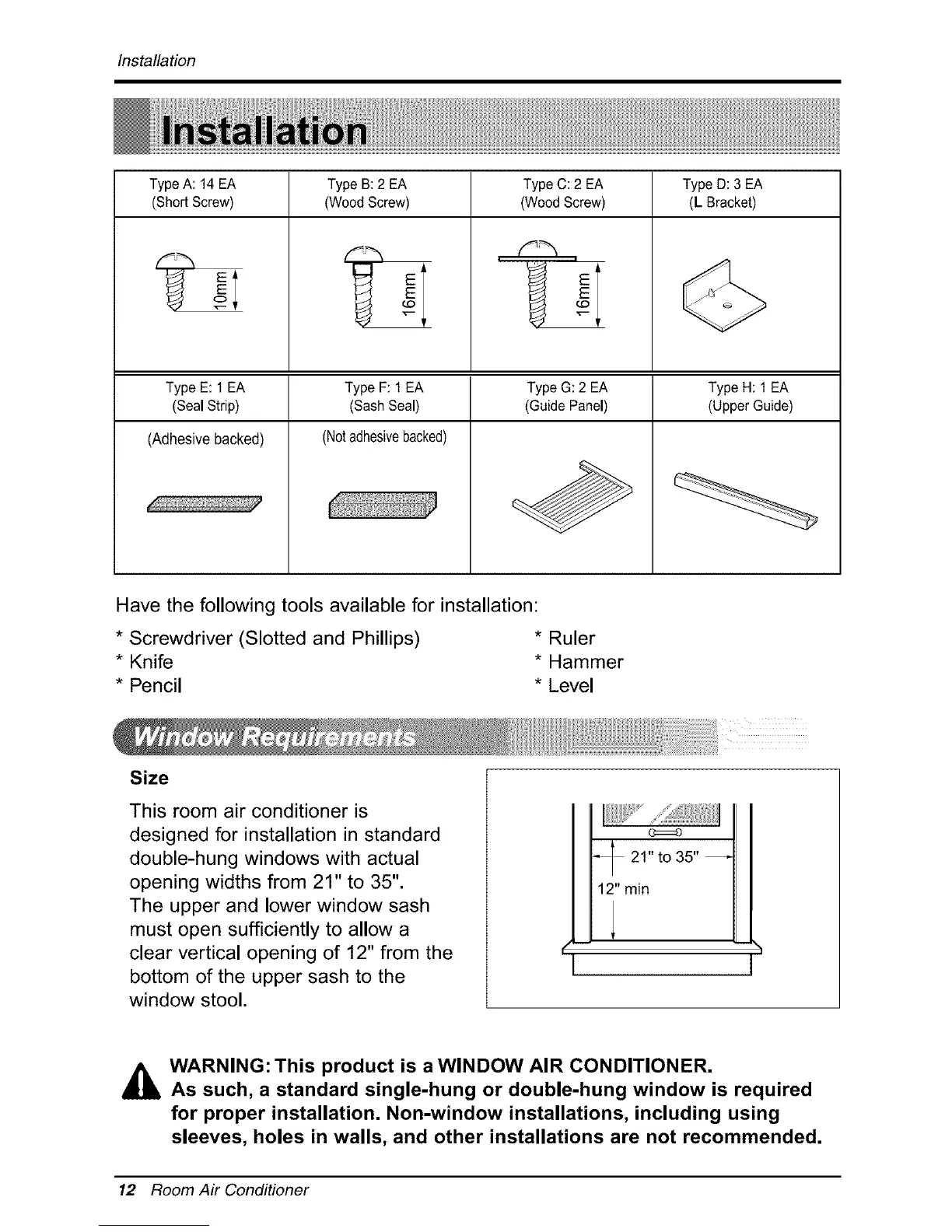

Installation
Type A: 14 EA Type B: 2 EA Type C: 2 EA Type D: 3 EA
(Short Screw) (Wood Screw) (Wood Screw) (L Bracket)
F_
E
E
(,o
r
Type E: 1 EA Type F: 1EA Type G: 2 EA Type H: 1EA
(Seal Strip) (SashSeal) (Guide Panel) (UpperGuide)
(Notadhesivebacked)
(Adhesive backed)
Have the following tools available for installation:
* Screwdriver (Slotted and Phillips) * Ruler
* Knife * Hammer
* Pencil * Level
Size
This room air conditioner is
designed for installation in standard
double-hung windows with actual
opening widths from 21" to 35".
The upper and lower window sash
must open sufficiently to allow a
clear vertical opening of 12" from the
bottom of the upper sash to the
window stool.
I I
WARNING: This product is a WINDOW AIR CONDITIONER.
As such, a standard single-hung or double-hung window is required
for proper installation. Non-window installations, including using
sleeves, holes in walls, and other installations are not recommended.
12 Room Air Conditioner
