Installation Instructions
Preparation & Installation
Locking Tabs
Bottom Panel Screws
2
1

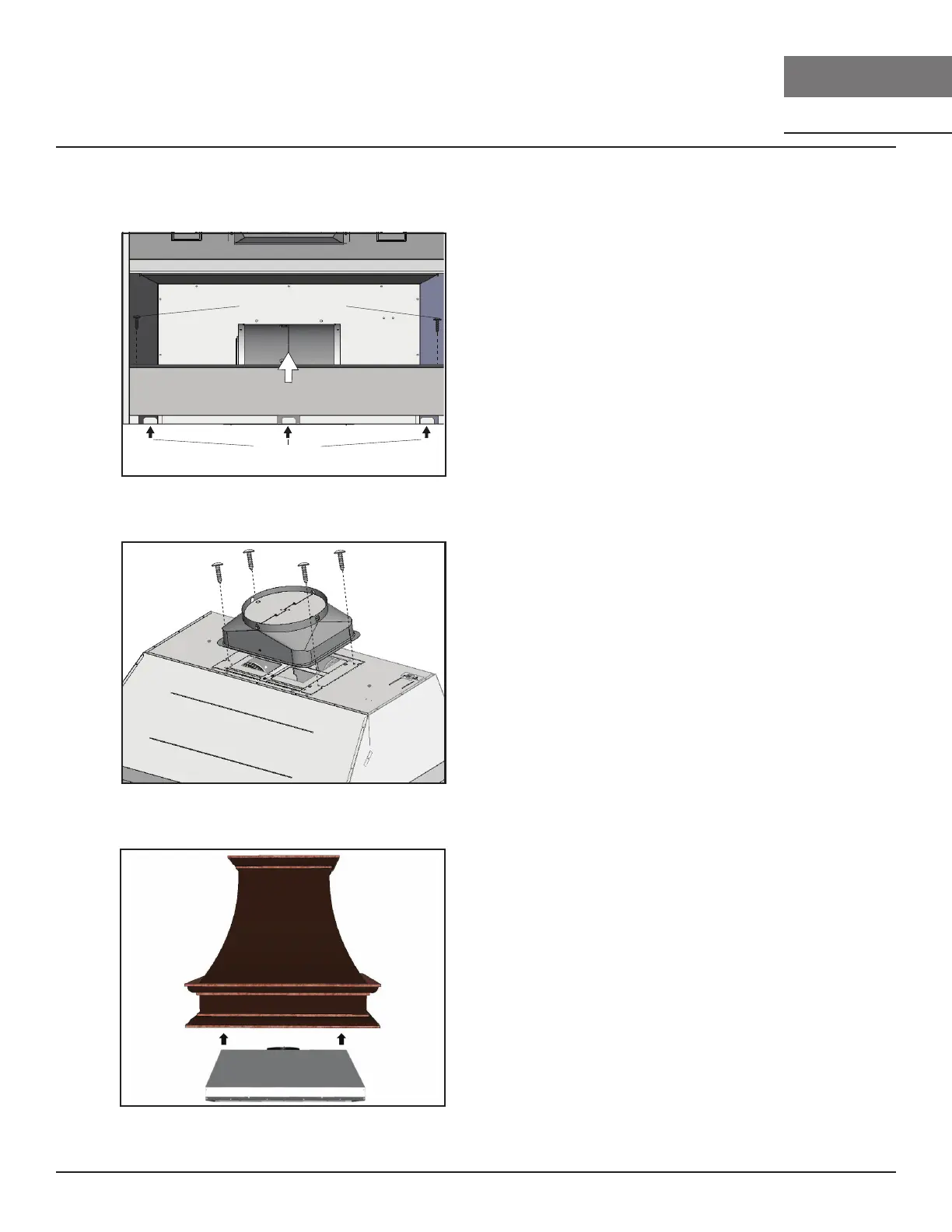

4. Remove bottom panel by: 1)
Removing (2) screws from left and
right sides of bottom panel. 2)
Pulling bottom panel toward front
of liner to release from locking
tabs.
6. Vertical ducting preparation is
complete. Refer to page 14, step
4 to complete installation.
5. Secure 8” or 10” round ducting
collar to top of insert by (4) M4 x
6mm screws.
