Using the Zephyr
Use as a table saw.
The Zephyr has three main parts: The Saw Unit, The Base, and the Work Surface.

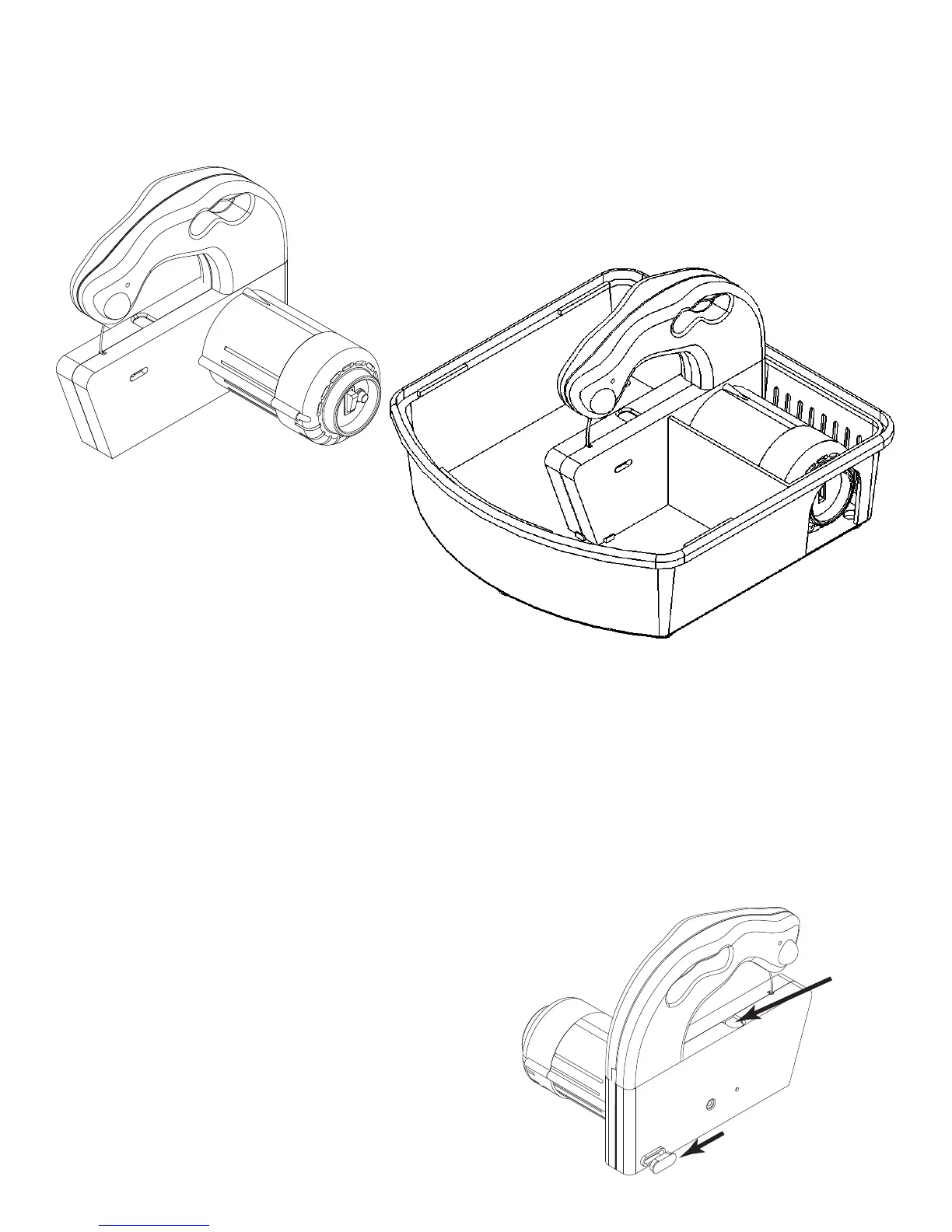

Figure II - Saw Unit
Figure III - Saw
Unit installed in
Base
e Saw is normally used installed in the
base, as shown on the first page. To use the
saw, insert the Saw Unit into the Base as
shown. e Saw Unit will fit into recesses
in the Base, and will be feel securely held
when properly positioned. e power cord
(not shown) should exit through the large
opening in the side of the base. Snap the
clear face shield in place on the front of
the saw as shown on the first page. NEVER run the saw in the table mode with the Water Plug installed (see
Figure IV).
Fill the base with tap water until the level reaches the mark provided on the side of the Saw Unit. Place the
Work Surface on the Base, plug in the saw, and you are ready to cut.
e saw has a round blade which means that all parts of the blade surface cut equally well. You can cut
very intricate shapes by simply pushing the glass in the direction that you want to cut. A few minutes of
experimentation will give a good feel for the versatility of this saw.
Because the diamonds gradually wear as you cut, you
can get the maximum life out of your blade by using the
omnidirectional cutting ability to spread the wear around
the surface of the blade. When you notice that the cutting is
becoming slower and that you have to push noticeably harder
in order to cut, you should consider installing a new blade.
Use as a hand-held saw.
If you wish to use the Zephyr as a hand-held saw, remove the
Saw Unit from the base by lifting it up and out.
Figure IV
To Next Page
