Installation Instructions

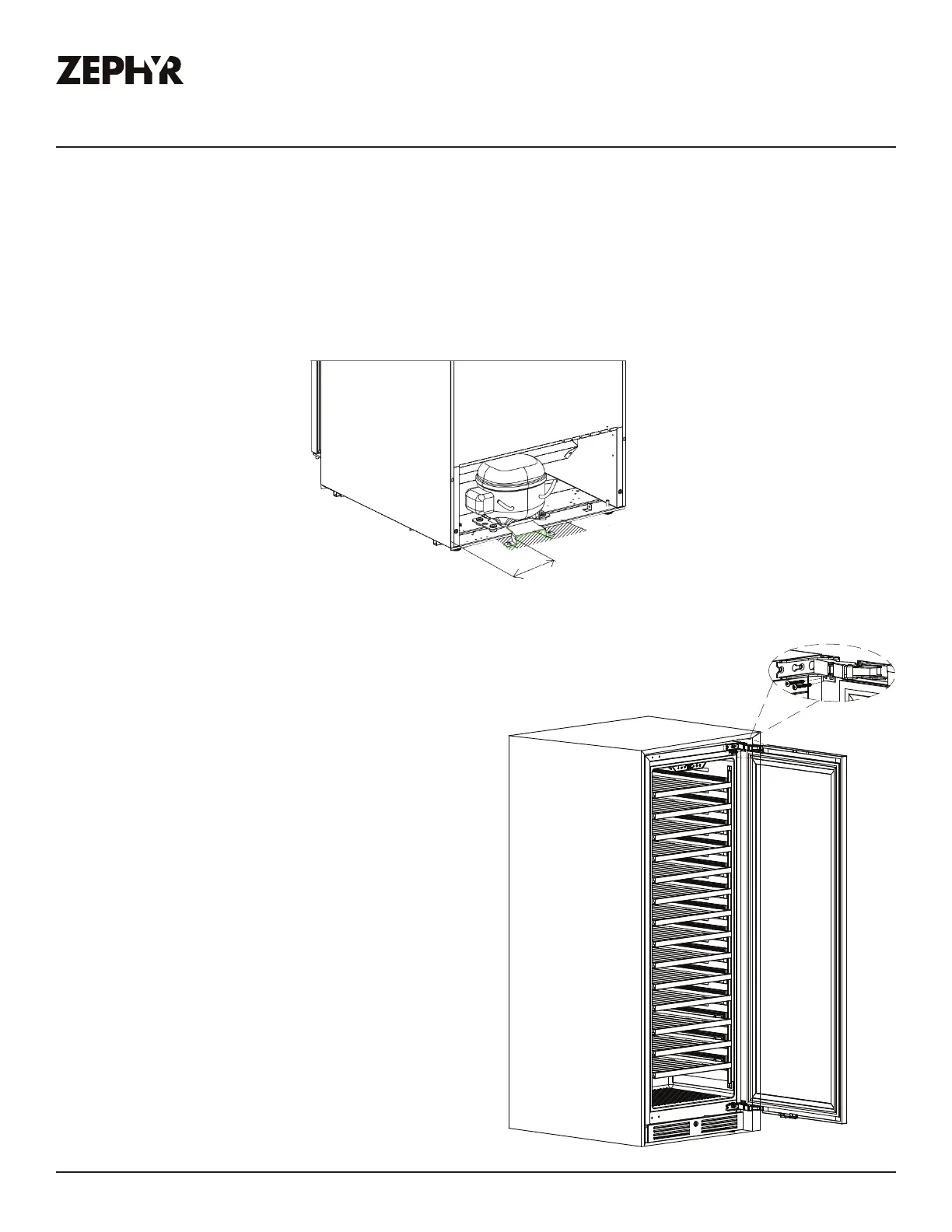

Installing the Floor Anti-tip Bracket
By installing the floor anti-tip bracket, the Hettich hinge installation will not be necessary.
1. Position anti-tip bracket at a minimum of 8” from the left or right of the side of the cooler.
2. Install anti-tip bracket to floor by using the supplied ST5*50 anti-tip bracket screws.
3. Push the cooler back into anti-tip bracket making sure the bracket overlaps the cooler bottom.
8”
Installing the Hettich Hinge
With the Hettich hinge installed, the floor anti-tip
bracket will not be necessary. Inserting screws
through the hinge into adjacent cabinets helps
prevent the cooler from moving and keeps it aligned
with the cabinetry.
NOTE: The Hettich hinge installation is only
applicable for built-in installation. For free-
standing installation, use the floor anti-tip
bracket.
1. Insert (2) ST4*16 screws into the holes of the
upper hinge and secure them into the cabinet.
2. Insert (2) ST4*16 screws into the holes of the
lower hinge and secure them into the cabinet.
