Zephyr Siena ZSI-E30AS-ES User Manual

14
www.zephyronline.com
Wiring & Fan Curve Diagrams
0.90
1.00
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
2.00
2.10
2.20
2.30
2.40
2.50
2.60
2.70
2.80
Pressure (inAq)
Blower Fan Curve
Model: ZSP
AC Input: 120V, 60Hz
Outlet Diameter: 10in
0.00
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300
Flow rate (CFM)
VOLTS HZ MAX AMPS
120 60 9
USE ONLY TYPE MR16, GU10, 50 W. MAX. HALOGEN LIGHT BULBS.
ZSP-E42AS
ZSP-E48AS

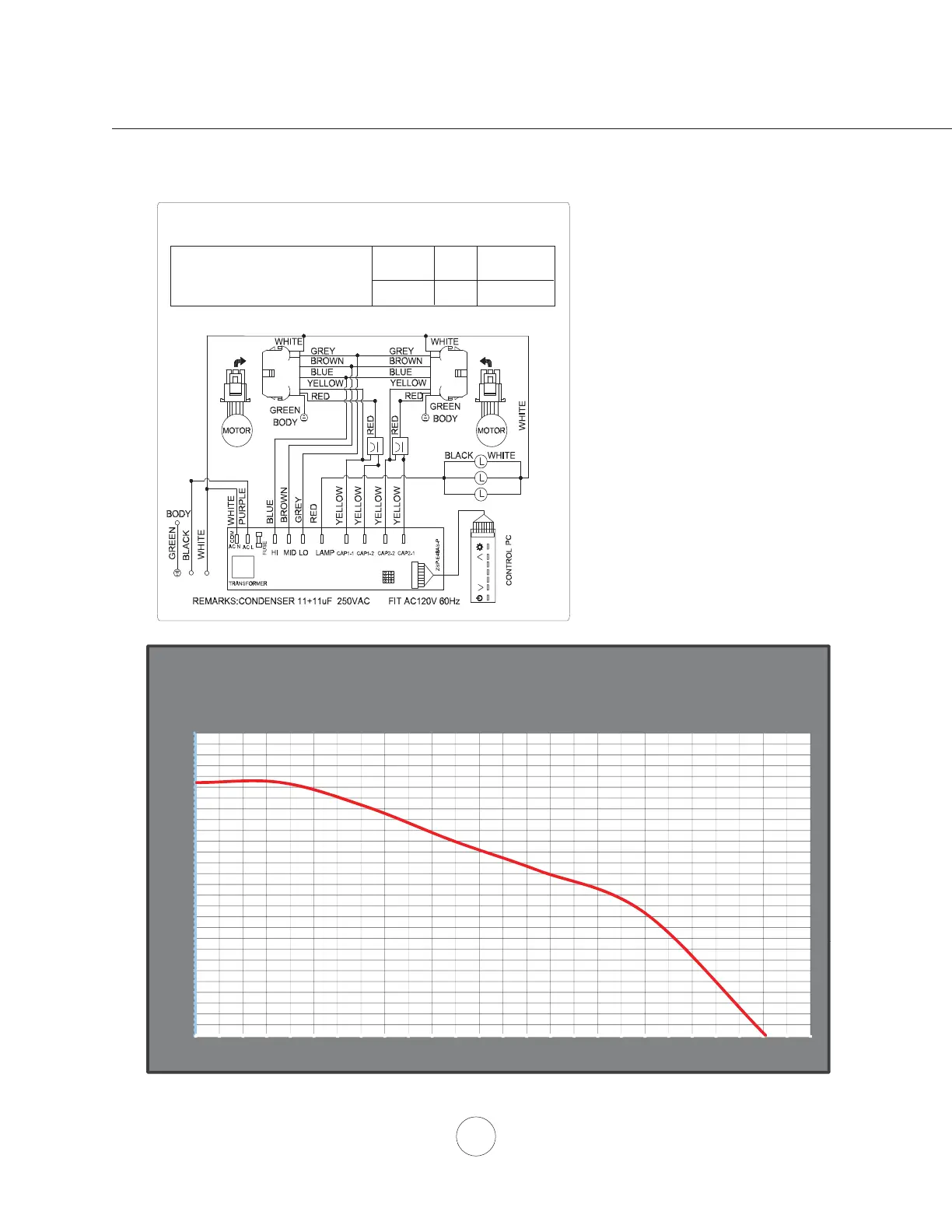

CIRCUIT DIAGRAM
x 2
