Zero ARB User Manual

10 | P a g e
6.5 Two way reversible and removable lid
The ARB ZERO fridge freezer range comes with a removable lid. The 60L, 69L, 73L, 96L
and 105L come with a removable and reversible lid.

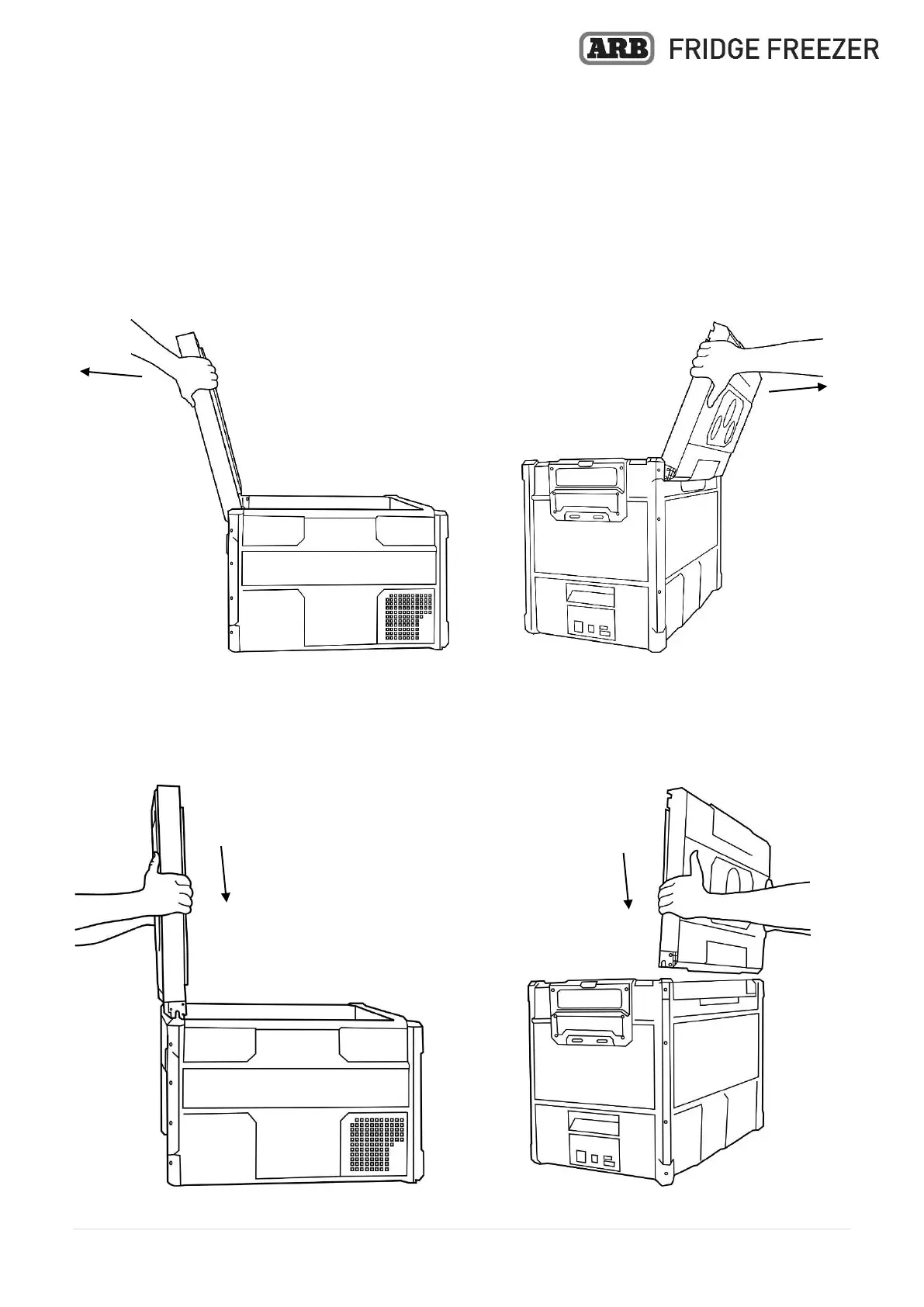

To remove the lid, open the lid fully, then over extend, pushing the lid past it vertical
position to remove. Please see below Figure 8 for the end opening lids, and Figure 9
for side opening lids.
FIGURE 8. FIGURE 9.
To insert the lid, align the lid end sockets with the fridge hinge pins. Push the lid sockets
into the fridge pins and press down firmly. The lid will snap into place. Please see below
Figure 10 for the end opening lids, and Figure 11 for side opening lids.
FIGURE 10. FIGURE 11.

Zero ARB Specifications

General

Brand	Zero
Model	ARB
Category	Freezer
Language	English
