INFINITY 8 INSTALLATION MANUAL
Approved Document No. GLT-201-7-1 PAGE 6
Issue: 1.6 Author: NRPJ Date: 27/7/2012

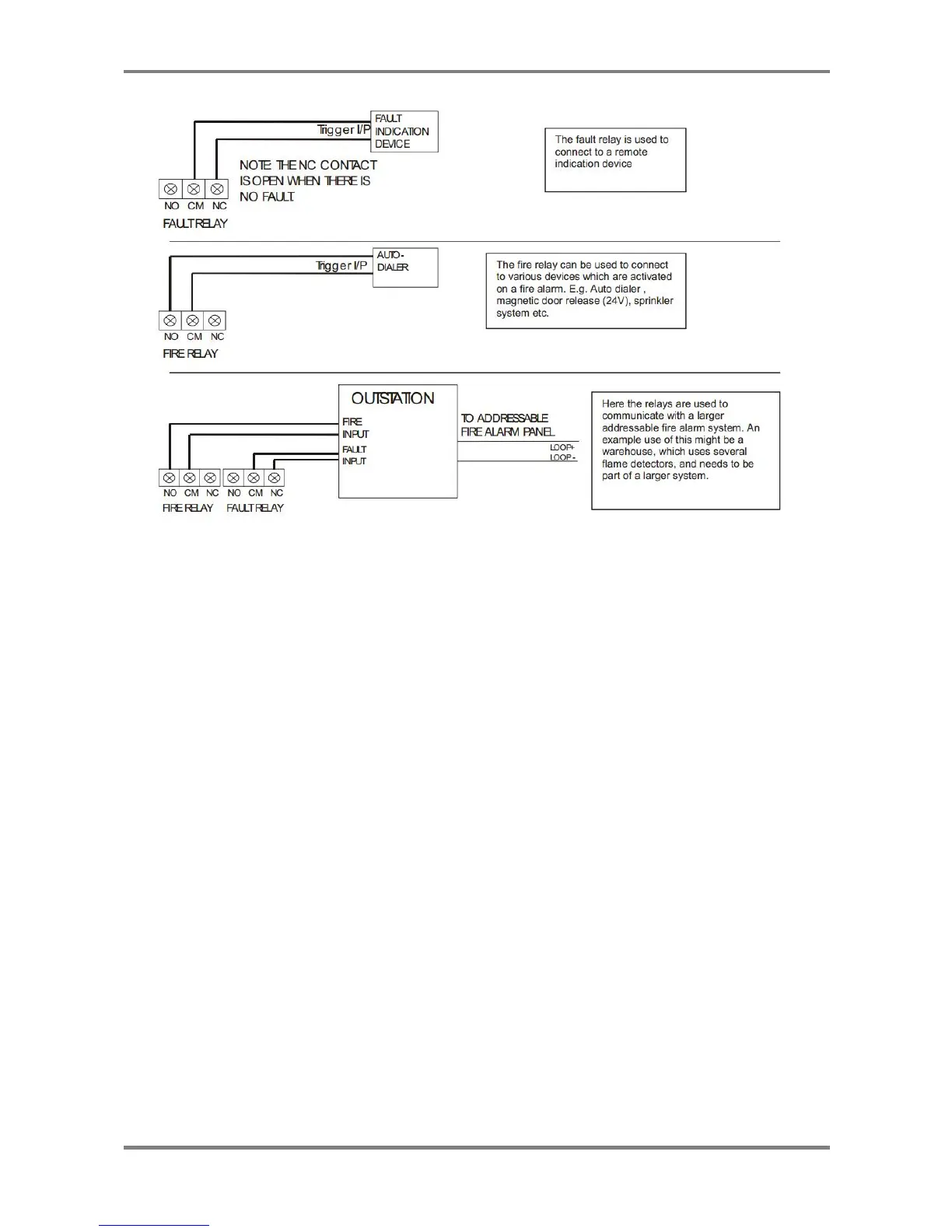

The termination for the above inputs must be as indicated on the main PCB (See page 15). The Earthing of the cable screens should
be as shown on page 9.
