Zetor UTILIX HT 55 - UTILIX HT 45; UTILIX HT 55 Cabin Wiring Diagram (3)

UTILIX HT 45 / UTILIX HT 55 Cabin wirin
g
dia
g
ram
(
3
)
U18N130

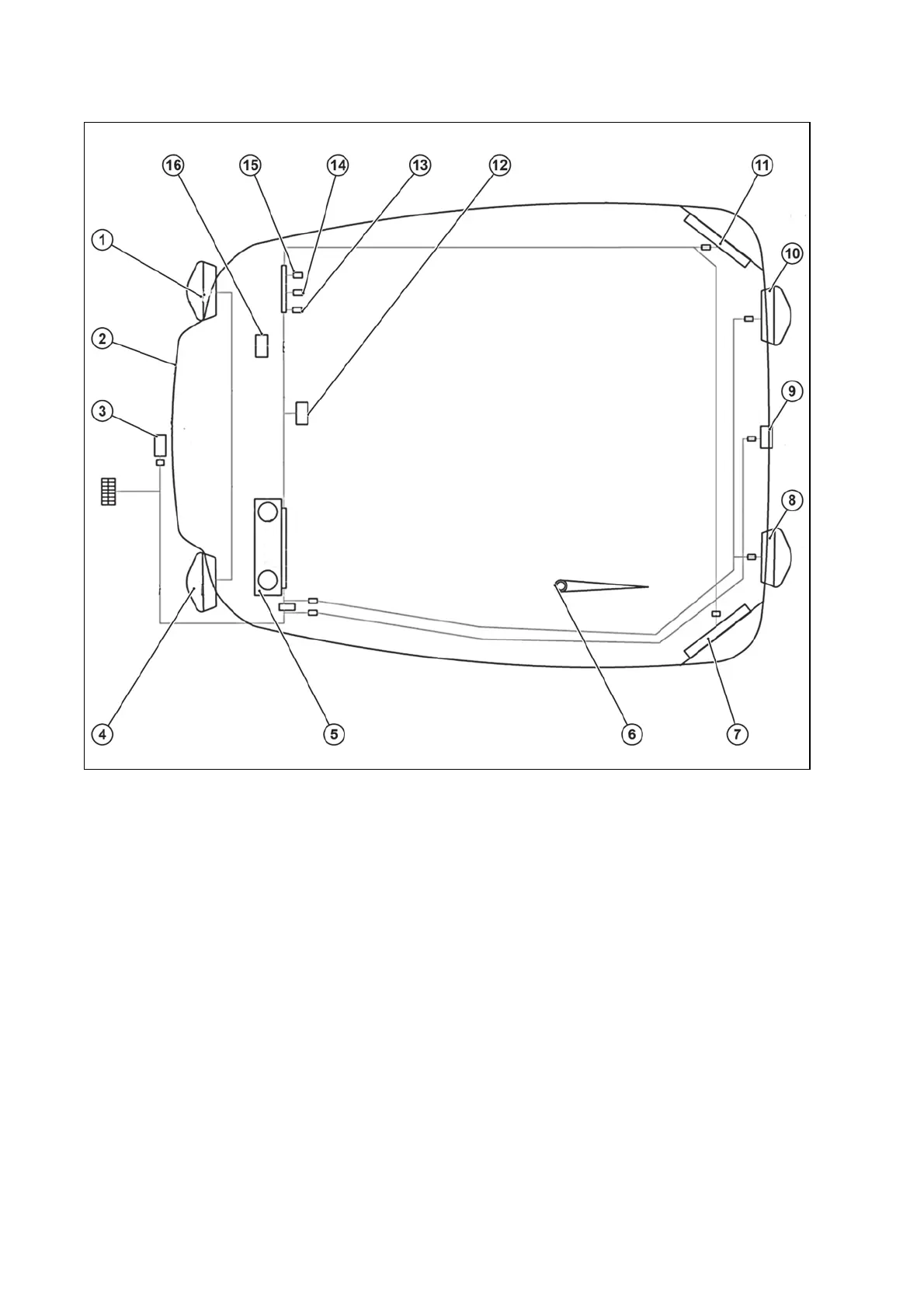

1 - Front working lamp (RH)
2 - E/V unit
3 - Front wiper
4 - Front working lamp (LH)
5 - Audio
6 - Antenna
7 - Speaker (LH)
8 - Rear working lamp (LH)
9 - Rear wiper
10 - Rear working lamp (RH)
11 - Speaker (RH)
12 - Interior light
13 - H/T S/W
14 - A/C S/W
15 - Blower S/W
16 - Relay box
WIRING DIAGRAM
145
