The gearbox can be supplied with or without optionals (oil cooler, flexible coupling, brackets, trolling
valve).
Gearboxes are supplied without oil.
POS.
DESCRIPTION
1
2
3
4
5
6
7
8
Oil filter
Oil pump
Output shaft
Control valve
Drain plugs
Valve control lever
Pressure connector pump M14x1,5
Oil cooler
POS. DESCRIPTION
9
10
11
12
13
14
15
Temperature connector M 22
Strainer / Oil filter
Filler plug
Front half housing
Rear half housing
Oil dipstick
1/8 NPTF pressure connector
(MA-RM1/8NPTF)
Tab. 1
The gearbox must be filled with oil and the oil level checked before use. (see MAINTENANCE section)
Using the gearbox with insufficient oil could damage the gears.
Too much oil could cause leakages through the gaskets and breather and considerably increase the
running temperature.
Under normal conditions, the drive should be reversed when the engine is idling.
In emergencies, the drive can be reversed with the engine running at maximum speed.
Repeatedly reversing the drive with the engine running at maximum speed will considerably
shorten the life of the clutches
Make sure the engine and propeller are at a standstill before carrying out any kind of operation
on the gearbox.

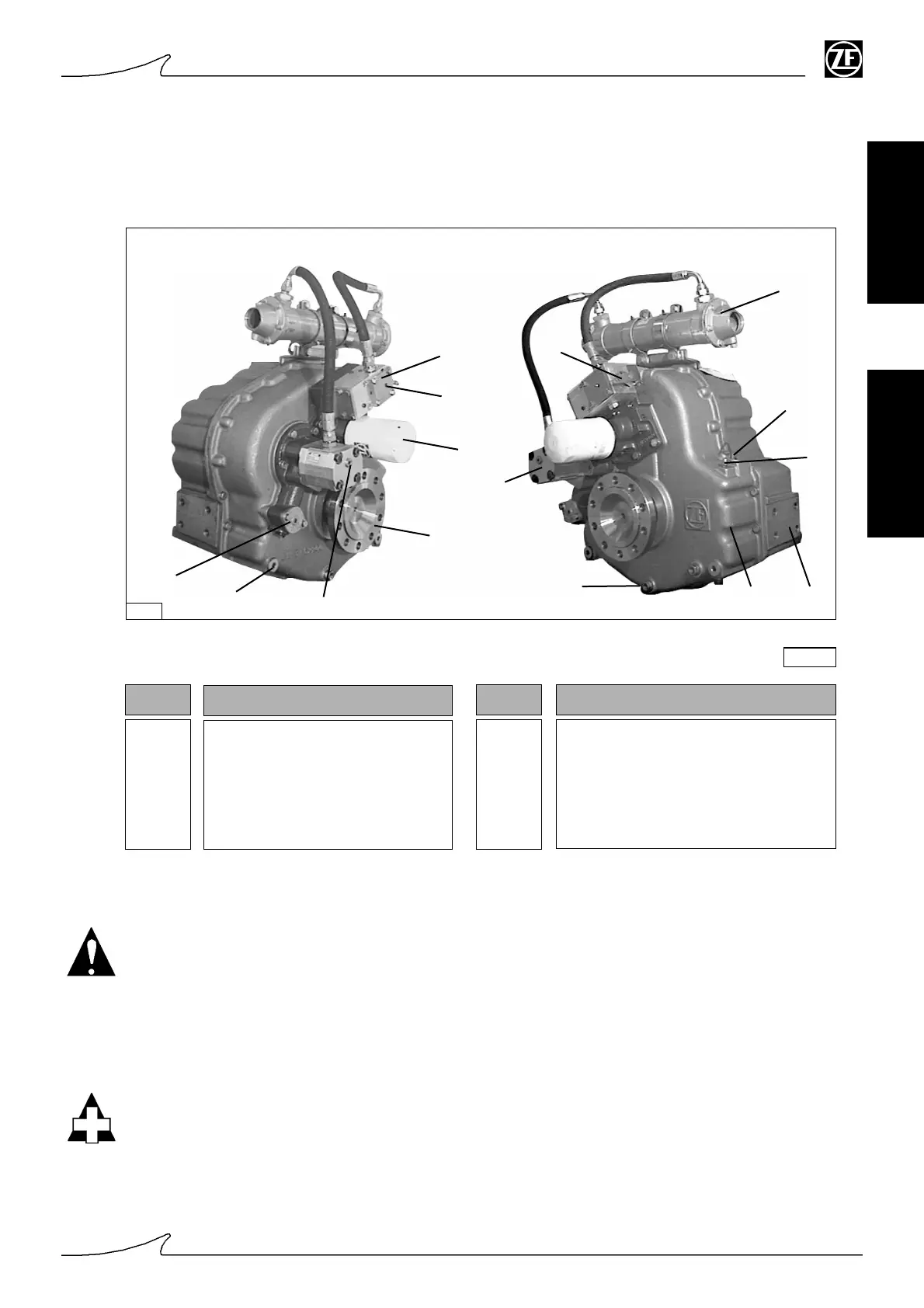

Fig.5
ZF 311 - ZF 311A
4
15
1
3
9
10
7
2
6
8
5
13
12
11
14
