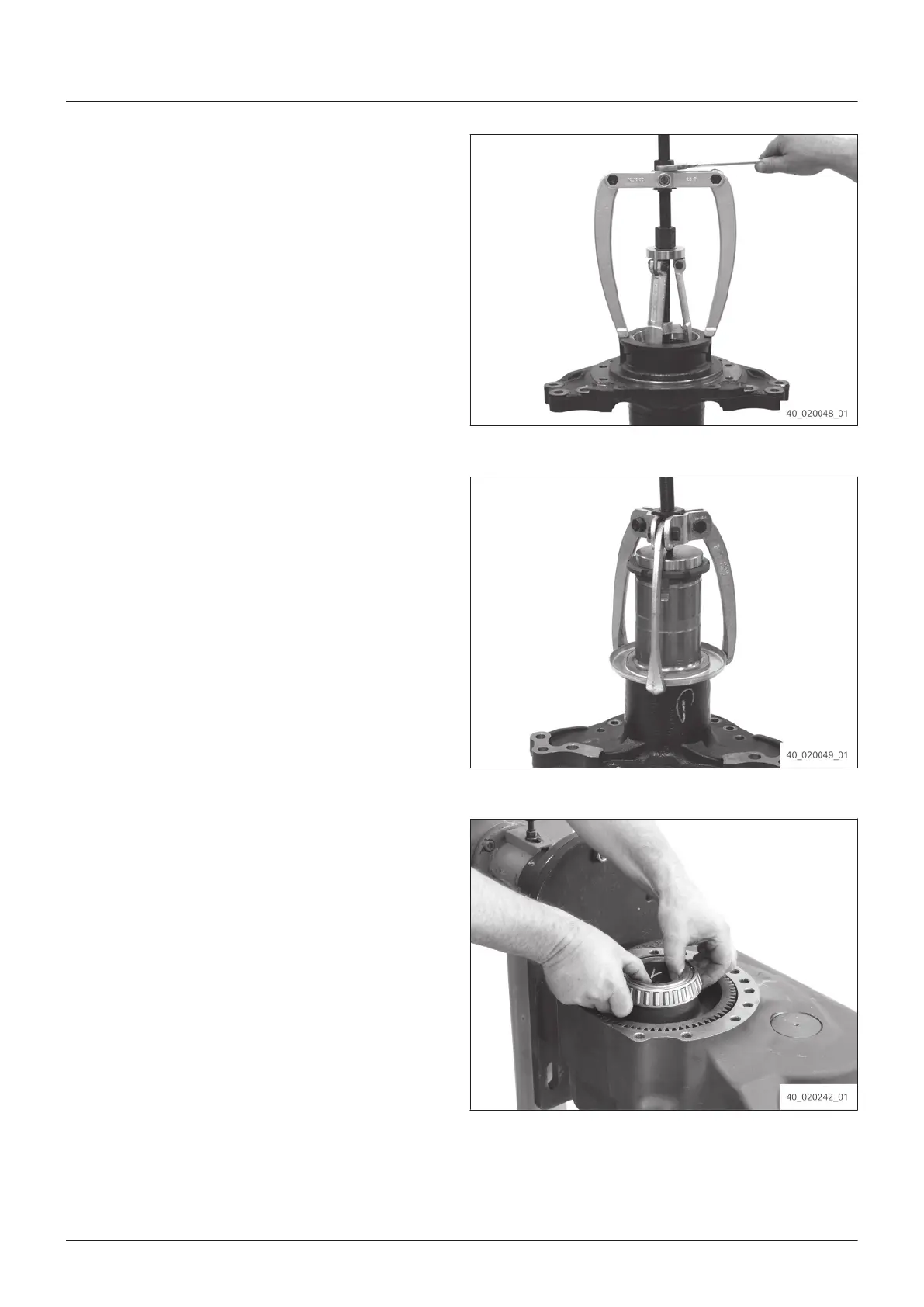

13. Use 5870.300.009 [Extracting device] and
5870.300.019 [Extr
acting device] to pull the
bearing inner ring out of the hub carrier.
Fig. 60
14. Use a three-armed puller to pull the screen
shee
t from the hub carrier.
Fig. 61
15. Remove the output gear from the portal
housing.
Fig. 62
Dismantling
52
EN 4472.751.001 - 2015-11
