Mainboard User's Manual Page 49
J PCI Add-In Board Connector's
K ISA Add-In Board Connector's
The Mainboard provides four 32-bit PCI 2 .1 compatible expan-
sion slots and two 16-bit ISA expansion slots.

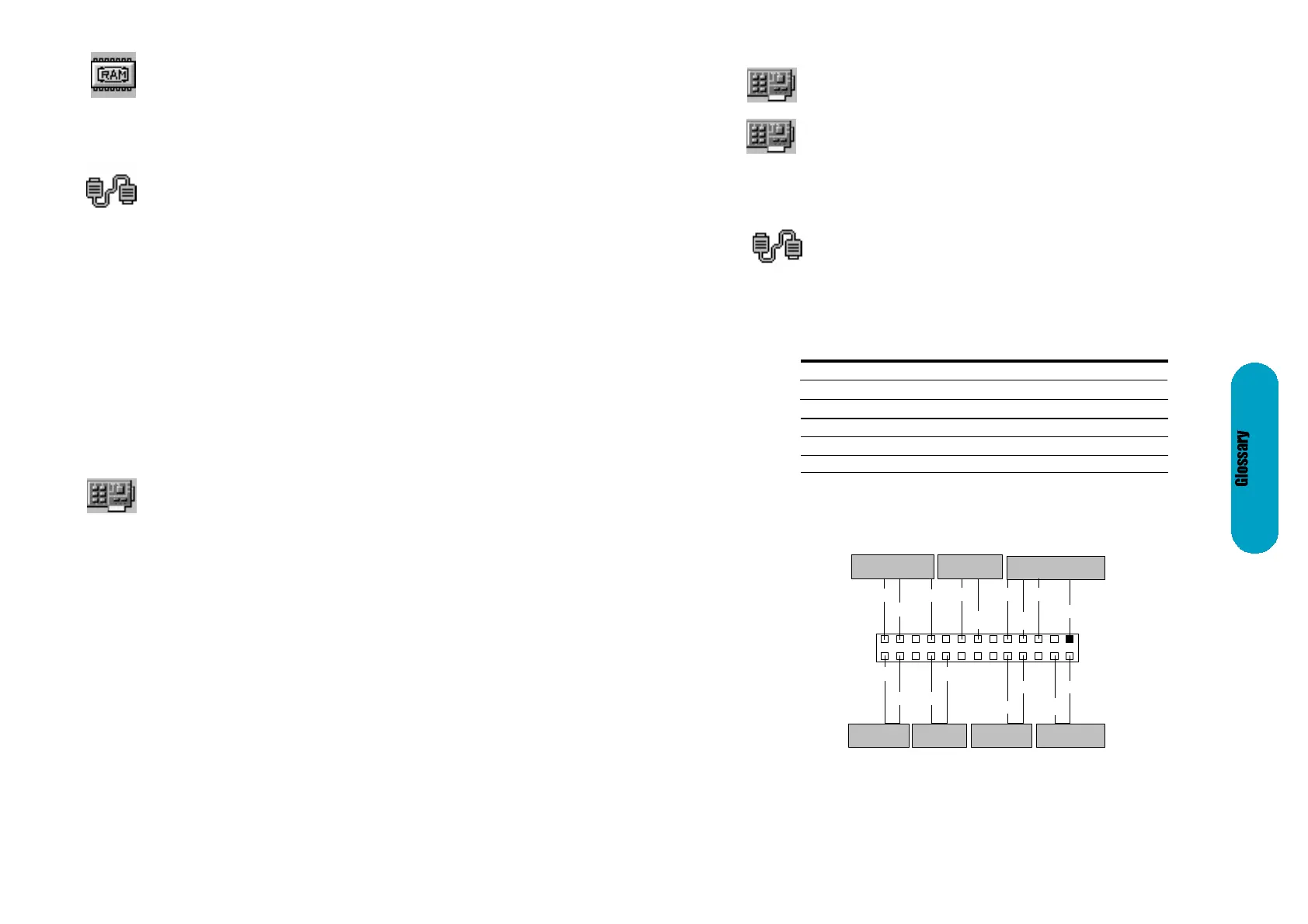

M Front Panel Function Connector's
The Mainboard integrates all system front panel functions into
a single on-board 26-pin connector, JP9. These include con-
nections for the following features:
Function Connector Pin-Out Label
System Reset RESET
Power LED / Keylock KEYLOCK
Hard Drive Activity LED IDE LED
System Speaker SPEAKER
Soft-Touch Button Power On/Off SW ON
Turbo LED TBLED
External Power Saving Control (optional)EXTSMI
KEY
LOCK
KEYLOCK
SPEAKER EXTSMI
TBLED RESET SW ON IDE LED
13
26 14
GND
GND
VCC
SPKR
PW LED
GND GND
EXT
SMI
GND
VCC RST
GND
PUSH ON
GV VR
IDE
LED
ECC
F 3.3V Memory Module Sockets (DIMM)
The Mainboard provides three 168 pin standard DIMM sockets
for installation of 3.3V unbuffered Single or Double Bank
SDRAM modules. For ZX Series, two DIMMonly.
G Serial COM1, Serial COM2 and Parallel Port Connector's
The ATXMainboard provides two serial port connector's and
one parallel port connector. Based on the ATX standard, (2) 9-
pin serial ports and (1) 25-pin parallel port are now built on the
mainboard back panel. This design makes your mainboardts
installation easier. The parallel port can be BIOS configured into
standard (SPP) mode, Enhanced Parallel Port (EPP) mode, and
a high speed Extended capabilities Port (ECP) mode. EPP
Mode requires a driver provided by the peripheral manufacturer
in order to operate properly.
The ATMainboard provides two 10-pin serial ports and one 26-
pin parallel port pin Headers for Cable are now built on the
mainboard.
H Accelerated Graphics Port (AGP) Connector
The Mainboard provides an AGP slot compatible with the
Accelerated Grahics Port specification. AGP compliant video
cards offer a much higher throughput than equivalent PCI bus
video cards. PCI currently only supports a 33 Mhz bandwidth,
and can transport at peak rates up to 133 MB/s over its 32 bit
data bus. AGP operates at a 66 Mhz bandwidth which enables
a peak rate of 266 MB/s in what is known as ‘X1’ mode. Using
‘X2’mode, the peak transport rate can go as high as 532 MB/s.
I LITHIUM BATTERY
A 3V, CR-2030, Lithium battery is installed on the on-board
battery socket. This battery is sued to supply the CMOS RAM
backup power during system powered-off. Danger of explosion
if battery is incorrectly replaced. Therefore, if you have any dif
ficulties, please consult to the technical personnel.
