ZiLOG S3F8S19

UM026803-0816 Reset Circuit
S3F8S19 Development Kit
User Manual
14
Reset Circuit
The reset circuit features a 100 KΩ pull-up resistor R6 and SW1. This circuit resets the
S3F8S19 MCU when SW1 is pressed. See Figure 15 for a representation of the reset cir-
cuit.
ISP II Connector
The ISP II connector (J6) provides an interface between the S3 Flash ISP II tool and the
S3F8S19 device. See Figure 16 for an illustration of the ISP II connector.

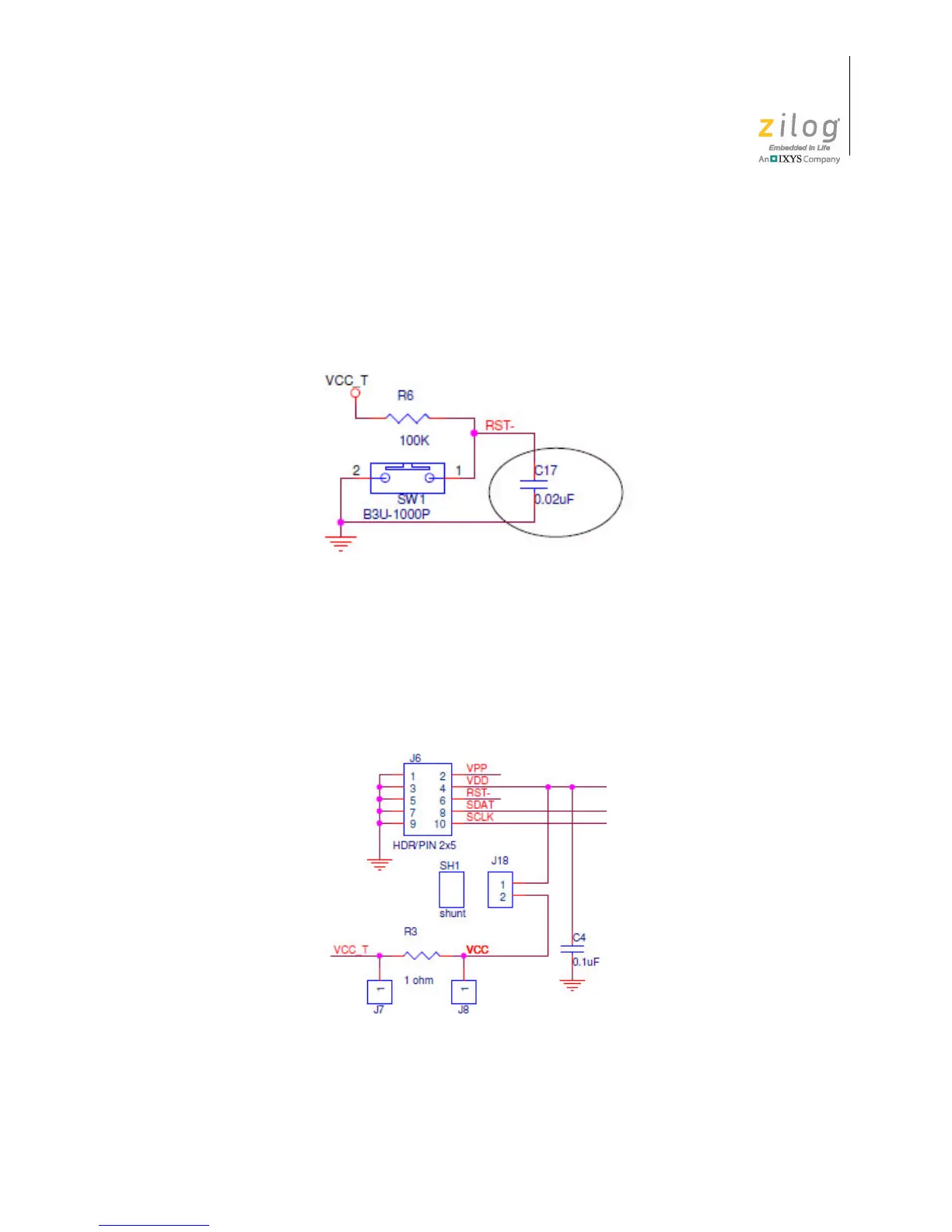

Figure 15. The Reset Circuit
Figure 16. The ISP II Connector
