15
LCD
The VIM-404-DP-RC-S-HV LCD manufactured by Varitronix Ltd. is a 20-pin module

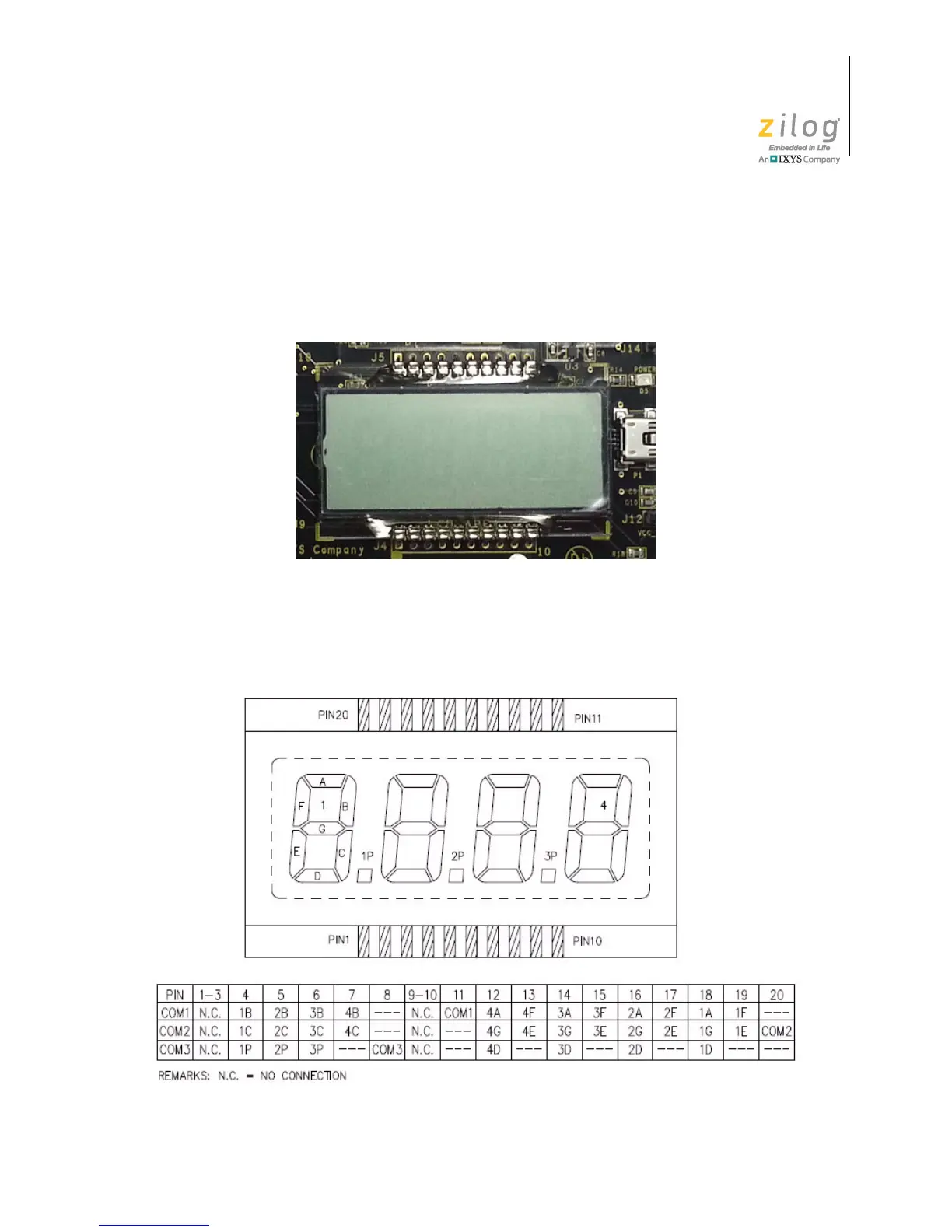

seated on both J4 and J5. Figure 17 shows an image of this LCD.
This four-digit LCD is activated by selecting the segment of each digit that must light up.
Figure 18 shows the LCD pin configuration and assignments.
Figure 17. LCD
Figure 18. LCD Pin Configuration and Assignments
