UM026803-0816 Features
S3F8S19 Development Kit
User Manual
2
Figure 1 shows the contents of the S3F8S19 Development Kit.
Features
The S3F8S19 Development Kit includes the following key items.
•
S3F8S19 Development Board, which contains the following features:
– S3F8S19 48-pin QFP MCU operating at 12 MHz, with 32 KB of internal Flash
memory and 2 KB of internal RAM memory
– USB interface to supply power to the board and used as a PC virtual COM port
with the S3 Monitor and Boot Loader libraries
– LCD module
– Buzzer/Speaker
– UART Connector footprint
– Test Points footprint for all pins of MCU
– MCU current measurement Test Points J7 and J8
– Power Supply level adjustable with potentiometer R16
•
S3 Flash In-System Programmer II
•
ZDS II software, samples, and documentation available free for download
– Sample programs

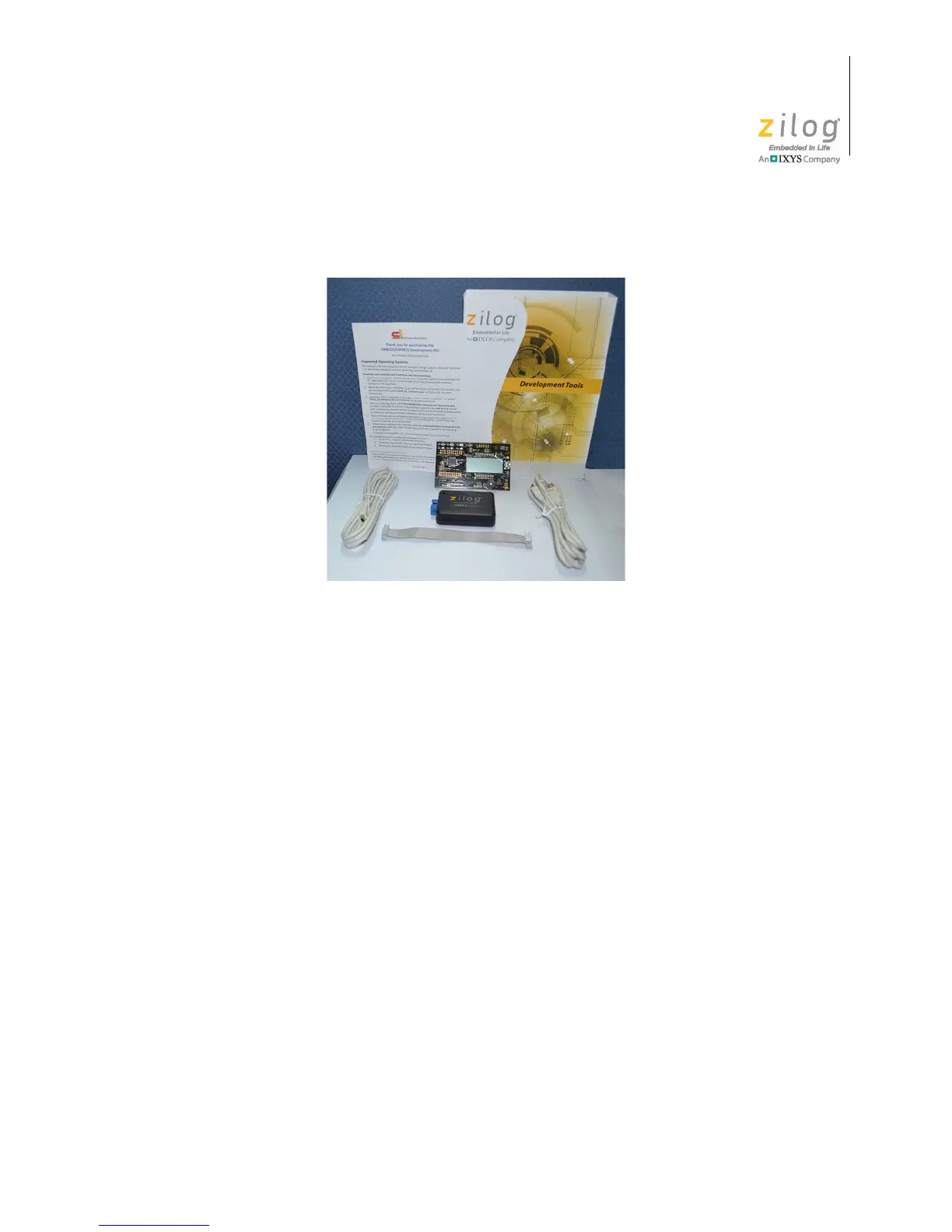

Figure 1. The S3F8S19 Development Kit
