UM026803-0816 Start the S3F8S19 Ledblink Sample Program
S3F8S19 Development Kit
User Manual
6
Start the S3F8S19 Ledblink Sample Program
The S3F8S19 Development Kit includes a sample program that demonstrates an LED
blinking application. To start the S3F8S19 Ledblink sample program, observe the follow-
ing procedure.
1. Launch ZDS II by navigating from the Windows Start menu to
Programs → Zilog
ZDS II
– S3 <Version> → ZDS II – S3 <Version>.
2. From the
File menu in ZDS II, select Open Project as indicated in Figure 7, and navi-
gate to the following filepath:
<ZDS Install>\samples\S3F8S19\ledblink_asm

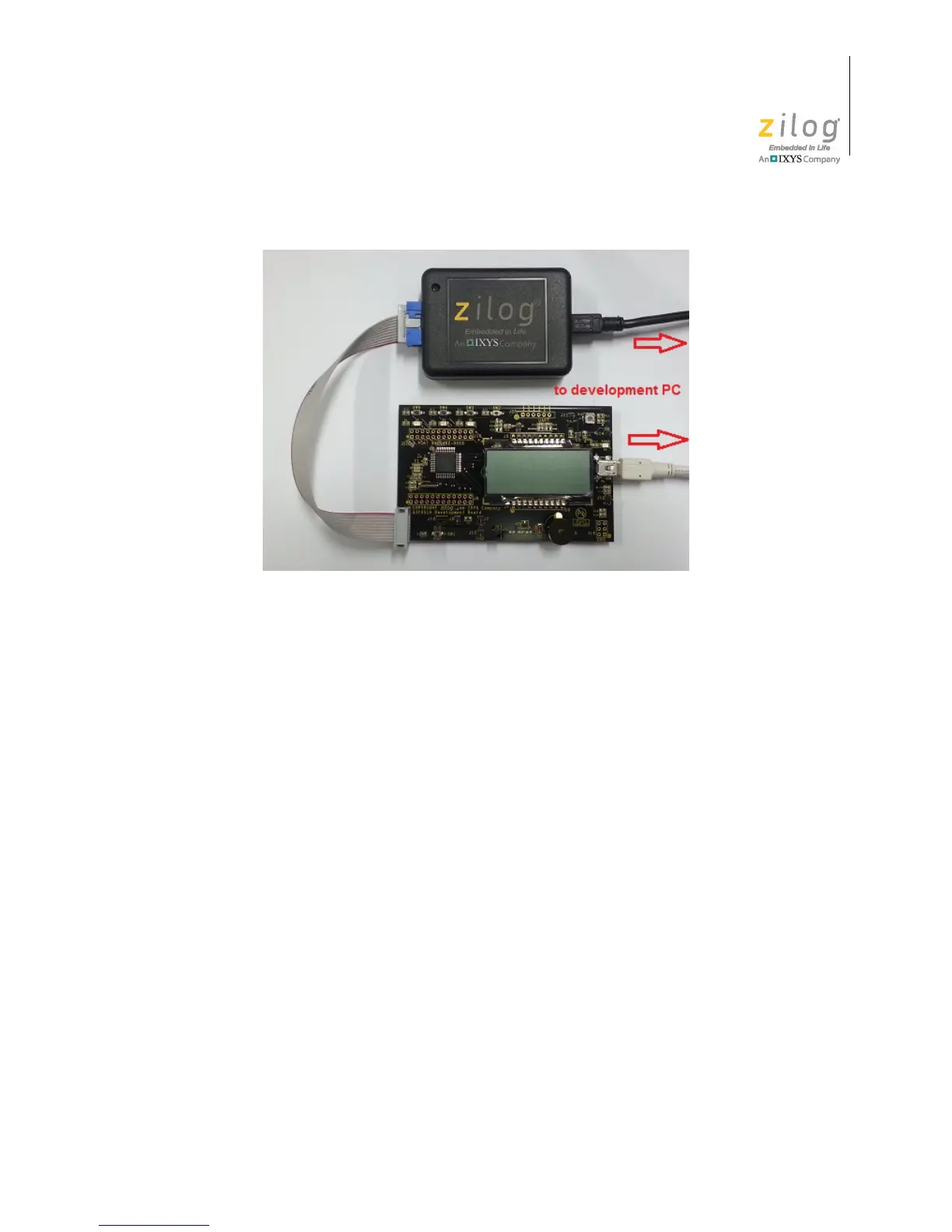

Figure 6. The Completed ISP II and Development Board Assembly
