Page 10 Non-Sound Decoder MX618 - MX638 and Sound Decoder MX640 - MX659
Speaker
Speaker
Function output FO2
Function output FO1
Front headlight
Rear headlight
Common positive (also Cap. pos.)
Motor left
Motor right
Left rail
Right rail
>220 uF
35 V
+ -
blue
Cap. pos.
Cap.
negative

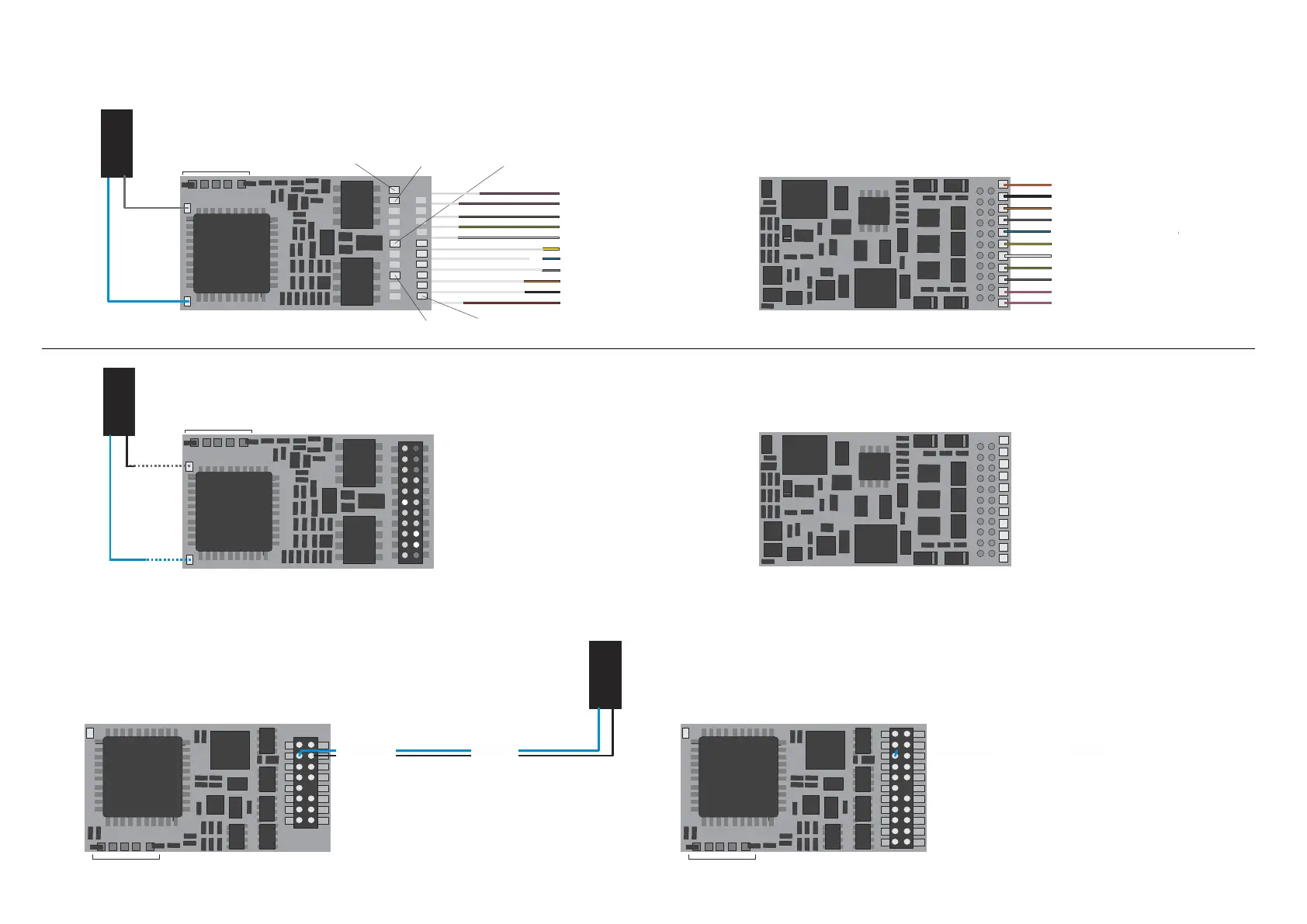

MX 642 Top S id e
Capacitor as power back-up.
brown
green
white
yellow
blue
orange
black
red
+ 5 V
purple
g r a y
Capacitor negative
(This is not the same
as the Ground terminal !)
gray
Attention:
DO NOT
connect this
wire to
Ground !
(is identical to
the common positive terminal)
Program m ing pads,
do not touch !
Function output FO3
SUSI D (FO8, Servo 2)
SUSI Cl (FO7, Servo 1)
Fu. output FO4
Fu. output FO5
Fu. output FO6
Ground
purple
Switch input
MX 642 B o tto m S id e
red
black
orange
gray
blue (+)
yellow
white
green
brown
purple
purple
Right rail
Left rail
Motor right
Motor left
Common positive (also Cap. pos.)
Rear headlight
Front headlight
Function output FO1
Function output FO2
Speaker
Speaker
>220 uF
35 V
+ -
blue
Cap. pos.
Cap.
negative
MX 642D , C To p S ide
Capacitor as power back-up.
gray
Attention:
DO NOT
connect this
wire to Ground !
(is identical to
the common positive terminal)
Program m ing pads,
do not touch !
(connect here if it isnt already wired through the plug)
+ 5 V (200 mA)
Function output FO3
2
1
Common positive
Capacitor negative
Motor connection 1
Motor connection 2
Ground
Left rail
Right rail
Function output FO
Function output FO
Index pin
Speaker
Speaker
Front headlight
Rear headlight
SUSI Data (FO8, Servo 2)
SUSI Clock (FO7, Servo 1)
4
5
6
Switch input
Function output FO
Function output FO
Function output FO
MX 642D , C B o tto m S id e
(= wire side)
ATTENTION:
The decoder can be
plugged in from either
side, depending on
locomotive circuit board.
The SUSI outputs can alternatively be used
as servo, logic level or LED outputs (FO7, FO8);
LED‘s must be connected to Ground
(as opposed to “normal” outputs) !
MX 643P 22 To p S id e (w ith P luX 22 )
Program m ing pads,
do not touch !
The SUSI outputs can alternatively
be used as servo outputs:
FO8
Function output FO
Function output FO
Function output FO
Function output FO
Function output FO
3 Switch input
SUSI Data (Servo 2) SUSI Clock (Servo 1)
ELKO Plus Ground
Motor rechts Front headlight
Motor links Common positive(+)
Schiene rechts ---
Schiene links Rear headlight
1 Speaker
2 Speaker
5 FO4
7 FO6
(Index)
>220 uF
35 V
+ -
Cap.
pos.
Cap.
neg.
(same as
Ground)
MX 643P 16 To p S id e (w ith P luX 16 )
Program m ing pads
do not touch !
The SUSI outputs can alternatively
be used as servo outputs:
SUSI Data (Servo 2) SUSI Clock (Servo 1)
Cap. pos. Ground
Motor right Front headlight
Motor left Common poisitve (+)
Right rail ---
Left rail Rear headlight
1 Speaker
2 Speaker
(Index)
Function output FO
Function output FO
Capacitor as power back-up.
(if one is mounted in loco circuit board, it is usually connected via the plug)
