7. Unplug the front-to-rear wire harness that connects the tiller console to the
rear electronics module. (Figure 16).

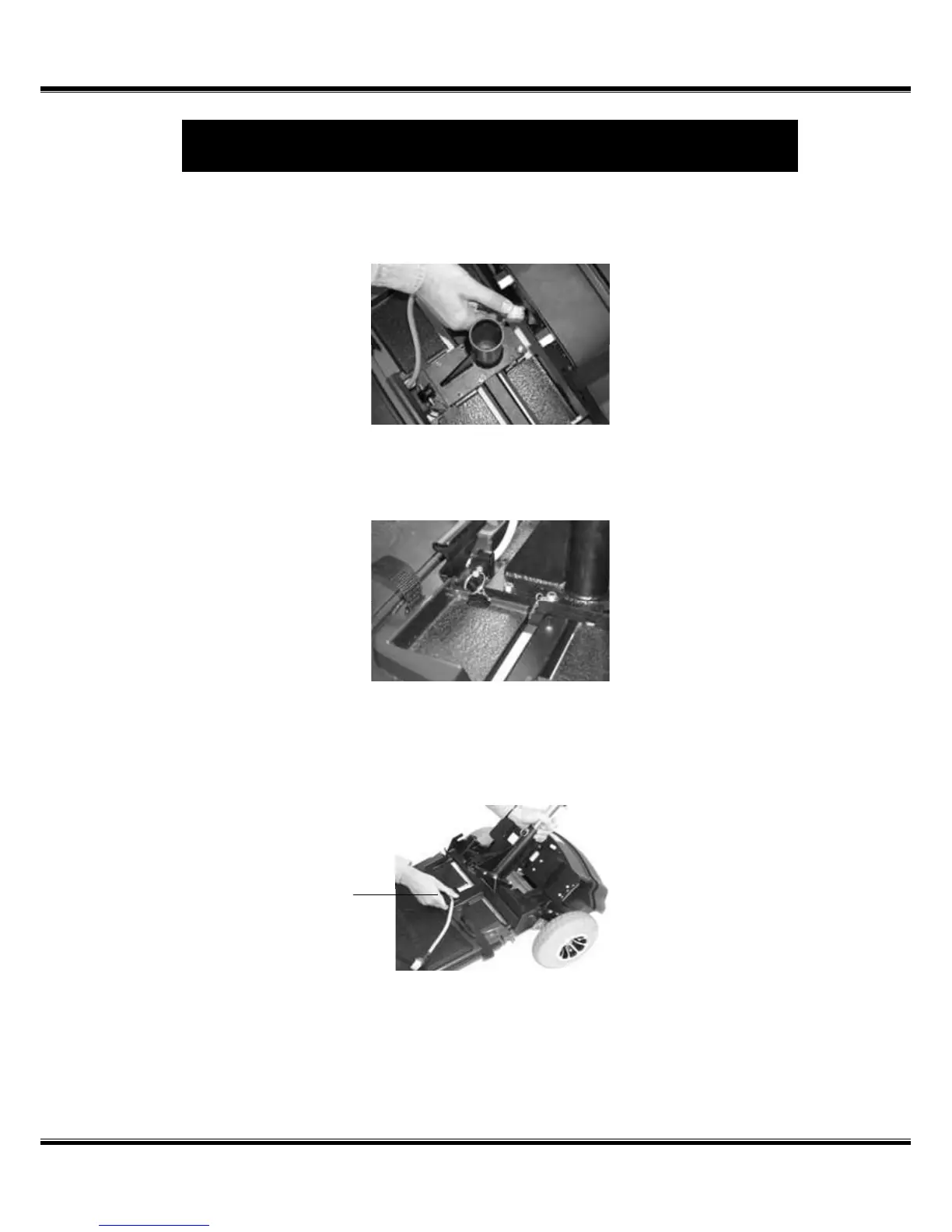

FIGURE 16. FRONT-TO-REAR HARNESS
8. Lift both batteries off the scooter.
9. Remove the detent pin that secures the front and rear sections together.
(Figure 17).
FIGURE 17. DETENT PIN REMOVAL
10. Completely lower the tiller to the center of the scooter chassis. NOTE:
Steer the tiller to the right before lowering it. The tiller will sit slightly
to the left when fully lowered.
Handhold
FIGURE 18. FRAME SEPARATION
11. Pull up on the handhold (located in front section) and push back on the
seat post to gently separate the sections. (Figure 18)
