ASSEMBLY
1. Place the manual freewheel lever in the drive (up) position.
2. Position the front and rear sections of your scooter as shown. (Figure 19)

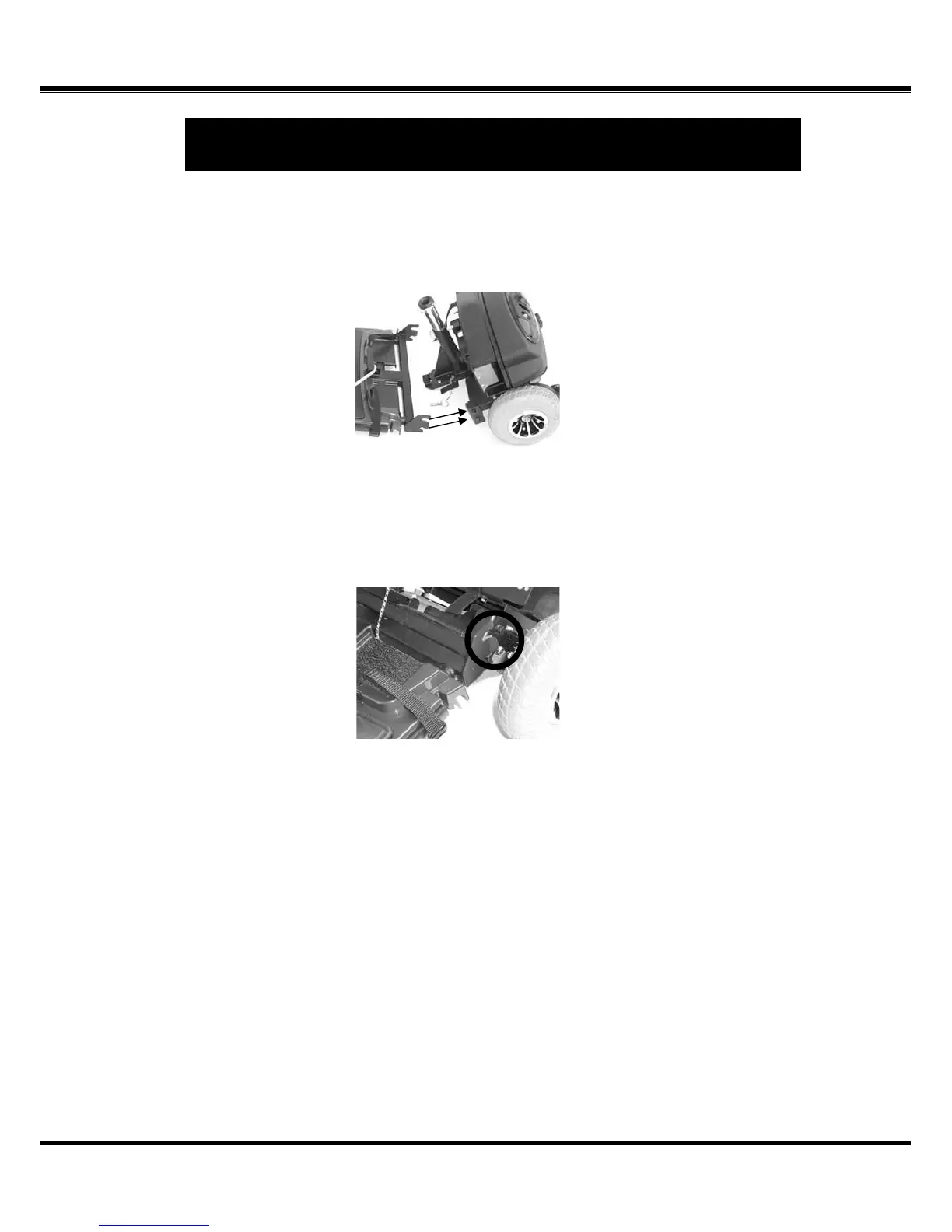

FIGURE 19. FRAME POSITION
3. Align the lower slots on the rear of the front section onto the
corresponding pegs on the front of the rear section. (Figure 20)
4. Gently pull on the seat post on the rear section of your scooter, so the rear
section pivots into place.
FIGURE 20. CONNECTING THE FRAME HALVES
5. Secure the front and rear sections with the ball detent pin.
6. Raise the tiller into position.
7. Plug the front-to-rear harness into the mating plug found on the rear
electronics module.
8. Put the batteries in place and plug the black and white 2-pin battery
harnesses into the rear electronics module.
9. Reconnect the battery straps.
10. Gently place the rear shroud over the seat post.
11. Lower the shroud into place.
12. Carefully lift the seat and slide the seat platform onto the seat pedestal.
13. Rotate the seat until it locks into place.
