7

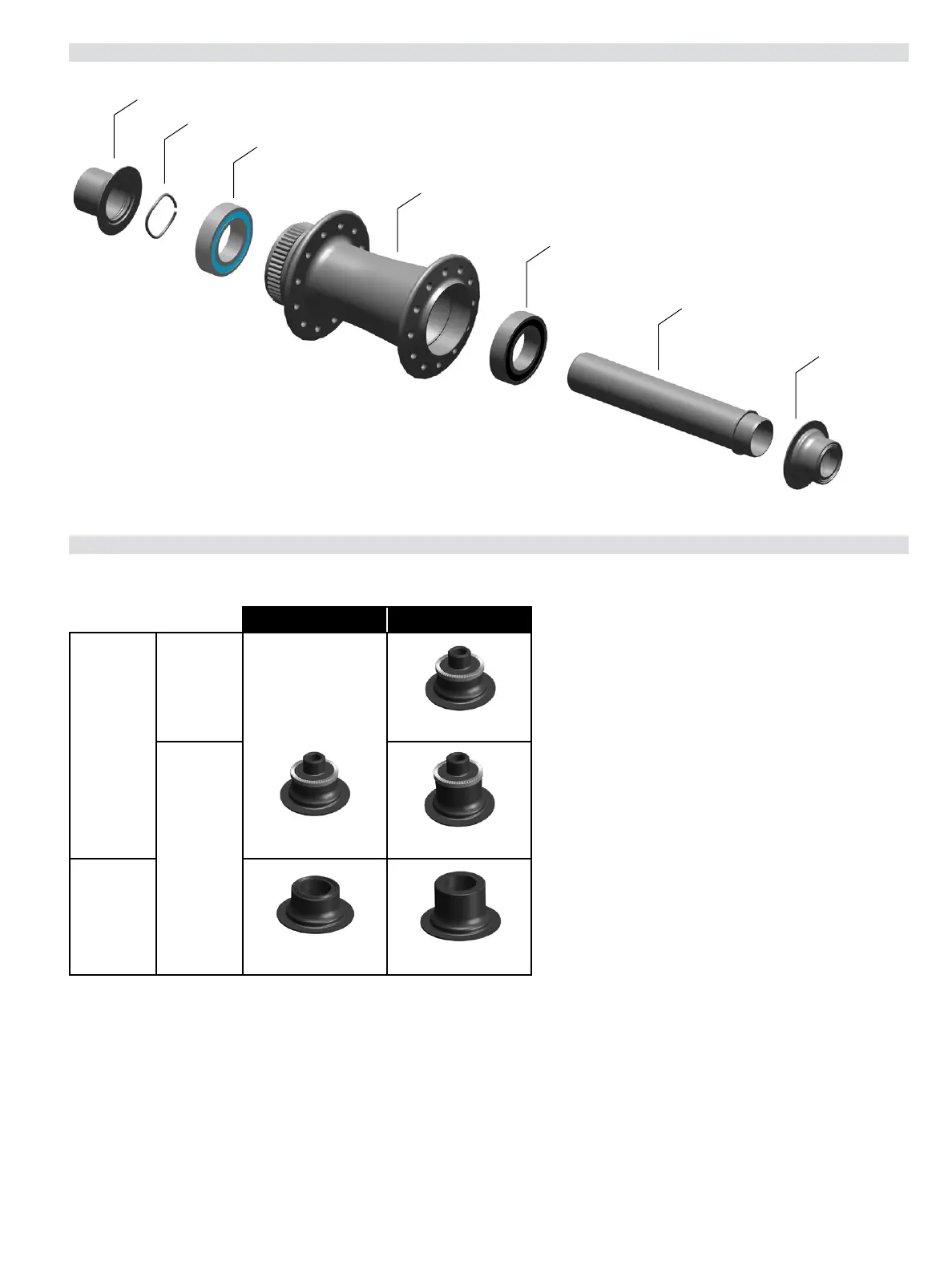

Exploded View - Front Hub
Exploded View - Front Hub
End Cap
W
ave Spring
Zipp 6903/61903 Hub Bearing
Hub Shell
Axle
Zipp 6903/61903 Hub Bearing
End Cap
Front Hub End Caps
The end cap identification number is laser etched onto the end cap.
Drive Side
Non-Drive Side
Quick
Release
Rim Brake
2018-252-000
Centerlock
2018-252-000
2018-270-000
15x100
2018-165-000
2018-267-000
6
8
Table of Contents
Default Chapter
3
Table of Contents
3
Front Hub Service
6
Parts, Tools, and Supplies
6
Exploded View - Front Hub
7
Front Hub End Caps
7
Front Hub Bearing Removal
8
Front Hub Bearing Installation
11
Rear Hub Service
14
Parts, Tools, and Supplies
14
Exploded View - Rear Hub
15
Rear Hub End Caps
15
Rear Hub Bearing Removal
16
Rear Hub Bearing Installation
20
