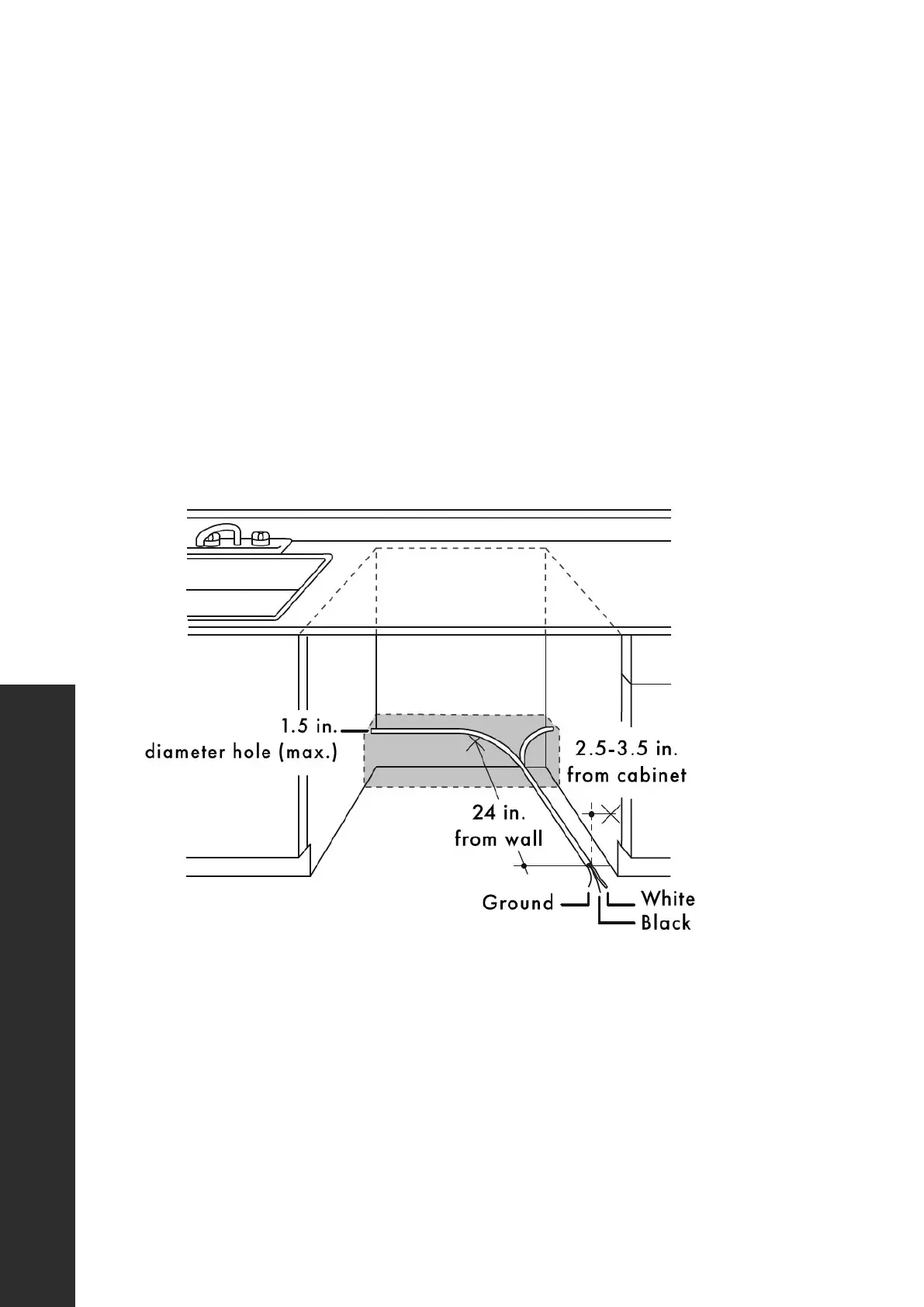

CABINET PREPARATION AND WIRE ROUTING
• The wiring may enter the opening from either side, the rear, or the floor within the
shaded area.
• The electrical connection is on the front right of the dishwasher.
• Drill a 1.5 in. maximum diameter hole to run the electrical cable through the wall
of the cabinet.
• The hole must be free of sharp edges. If the cabinet wall is metal, the hole edge
must be covered with a bushing or rubber grommet.
• Cable direct connections may pass through the same hole as the drain hose and
hot water line, but power cords with plugs must pass through a separate hole.
BEFORE INSTALLATION
9
Electrical Requirements
