INSTALLATION
Date:
Doc.
25 Jan 2005 2:01016B
5900200 PNEUMATIC PUSH BUTTON, EVAC 90, SQUATTING TOILET

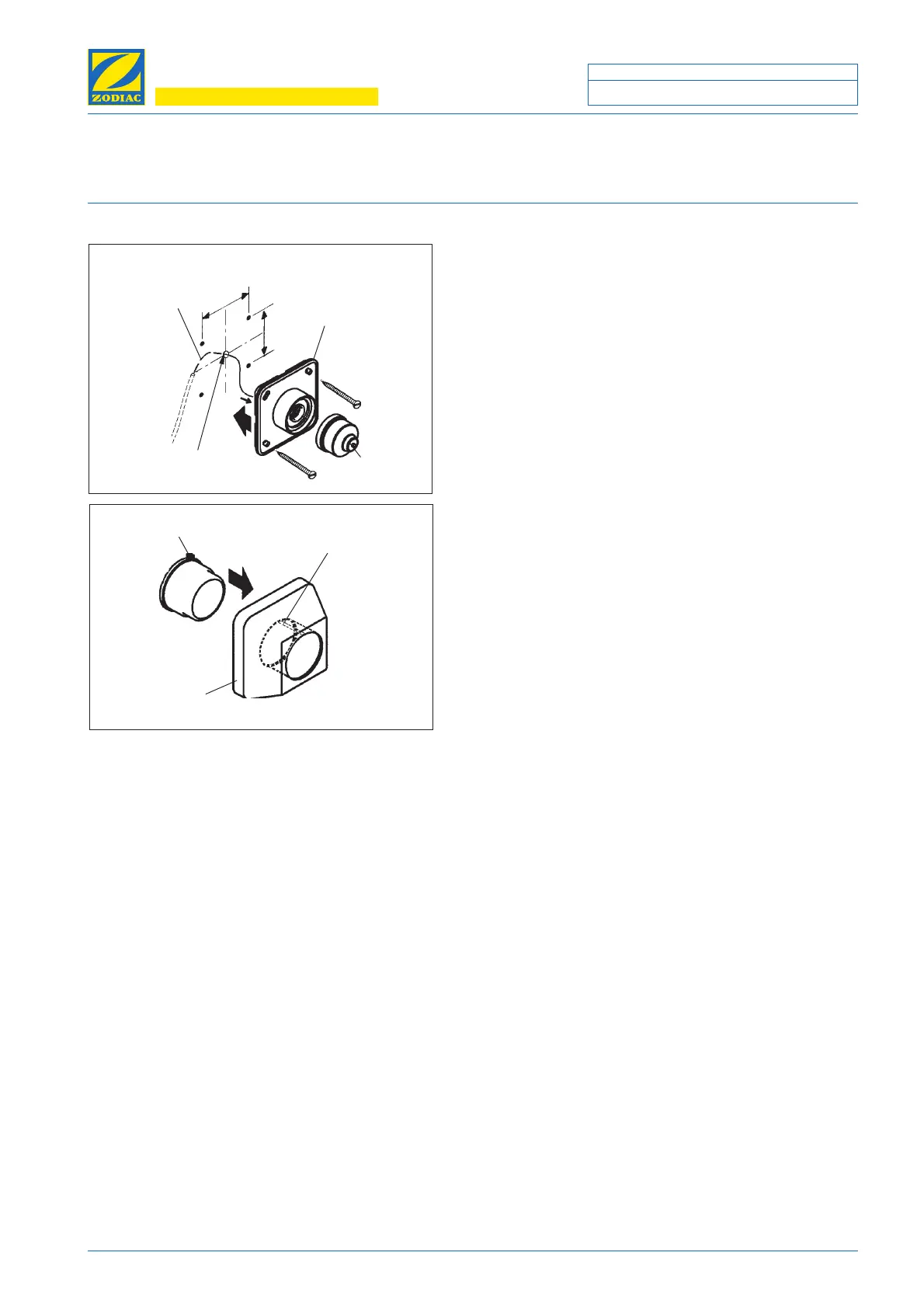

Put the slide guide tap to the groove on a cover.
Snap on the cover and the push button.
Slide guide
Groove
Pneumatic push button installation
Install the plastic hose to the bellow.
(The plastic hose behind the wall)
Install the bottom plate on the wall.
Cover
Bellow
Bottom plate
Plastic hose from
the control
mechanism
Ø 6
53
53
