OPERATION AND MAINTENANCE
Date:
Doc.
25 Jan 2005 3:01054C
5979301 EVAC 90, SQUATTING TOILET
Scheduled Maintenance Program
Every year:
• Change Mini-check valve 5959902 if toilet is connected to the riser pipe.
• Check operation, push button, seat and cover, rinse pattern, discharge pattern.
• Check possible water and vacuum leakage.
• Clean Strainer in water supply.
Every 5 years:
• Change Mini-check valve 5959902 in every toilet.
• Open and clean Water valve filter 5774150.
• Clean Control mechanism air filter 5778600.
• Check operation, push button, seat and cover, rinse pattern, discharge pattern.
• Check possible water and vacuum leakage.
Every 10 years:
• Change Mini-check valve 5959902 in every toilet.
• Change Discharge valve rubbers: Rubber sleeve 5435181 (2pcs), Rubber diaphragm 5435169.
• Change Water valve diaphragm 5774400.
• Open and clean Water valve filter 5774150.
• Clean Control mechanism air filter 5778600.
• Check operation, push button, seat and cover, rinse pattern, discharge pattern.
• Check possible water and vacuum leakage.

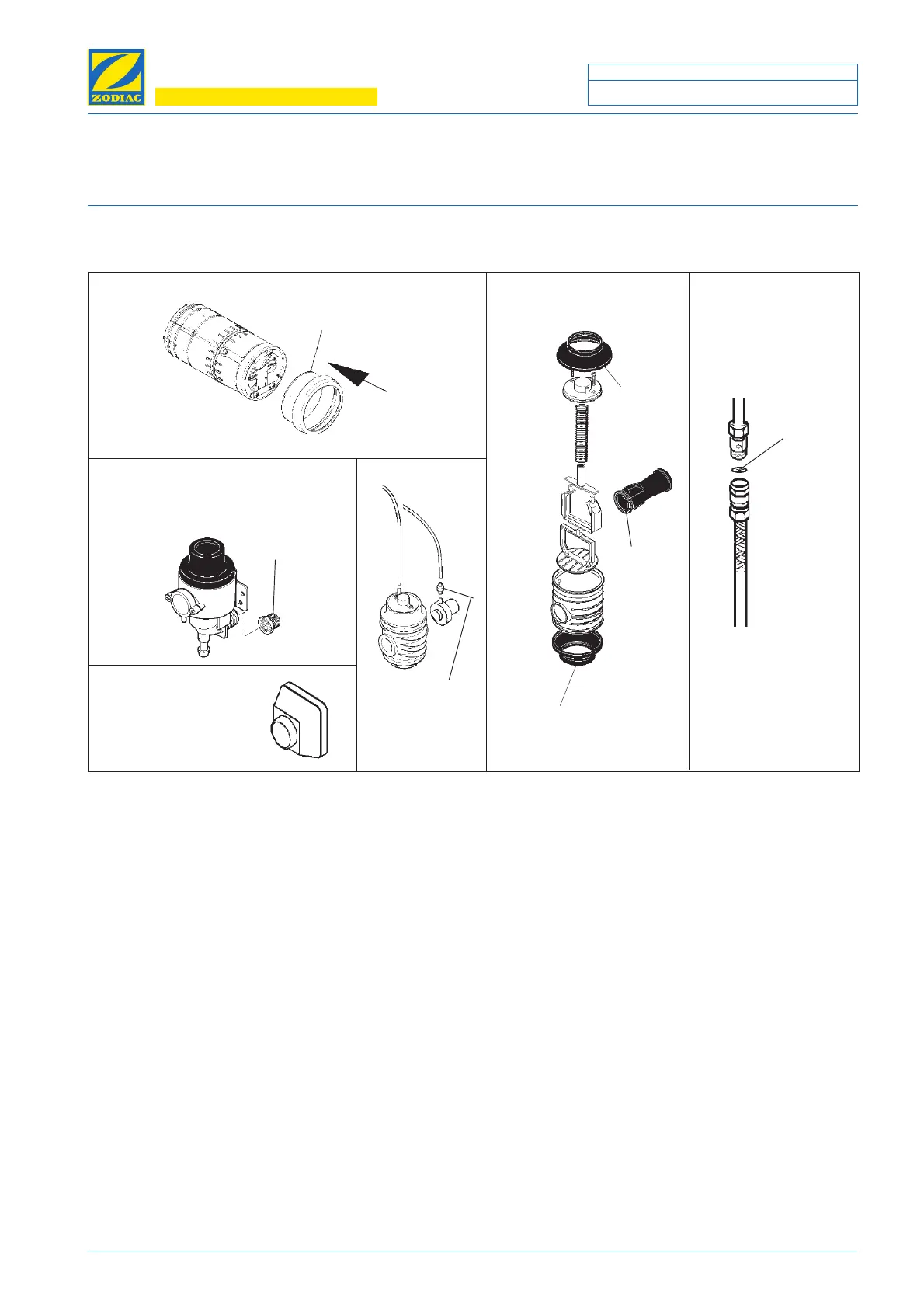

5435169
Rubber
diaphragm
5435181
Rubber
sleeve
5435181
Rubber sleeve
5959902
Mini-check
valve
Discharge valve
Control mechanism
5778600
Air filter
Water valve
5774400
Diaphragm
5774150
Filter
5900200
Pneumatic push button
! NOTE: Use only genuine Evac spare parts.
Water supply
Strainer
