Zoeller QWIK JON 102 User Manual

11
© Copyright 2013 Zoeller Co. All rights reserved.
*(MODEL WM264 SHOWN)
(OPTIONAL)
1
13
11
14
21
16
17
18
20
19
11
12
5
13
10
8
7
9
4
2
3
6*
8
15

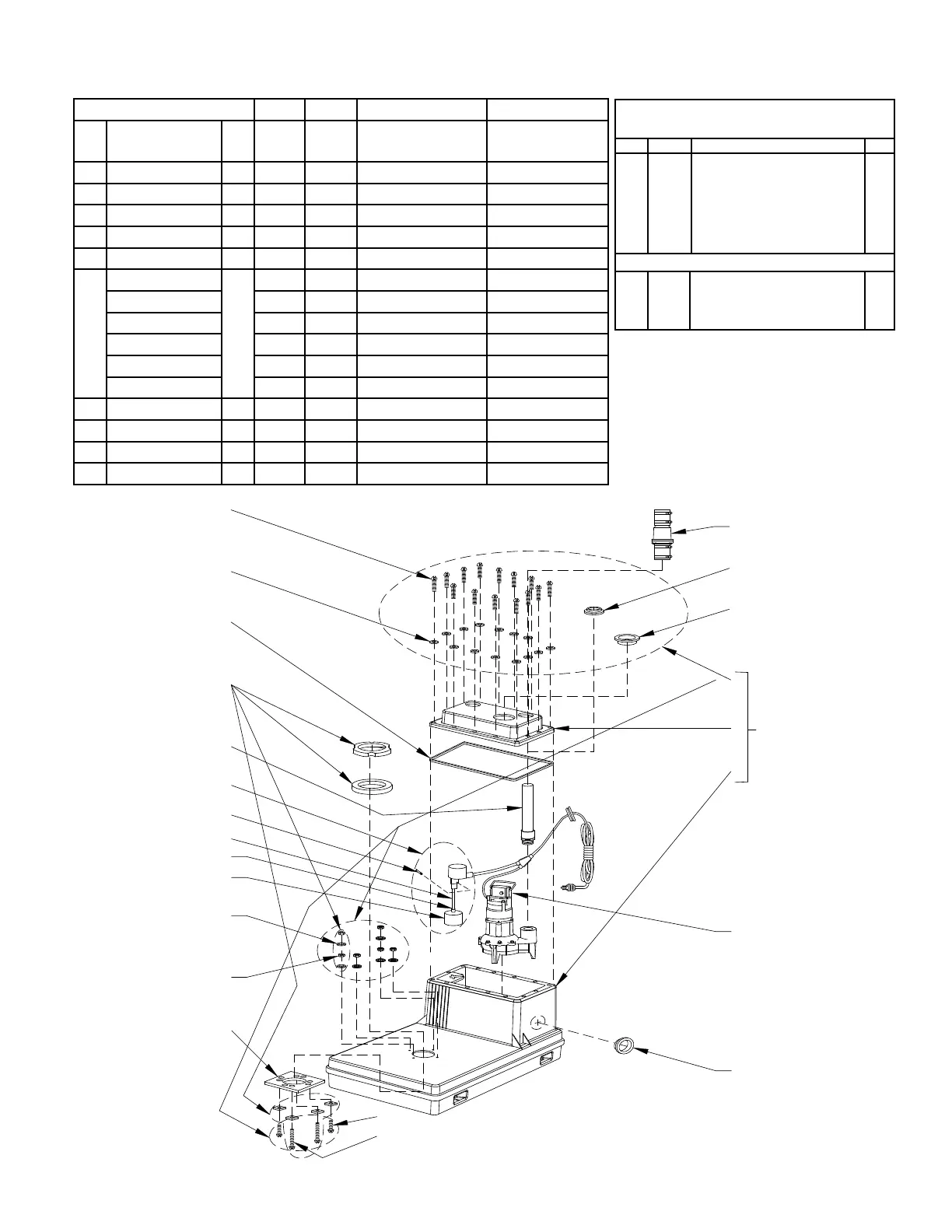

REPLACEMENT PARTS LIST FOR MODELS 100, 101, 102 & 103
Note: Components are shipped each.
HARDWARE PACK P/N 010497
(MODELS 100-D, 101-A, 102-E & 103-A)
ITEM P/N DESCRIPTION QTY
8 005588 Seal, Discharge 2" 2
9 005587 Seal, Vent 3" 1
10 004529 Screw, .25-20 X 2" 2
11 004480 Washer, SS-.25" Standard Flat 20
12 001812 Nut, .25-20 H-SS 6
13 004531 Screw, .25-20 X 1" LG RHM SS 16
14 010524 Seal, Foam - Closed Cell 1
SWITCH HARDWARE PACK P/N 010532
17 009121 Float Rod Pin 1
18 010499 Float Rod 1
19 009120 Float Rod Stops 2
20 009119 Float Bulb 1
SK1587
MODELS: 100-D 101-A 102-E 103-A
REF.
NO.
DESCRIPTION
QTY
WM264
(10/97 to
Present)
WM211
(07/01 to
Present)
WM266 (10/97 to Present)
WD266 (11/99 TO Current)
WM270 (10/95 to Current)
WD270 (06/00 to Current)
1
Tank & Lid Assembly
1
010658 010658 010658 010658
2
Tank
1
011022 011022 011022 011022
3
Lid
1
011023 011023 011023 011023
4
Hardware Pack
1
010497 010497 010497 010497
5
Toilet Flange
1
005521 005521 005521 005521
6
Pump - WM264 (115V)
1
014955
NA NA NA
Pump - WM211 (115V)
NA 014821 NA NA
Pump - WM266 (115V)
NA NA 014955 NA
Pump - WD266 (230V)
NA NA 010514 NA
Pump - WM270 (115V)
NA NA NA 011853
Pump - WD270 (230V)
NA NA NA 152118
7
Back Flow Device
1
006817 006817 006817 006817
15
Discharge Pipe
1
008515 008515 008515 008515
16
Switch Hardware Pack
1
010532 010532 010532 010532
21
Kit, Wax Ring Seal
1
008634 008634 008634 008634
