4
Dazon bv
6 Connect the hose to the hose fracture protection valve en secure it with
one of the supplied hose clamps NH14.
7 Cut the hose so the MT08 can be installed between the gas fracture pro-
tection valve and the propane gas cannon.
8 Connect both ends to the electronic control-unit MT08 and secure these
with the remaining 2 clamps NH14. The arrow on the magnetic valve in
the control-unit indicates the direction of the gas flow. Connect the gas
cannon on the side to which the arrow points out.
9 Connect the pressure regulator to the gas tank.
10 Connect the battery cable of the control-unit MT08 to a 12V battery. The
red or brown wire should be attached to the + of the battery. The blue
wire should be attached to the –. When attached properly, a red control
will light up to show the device is active. Check the connections when this
does not happen. The control-unit consumes 0.53 ampere per day. A fully
loaded car battery of 30Ah will operate the control-unit for approximately
60 days, a 7.2 Ah battery for approximately 14 days.
11 Position the battery and the control-unit preferably above the ground on
an elevated spot and protect them from rain and extreme heat. The con-
trol-unit is splash waterproof and heat resistant to at least 190
0
F/70
0
C. A
careful positioning and protection will increase the lifespan of the equip-
ment significantly.
12 You have finished installation and the MT08 is ready to be configured.

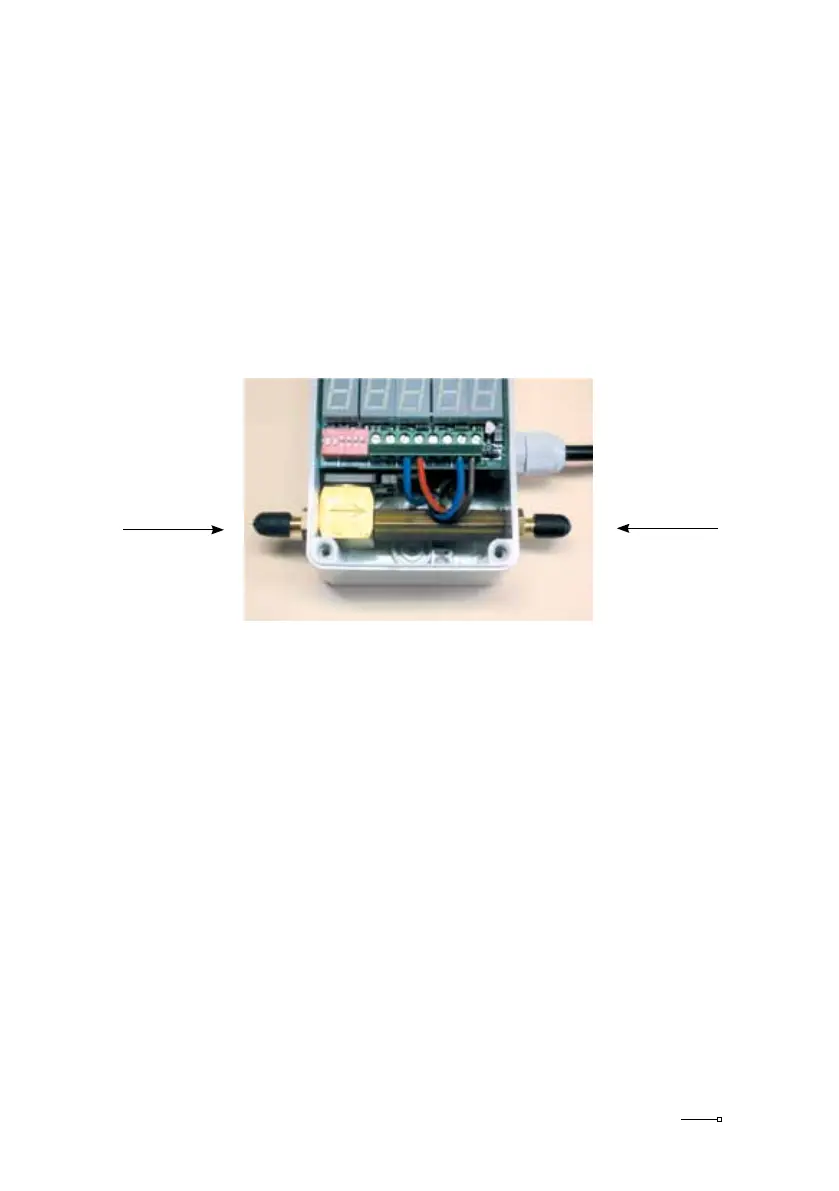

Connect
gas tank to
this side
Connect
Zon Mark 4
to this side
