42
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-061093 M6×22 Hexagon flange bolt 8.8 degree 1
2 ZT250－S Gear swift rod spline of Rocker arm 1
3 1250301-020093
（
）
4 1274100-041000
－
S shift lever adjustment screw
1
5 1250301-018093
－
（
）
6
－
VX gear lever rocker arm
1
7
－

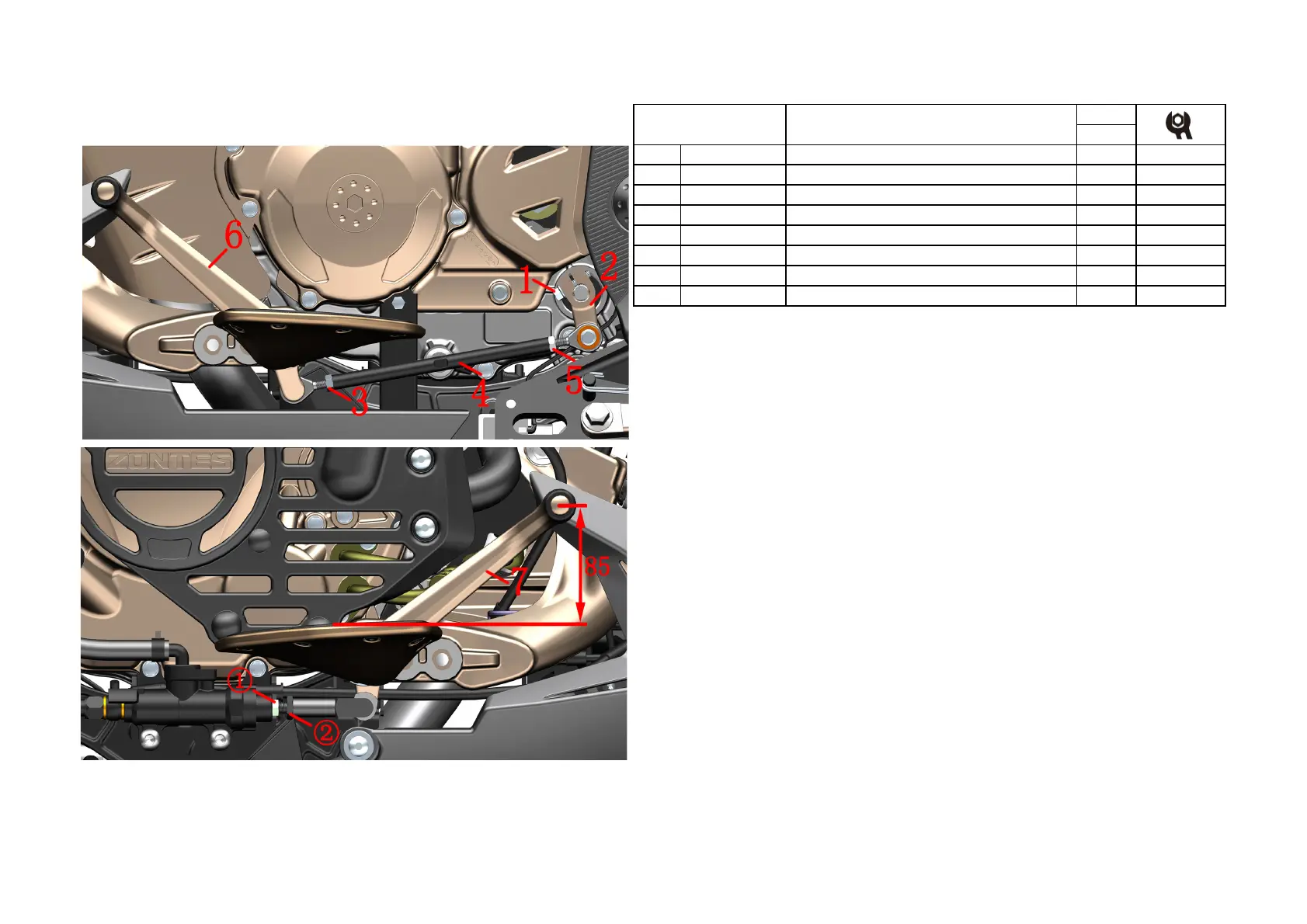

Fig.1 FOOT PEDAL
COMPONENT
Adjust the hight of foot pedal
PROCEDURE:
●Adjust the height of gear shift rod
Use an 10# open-end wrench to loosen the nut ⑶ ,and nut ⑸ respectively. Use 8# open spanner to adjust the
gear shift rod ⑷
adjustment bolt until the height becomes suitable. Then tighten the nuts. If the above-mentioned
method can not adjust the gear shift rod to a satisfying position, take off bolt ⑴ and adjust gear shift rod spline
of rocker arm ⑵ with a straight screwdriver by shoving a little bit the groove in the middle while dragging it out.
Reassemble after the height is suitable. Pay attention to the aligning of the groove in the middle.
●Adjust the height of brake pedal
Use an 10# open-end wrench to loosen the nut②. Spin the adjustment rod bolt① and adjust the brake pedal⑺
to 85mm up to the top pedal ⑻. Fix the adjustment rod bolt① and tighten Nut②.
CAUTION:
●Ensure the motorcycle is well supported during manipulation. Avoid falling accident.
●The height of gear shift rod should be ajusted to a suitable range. Otherwise the riding experience would be
influenced.
●The height of brake pedal should be ajusted to a suitable range. Otherwise the durance of braking shoe and
plate would be influenced. In severe case, ineffective braking is possible.
