zoomion Apollo 80 - Page 3

3

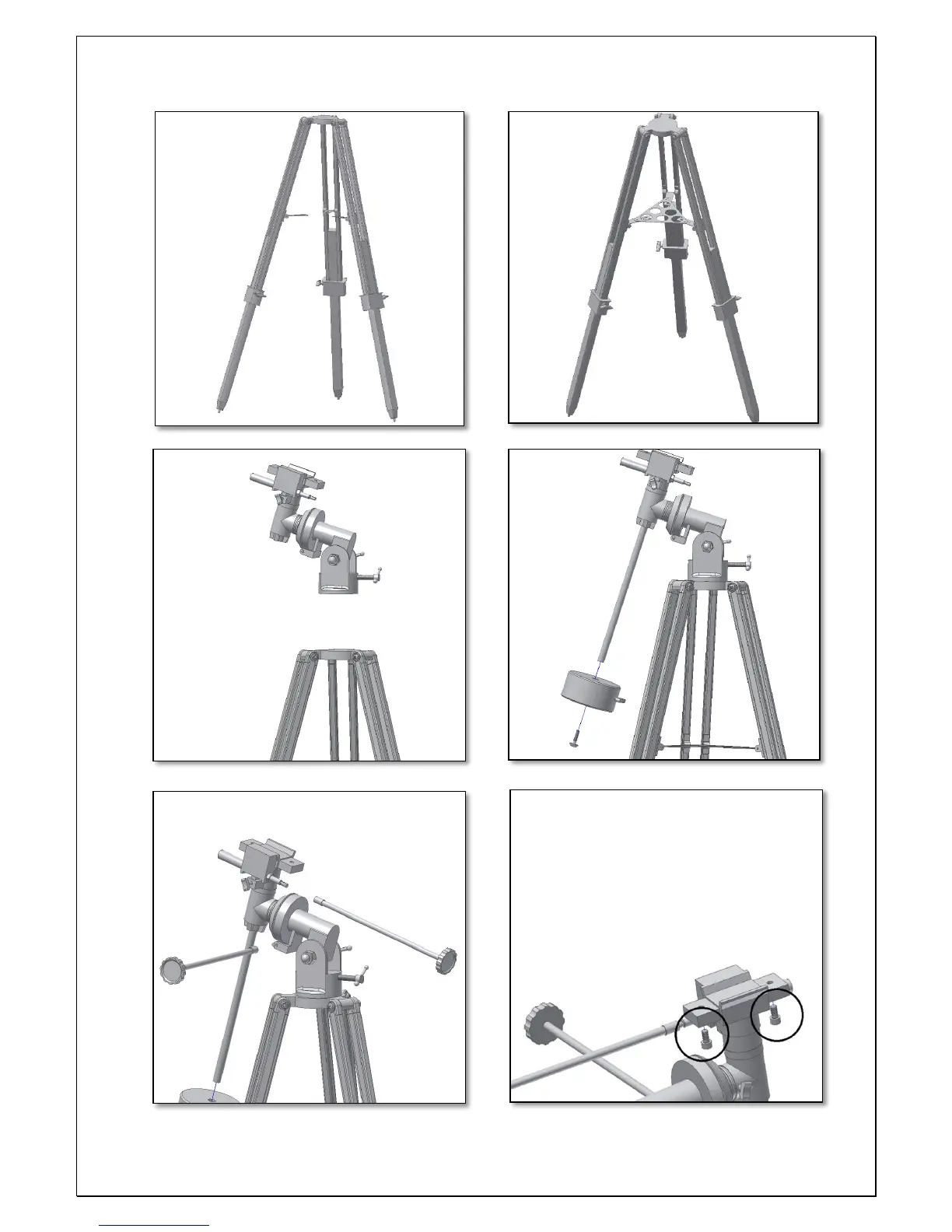

Figure 2. Tripod assembly.
Figure 3. Tray placement.
Figure 4. Place equatorial head on top of tripod.
Figure 5. Thread the counter-weight shaft. Insert counterweight.
Figure 6. Fix Dec. and R.A. handles.
Figure 7. Fix the tube’s ring.
