4

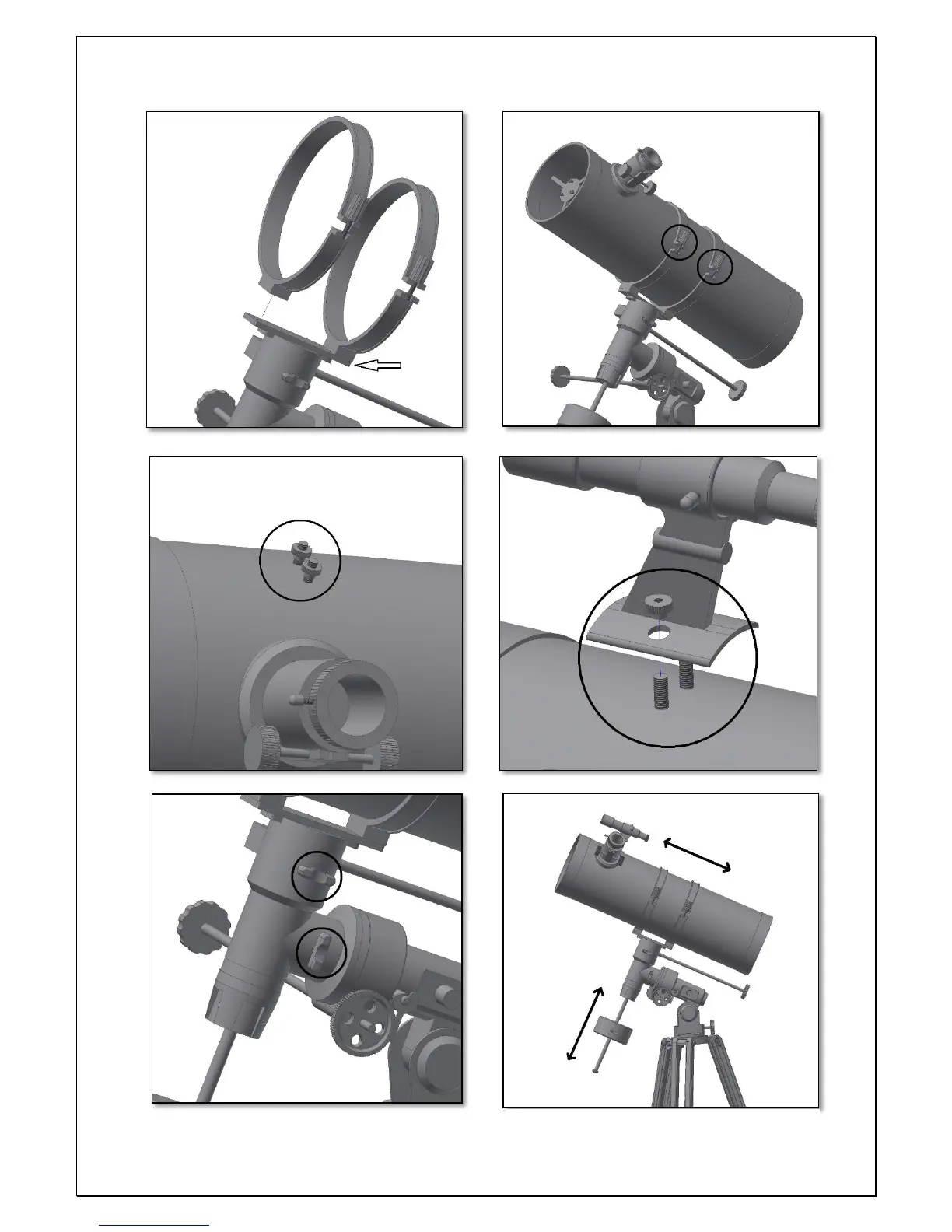

Figure 8. Place tube rings and tighten.
Figure 9. Use the two knobs to prevent tube from sliding.
Figure 10. Remove the finderscope nuts.
Figure 12. The two axis locking knobs.
Figure 11. Place finderscope and thread the thumbnuts
Figure 13. Balance both telescope’s axis.
