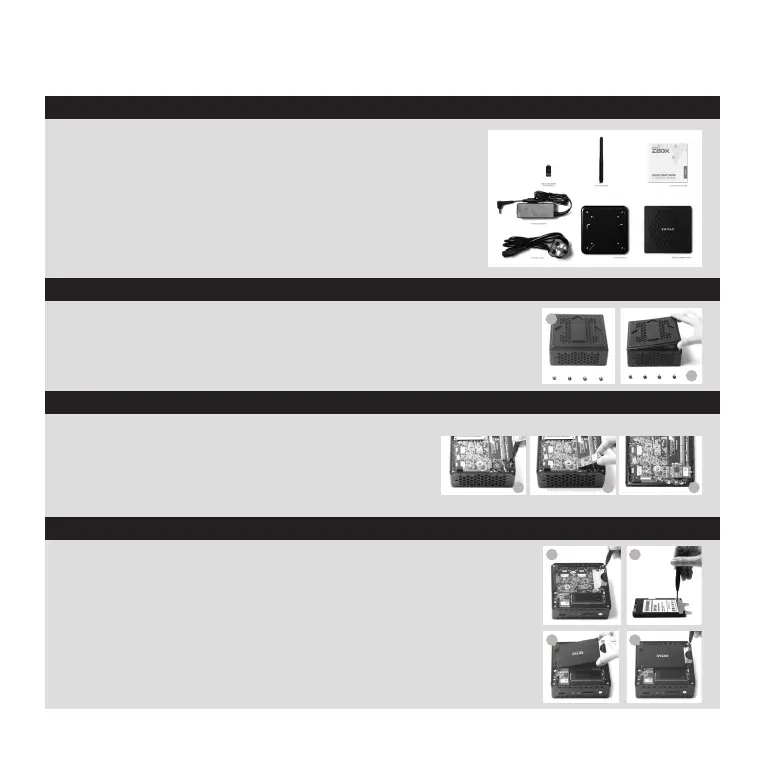

QUICK START GUIDE
PACKAGE CONTENTS
CUSTOMIZING YOUR ZOTAC ZBOX NANO
INSTALLING A HARD DISK
• 1 x ZOTAC ZBOX nano
• 1 x ZOTAC VESA mount
• 1 x AC adapter
• 1 x Power cord
• 1 x WiFi antenna
• 1 x Quick Start Guide
• 1 x OS Recovery USB Drive (optional)
1. Loosen and remove the 4 thumb screws securing the
bottom cover.
2. Gently remove the cover.
1. Locate the hard disk bracket, remove the screw, and
remove the hard disk bracket.
2. Install the hard disk bracket to a 2.5-inch SATA hard
disk /SSD with 2 screws.
3. Insert the hard disk /SSD into the socket and gently
slide into the connector.
4. Reinstall the screws of the hard disk bracket.
INSTALLING M.2 SSD MODULE
1. Locate the M.2 SSD slot and remove the screw.
2. Insert an M.2 SSD module into the slot at a 45 degree
angle.
3. Gently press down on the M.2 SSD module and install
the screw to secure the drive.
1
2
2
1
3 4
2
1 3
