ZUMEX Z-450 User Manual

MANUAL DE INSTRUCCIONES - INSTRUCTION MANUAL
12/28
BEFORE HANDLING AND
DISASSEMBLING ANY PA
RT, FOR EXAMPLE THE
PRESSING
UNITS OR THE BLADES, THE MACHINE SHOULD BE DISCONNECTED FROM ALL
POWER SOURCES.

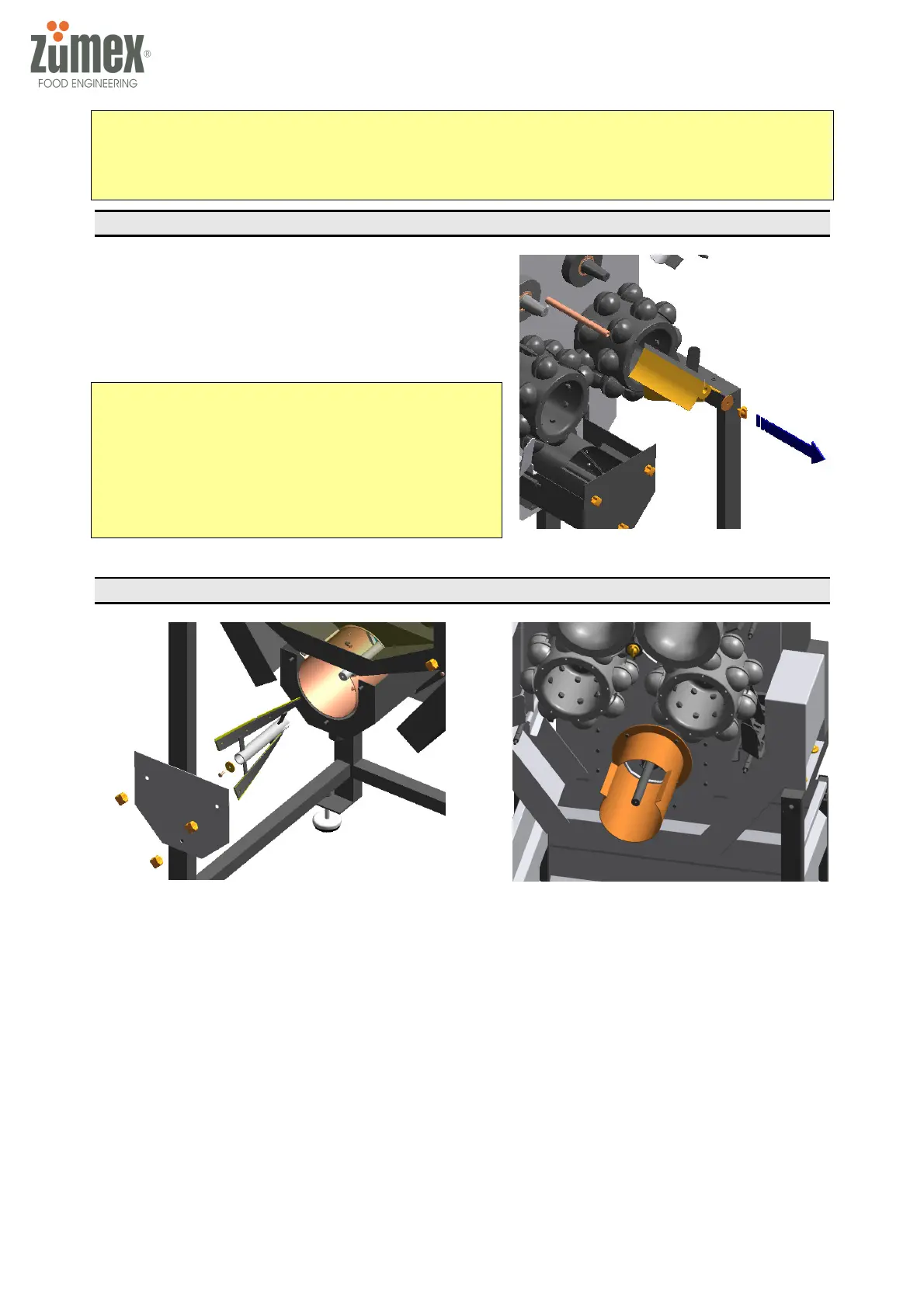

3.2.1. DISASSEMBLING THE BLADE AND THE BLADE SUPPORT.
Unscrew and remove the plastic securing
knob along with the washer and remove the blade in
the direction of the arrow, as indicated in the figure.
Take out the blade in the direction indicated.
CAUTION !
HANDLE THE BLADE WITH CARE. BEFORE
HANDLING THE BLADE THE MACHINE SHOULD
BE DISCONNECTED FROM ALL POWER
SOURCES.
3.2.2. DISASSEMBLY OF THE FILTER .
Take the cap off of the filter by unscrewing the three knobs. Ref. 13.230.000 . If it is
necessary to remove the rotating pulp extractor, remove the screw and washer located at the
centre of the axle and take it straight out.
If removal of the strainer is required for more thorough cleaning, unscrew the four screws
which secure the filter clamp to the body of the case and proceed with its removal. When
reinstalling this piece into its proper place, soak the threads of the screws with VMQ silicone.
