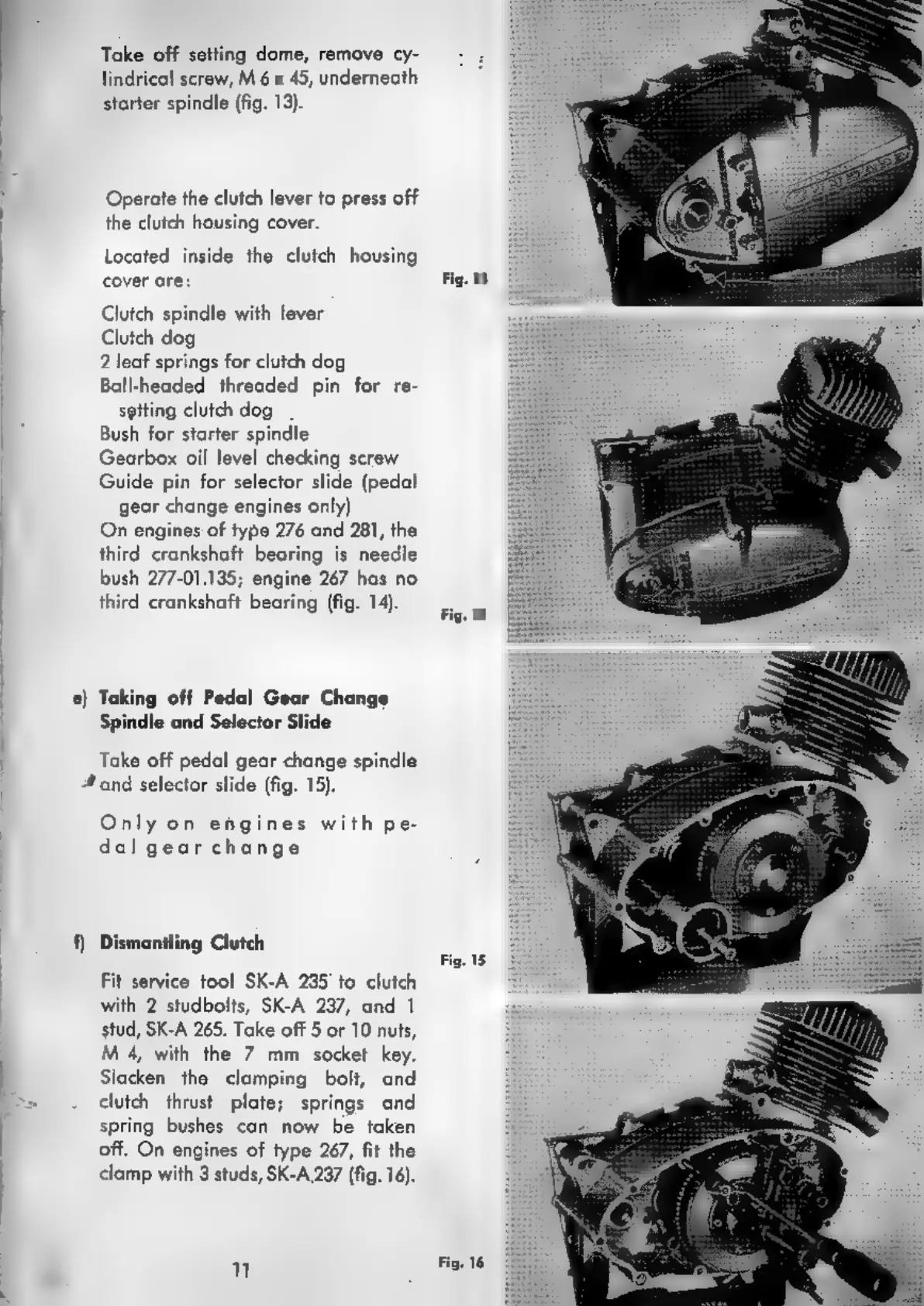

Take off setting dome, remove cy-
|
lindrical
screw,
M
6
x
45,
underneath
starter spindle (fig. 13).
Operate the clutch lever to press off
the clutch housing cover.
Located inside the clutch housing
cover are:
I Clutch spindle with lever
Clutch dog
2 leaf springs for clutch dog
Ball-headed threaded pin for re-
setting clutch dog _
Bush for starter spindle
Gearbox oil level checking screw
Guide pin for selector slide (pedal
gear change engines only)
On engines of type 276 and 281, the
third crankshaft bearing is needle
bush 277-01.135; engine 267 has no
third crankshaft bearing (fig. 14).
e) Taking off Pedal Gear Change
Spindle and Selector Slide
Take off pedal gear change spindle
# and selector slide (fig. 15).
Only on engines with pe-
dal gear change
f) Dismantling Clutch
Fit service tool SK-A 235 to clutch
with 2 studbolts, SK-A 237, and 1
stud, SK-A 265. Take off 5 or 10 nuts,
M 4, with the 7 mm socket key.
l Slacken the clamping bolt, and
=
clutch
thrust
plate;
springs
and
| spring bushes can now be taken
|
off.
On
engines
of
type
267,
fit
the
| clamp with 3 studs, SK-A.237 (fig. 16).
Fig. 13
Fig. 14
Fig. 15
Fig. 16
