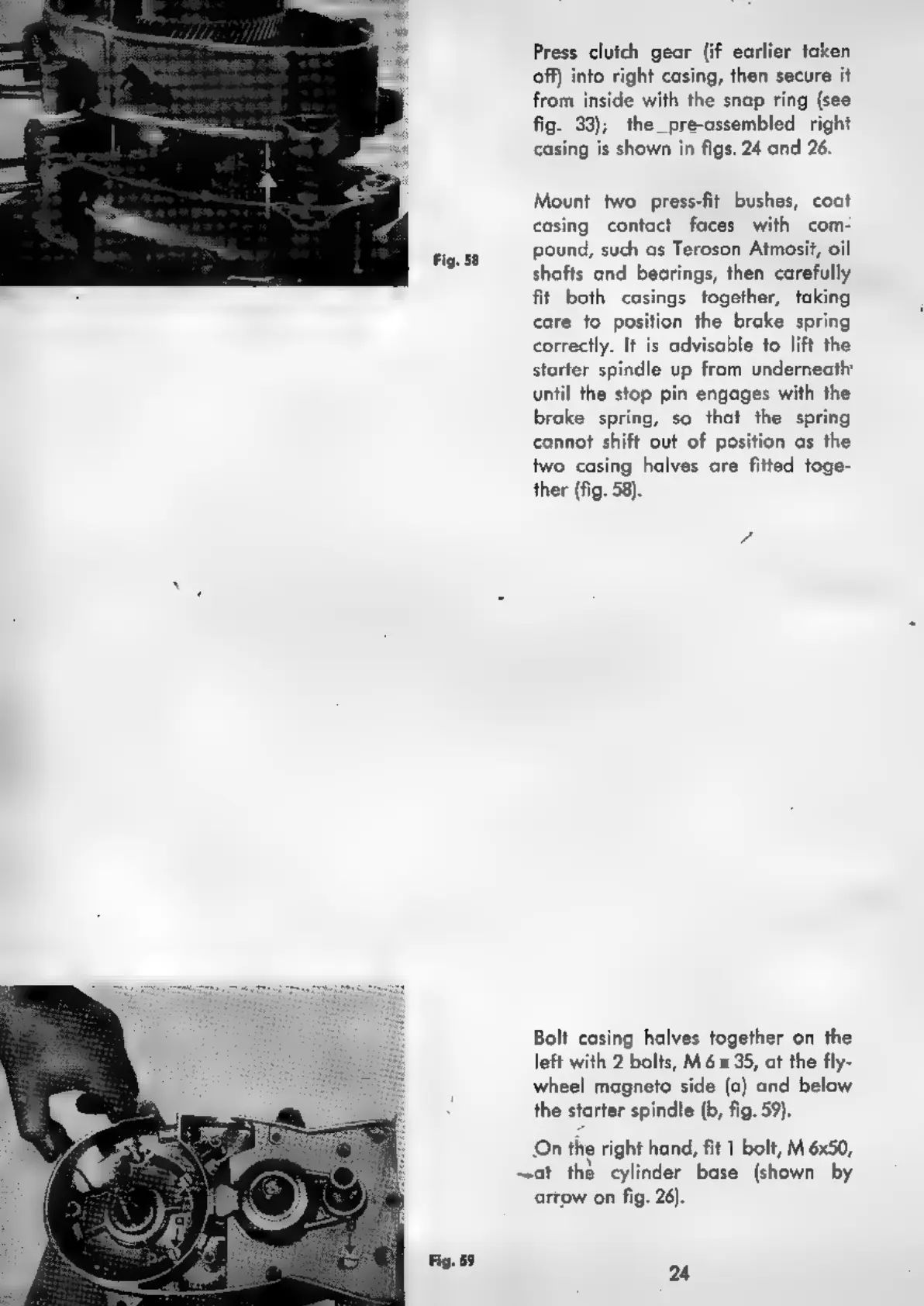

Press clutch gear (if earlier taken
off) into right casing, then secure it
from inside with the snap ring (see
fig. 33); the pre-assembled right
casing is shown in figs. 24 and 26.
Mount two press-fit bushes, coat
casing contact faces with com-
pound, such as Teroson Atmosit, oil
shafts and bearings, then carefully
fit both casings together, taking
care to position the brake spring
correctly. It is advisable to lift the
starter spindle up from underneath
until the stop pin engages with the
brake spring, so that the spring
cannot shift out of position as the
two casing halves are fitted toge-
ther (fig. 58).
Bolt casing halves together on the
left with 2 bolts, M 6 x 35, at the fly-
wheel magneto side (a) and below
the starter spindle (b, fig. 59).
On the right hand, fit 1 bolt, M 6x50,
~at the cylinder base (shown by
arrow on fig. 26).
Fig. 59 24
