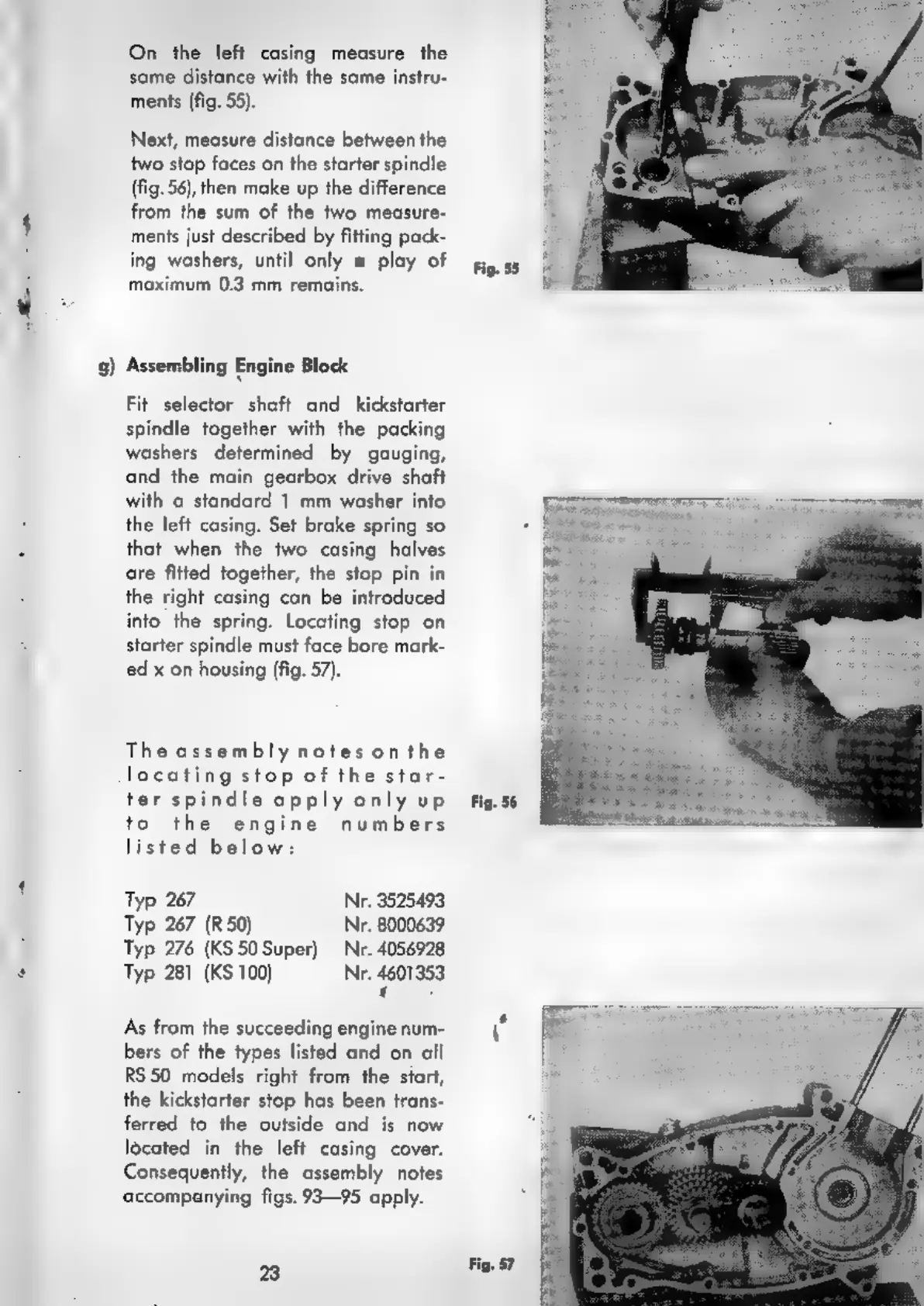

On the left casing measure the
same distance with the same instru-
ments (fig. 55).
Next, measure distance between the
two stop faces on the starter spindle
(fig. 56), then make up the difference
from the sum of the two measure-
ments just described by fitting pack-
ing washers, until only a play of
maximum 0.3 mm remains.
Assembling Engine Block
Fit selector shaft and kickstarter
spindle together with the packing
washers determined by gauging,
and the main gearbox drive shaft
with a standard 1 mm washer into
the left casing. Set brake spring so
that when the two casing halves
are fitted together, the stop pin in
the right casing can be introduced
into the spring. Locating stop on
starter spindle must face bore mark-
ed x on housing (fig. 57).
Theassemblynotesonthe
locating stop of the star-
ter spindle apply only up
to the engine numbers
listed below:
Typ 267 Nr. 3525493
Typ 267 (R50) Nr. 8000639
Typ 276 (KS 50 Super) Nr. 4056928
Typ 281 (KS 100) Nr. 4601353
DH
As from the succeeding engine num-
bers of the types listed and on all
RS 50 models right from the start,
the kickstarter stop has been trans-
ferred to the outside and is now
located in the left casing cover.
Consequently, the assembly notes
accompanying figs. 93—95 apply.
23
Fig. 55
Fig. 56
Fig. 57
