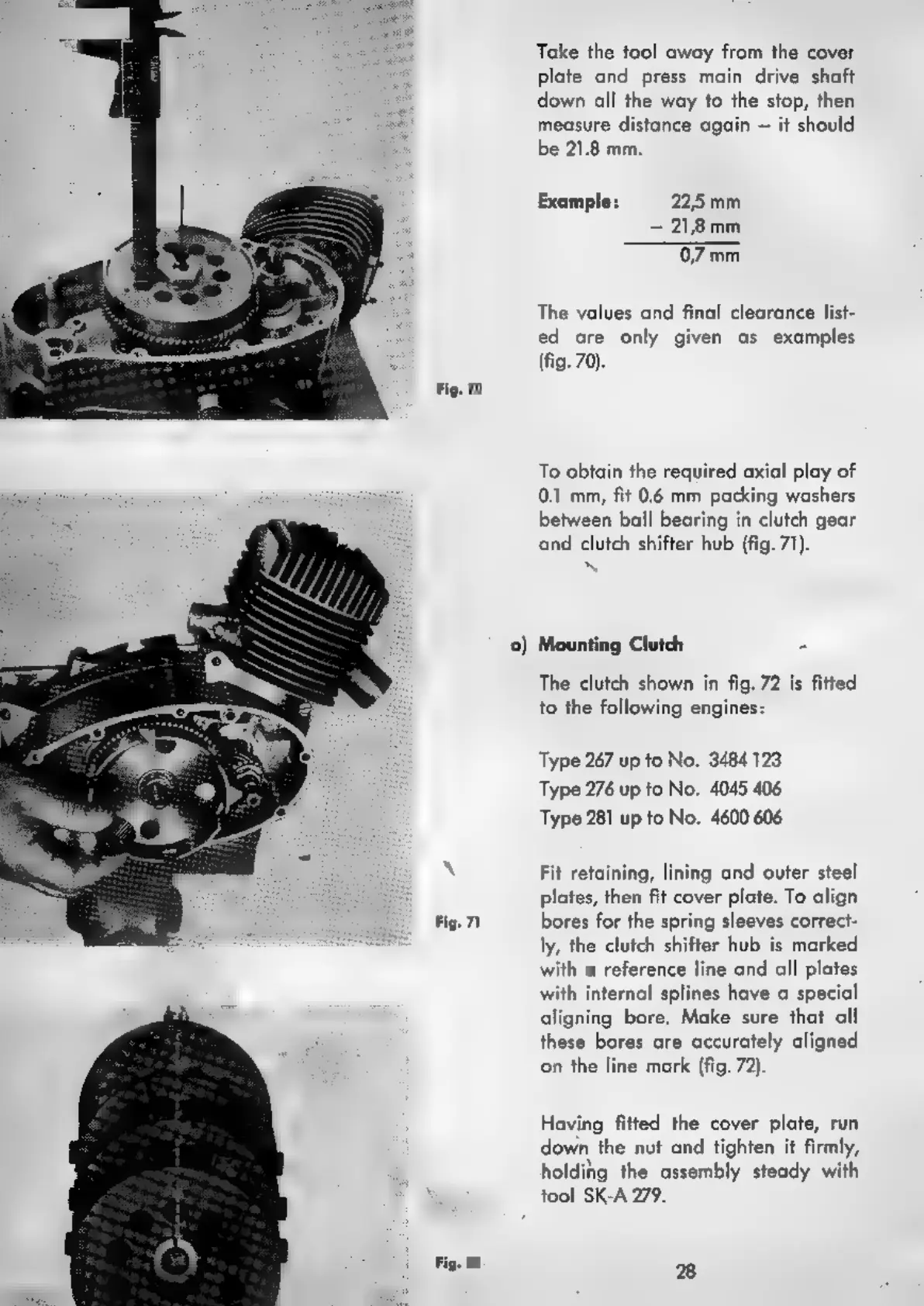

Take the tool away from the cover
plate and press main drive shaft
down all the way to the stop, then
measure distance again — it should
be 21.8 mm.
Example: 225 mm
= 21,8 mm
0,7 mm
The values and final clearance list-
ed are only given as examples
(fig. 70).
To obtain the required axial play of
0.1 mm, fit 0.6 mm packing washers
between ball bearing in clutch gear
and clutch shifter hub (fig. 71).
Mounting Clutch Å
The clutch shown in fig.72 is fitted
to the following engines:
Type 267 up to No. 3484 123
Type 276 up to No. 4045 406
Type 281 up to No. 4600 606
Fit retaining, lining and outer steel
plates, then fit cover plate. To align
bores for the spring sleeves correct-
ly, the clutch shifter hub is marked
with a reference line and all plates
with internal splines have a special
aligning bore. Make sure that all
these bores are accurately aligned
on the line mark (fig. 72).
Having fitted the cover plate, run
down the nut and tighten it firmly,
holding the assembly steady with
tool SK-A 279.
