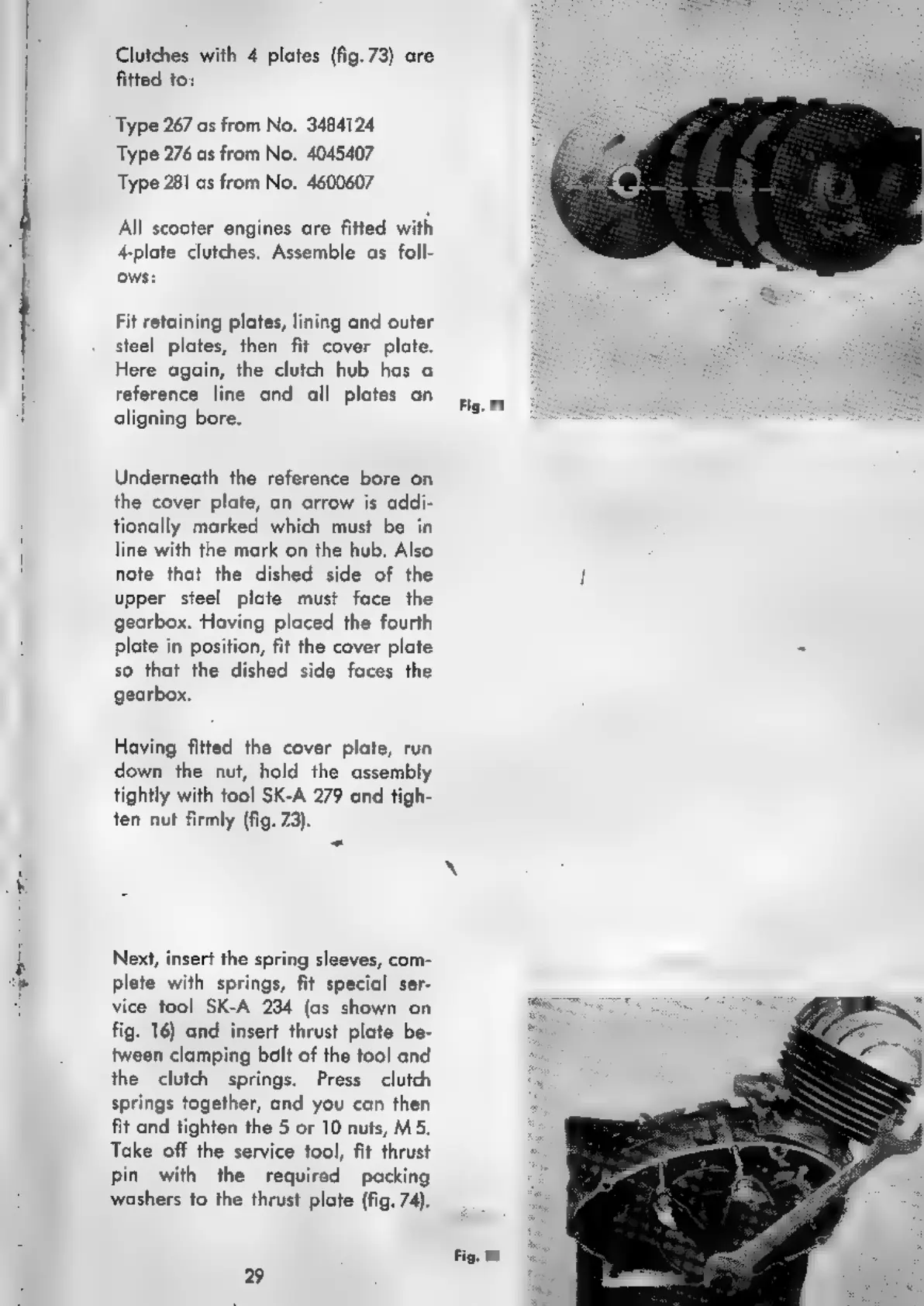

Clutches with 4 plates (fig. 73) are
fitted to:
Type 267 as from No. 3484124
Type 276 as from No. 4045407
Type 281 as from No. 4600607
All scooter engines are fitted with
4plate clutches. Assemble as foll-
ows:
Fit retaining plates, lining and outer
steel plates, then fit cover plate.
Here again, the clutch hub has a
reference line and all plates an
aligning bore.
Underneath the reference bore on
the cover plate, an arrow is addi-
tionally marked which must be in
line with the mark on the hub, Also
note that the dished side of the
upper steel plate must face the
gearbox. Having placed the fourth
plate in position, fit the cover plate
so that the dished side faces the
gearbox.
Having fitted the cover plate, run
down the nut, hold the assembly
tightly with tool SK-A 279 and tigh-
ten nut firmly (fig. 73).
Next, insert the spring sleeves, com-
plete with springs, fit special ser-
vice tool SK-A 234 (as shown on
fig. 16) and insert thrust plate be-
tween clamping bolt of the tool and
the clutch springs. Press clutch
springs together, and you can then
fit and tighten the 5 or 10 nuts, M5.
Take off the service tool, fit thrust
pin with the required packing
washers fo the thrust plate (fig. 74).
29
Fig. 73
Fig. 74
