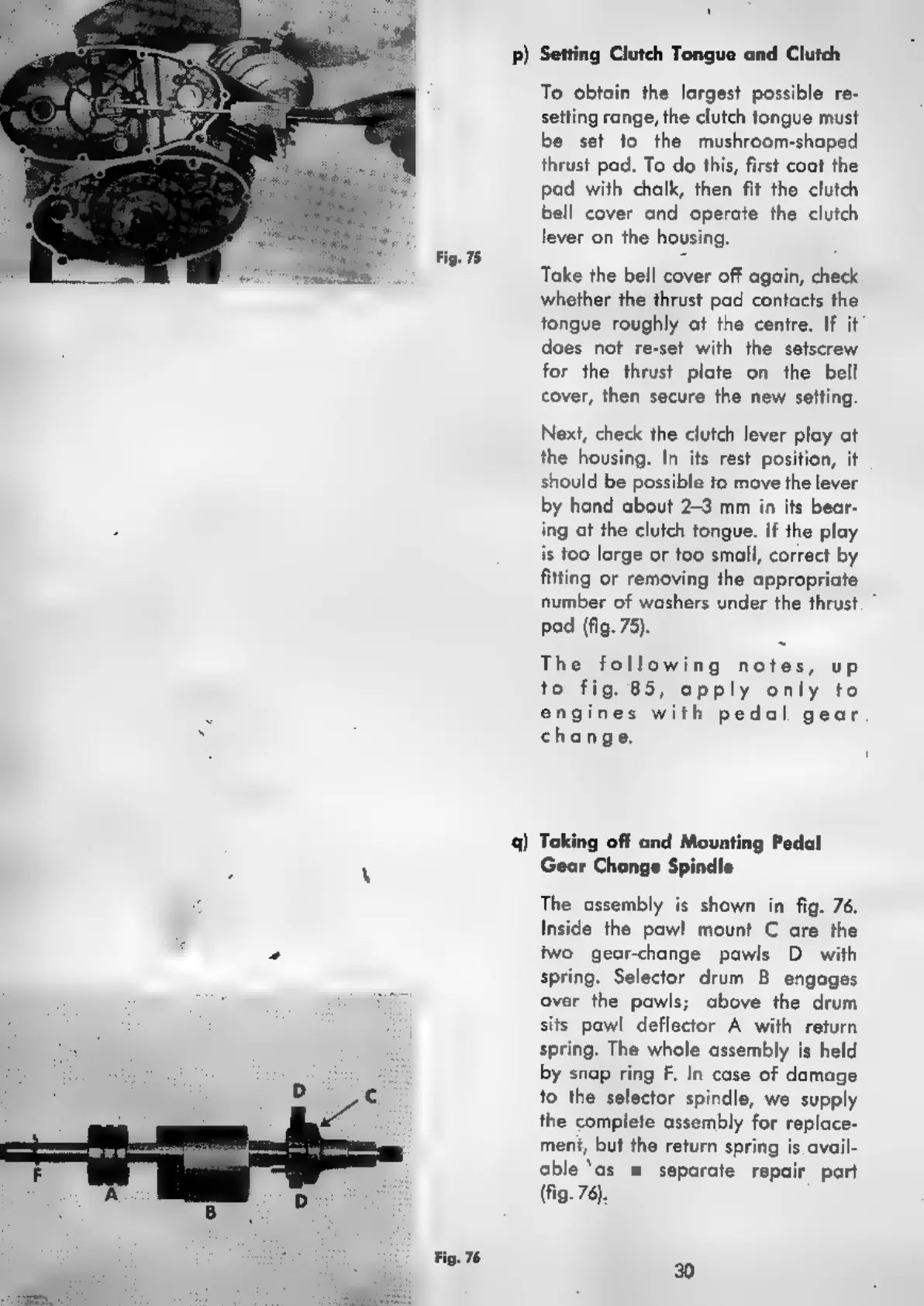

p) Setting Clutch Tongue and Clutch
To obtain the largest possible re-
setting range, the clutch tongue must
be set to the mushroom-shaped
thrust pad. To do this, first coat the
pad with chalk, then fit the clutch
bell cover and operate the clutch
lever on the housing.
Take the bell cover off again, check
whether the thrust pad contacts the
tongue roughly at the centre. If it
does not re-set with the setscrew
for the thrust plate on the bell
cover, then secure the new setting.
Next, check the clutch lever play at
the housing. In its rest position, it
should be possible to move the lever
by hand about 2-3 mm in its bear-
ing at the clutch tongue. If the play
is too large or too small, correct by
fitting or removing the appropriate
number of washers under the thrust
pad (fig. 75).
The following notes, up
to fig. 85, apply only to
engines
with
pedal
gear
change.
q) Taking off and Mounting Pedal
\ Gear Change Spindle
The
assembly
is
shown
in
fig.
76.
Inside the pawl mount C are the
4
two
gear-change
pawls
D
with
spring.
Selector
drum
B
engages
over
the
pawls;
above
the
drum
sits pawl deflector A with return
spring. The whole assembly is held
by
snap
ring
F.
In
case
of
damage
to
the
selector
spindle,
we
supply
the
complete
assembly
for
replace-
ment, but the return spring is avail-
able
‘as
a
separate
repair
part
(fig. 76).
