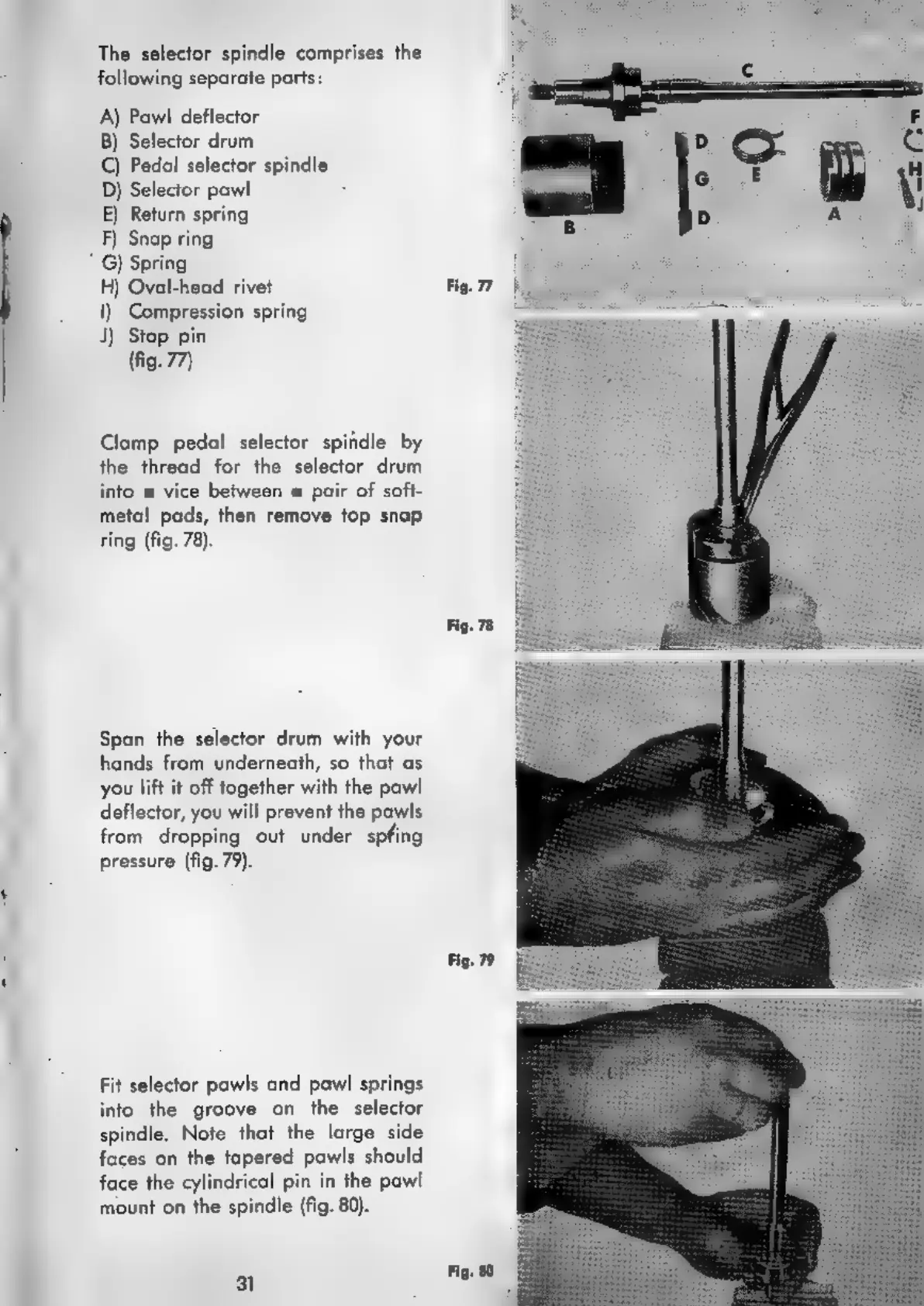

The selector spindle comprises the
following separate parts:
A) Pawl deflector
B) Selector drum
C) Pedal selector spindle
D) Selector pawl å
E) Return spring
F) Snap ring
G) Spring
H) Oval-head rivet
I) Compression spring
J) Stop pin
(fig. 77)
Clamp pedal selector spindle by
the thread for the selector drum
into a vice between a pair of soft-
metal pads, then remove top snap
ring (fig. 78).
Span the selector drum with your
hands from underneath, so that as
you lift it off together with the pawl
deflector, you will prevent the pawls
from dropping out under spfing
pressure (fig. 79).
Fit
selector
pawls
and
pawl
springs
into
the
groove
on
the
selector
spindle.
Note
that
the
large
side
faces
on
the
tapered
pawls
should
face
the
cylindrical
pin
in
the
pawl
mount
on
the
spindle
(fig.
80).
31
