Zundapp 281 - Page 32

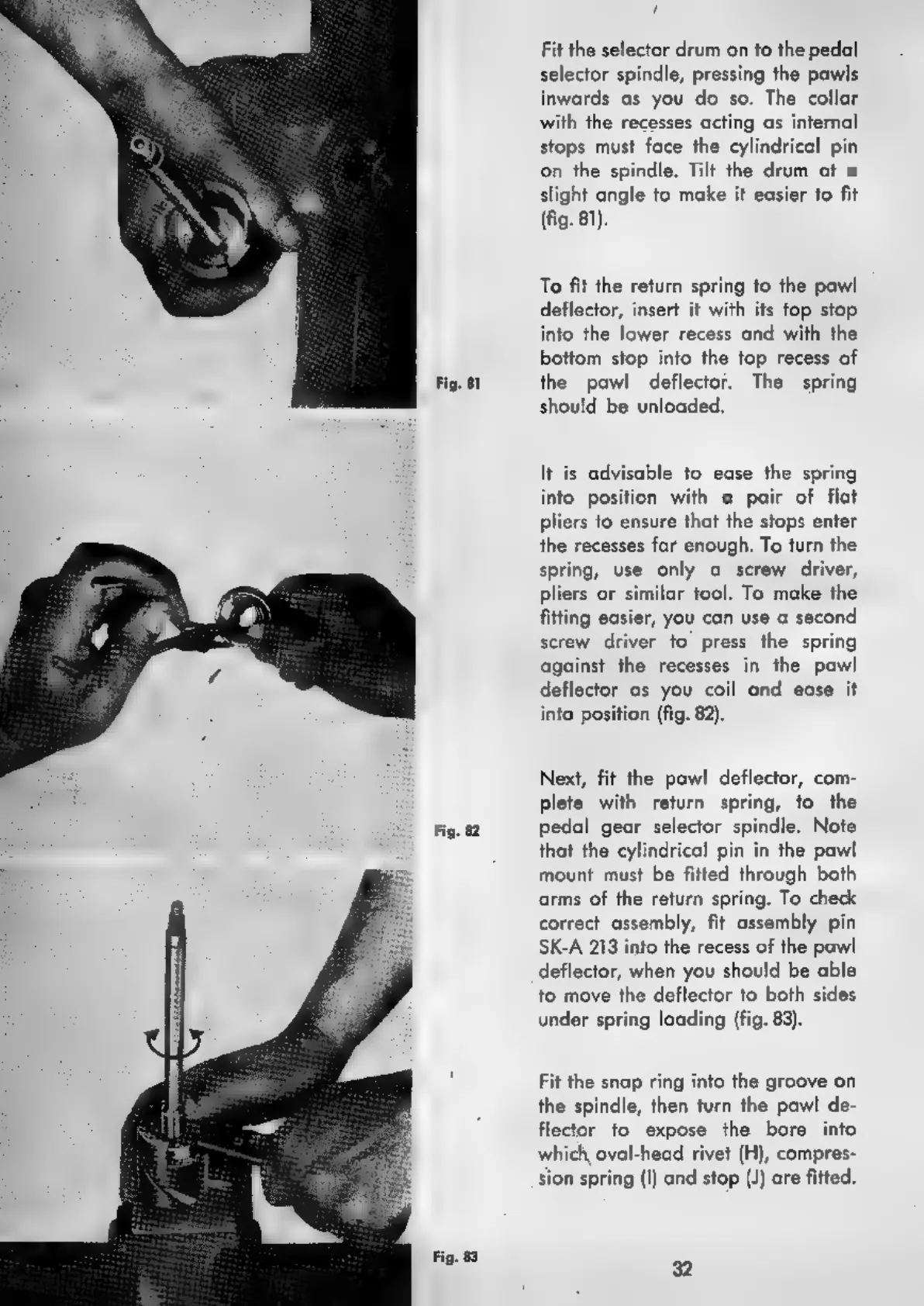

Fig. 81
Fig. 82
Fit the selector drum on to the pedal
selector spindle, pressing the pawls
inwards as you do so. The collar
with the recesses acting as internal
stops must face the cylindrical pin
on the spindle. Tilt the drum at a
slight angle to make it easier to fit
(fig. 81).
To fit the return spring to the pawl
deflector, insert it with its top stop
into the lower recess and with the
bottom stop into the top recess of
the pawl deflector. The spring
should be unloaded,
It is advisable to ease the spring
into position with a pair of flat
pliers to ensure that the stops enter
the recesses far enough. To turn the
spring, use only a screw driver,
pliers or similar tool. To make the
fitting easier, you can use a second
screw driver to press the spring
against the recesses in the pawl
deflector as you coil and ease it
into position (fig. 82).
Next, fit the pawl deflector, com-
plete with return spring, to the
pedal gear selector spindle. Note
that the cylindrical pin in the pawl
mount must be fitted through both
arms of the return spring. To check
correct assembly, fit assembly pin
SK-A 213 into the recess of the pawl
deflector, when you should be able
to move the deflector to both sides
under spring loading (fig. 83).
Fit the snap ring into the groove on
the spindle, then turn the pawl de-
flector to expose the bore into
which, oval-head rivet (H), compres-
sion spring (I) and stop (J) are fitted.
