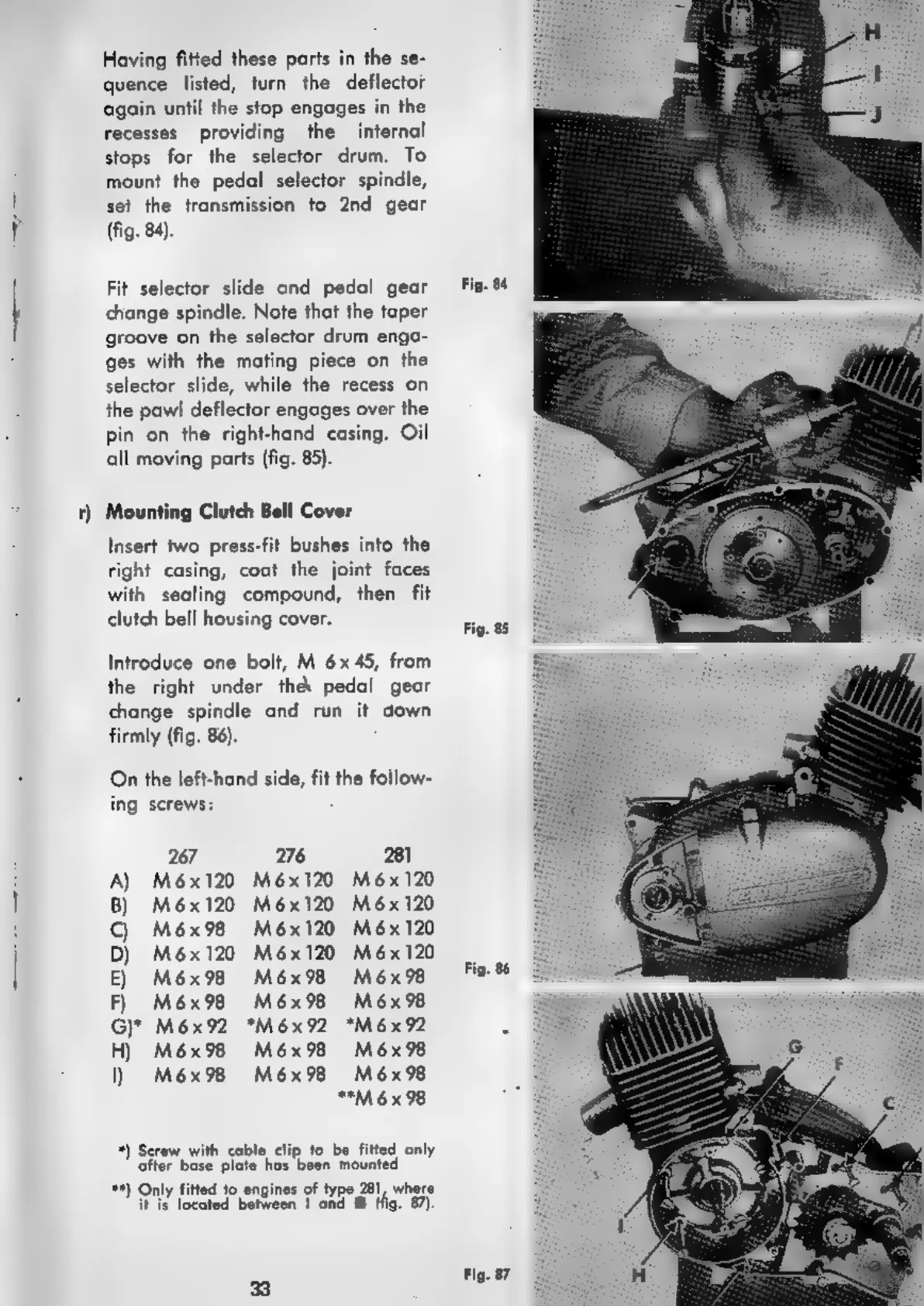

Having fitted these parts in the se-
quence listed, turn the deflector
again
until
the
stop
engages
in
the
recesses providing the internal
stops for the selector drum. To
mount the pedal selector spindle,
set the transmission to 2nd gear
(fig. 84).
Fit selector slide and pedal gear
change spindle. Note that the taper
groove on the selector drum enga-
ges with the mating piece on the
selector slide, while the recess on
the pawl deflector engages over the
pin on the right-hand casing. Oil
all moving parts (fig. 85).
d Mounting Clutch Bell Cover
Insert two press-fit bushes into the
right casing, coat the joint faces
with sealing compound, then fit
clutch bell housing cover.
Introduce one bolt, M 6x 45, from
the right under the pedal gear
change spindle and run it down
firmly (fig. 86).
On the left-hand side, fit the follow-
ing screws:
267 276 281
A)
M6x120
M6x120
M6x120
B) M6x120 M6x120 M6x120
O M6x98 M6x120 M6x120
D) M6x120 M6x120 M6x120
E) M6x98 M6x98 M6x98
F) M6x98 M6x98 M6x98
Gr M6x92 *M6x92 *M6x92
H) M6x98 M6x98 M6x98
1) M6x98 M6x98 M6x98
*M 6x98
*) Screw with cable clip to be fitted only
after base plate has been mounted
al Only fitted to engines of type 281, where
ir ie located between I and G We 87)
Fig. 84
Fig. 85
Fig. 87
