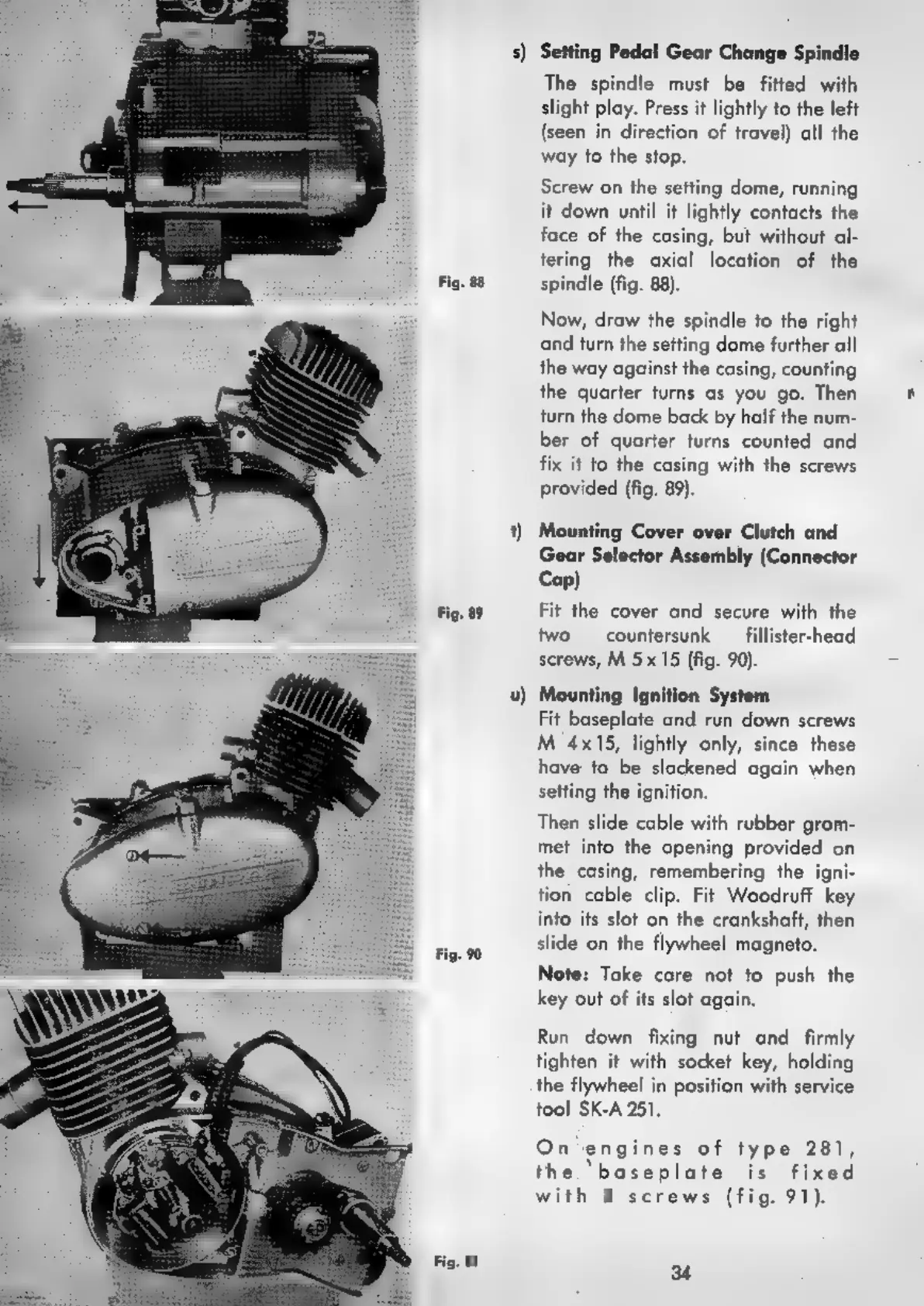

Fig. 88
Fig. 89
Fig. 90
Fig. 91
+)
Setting Pedal Gear Change Spindle
The spindle must be fitted with
slight play. Press it lightly to the left
(seen in direction of travel) all the
way to the stop.
Screw on the setting dome, running
it down until it lightly contacts the
face of the casing, but without al-
tering the axial location of the
spindle (fig. 88).
Now, draw the spindle to the right
and turn the setting dome further all
the way against the casing, counting
the quarter turns as you go. Then
turn the dome back by half the num-
ber of quarter turns counted and
fix it to the casing with the screws
provided (fig. 89).
Mounting Cover over Clutch and
Gear Selector Assembly (Connector
Cap)
Fit the cover and secure with the
two countersunk fillister-head
screws, M 5x15 (fig. 90).
Mounting Ignition System.
Fit baseplate and run down screws
M 4x15, lightly only, since these
have to be slackened again when
setting the ignition.
Then slide cable with rubber grom-
met into the opening provided on
the casing, remembering the igni-
tion cable clip. Fit Woodruff key
into its slot on the crankshaft, then
slide on the flywheel magneto.
Note: Take care not to push the
key out of its slot again.
Run down fixing nut and firmly
tighten it with socket key, holding
the flywheel in position with service
tool SK-A 251.
On engines of type 281,
the ‘baseplate is fixed
with 3 screws (fig. 91).
34
