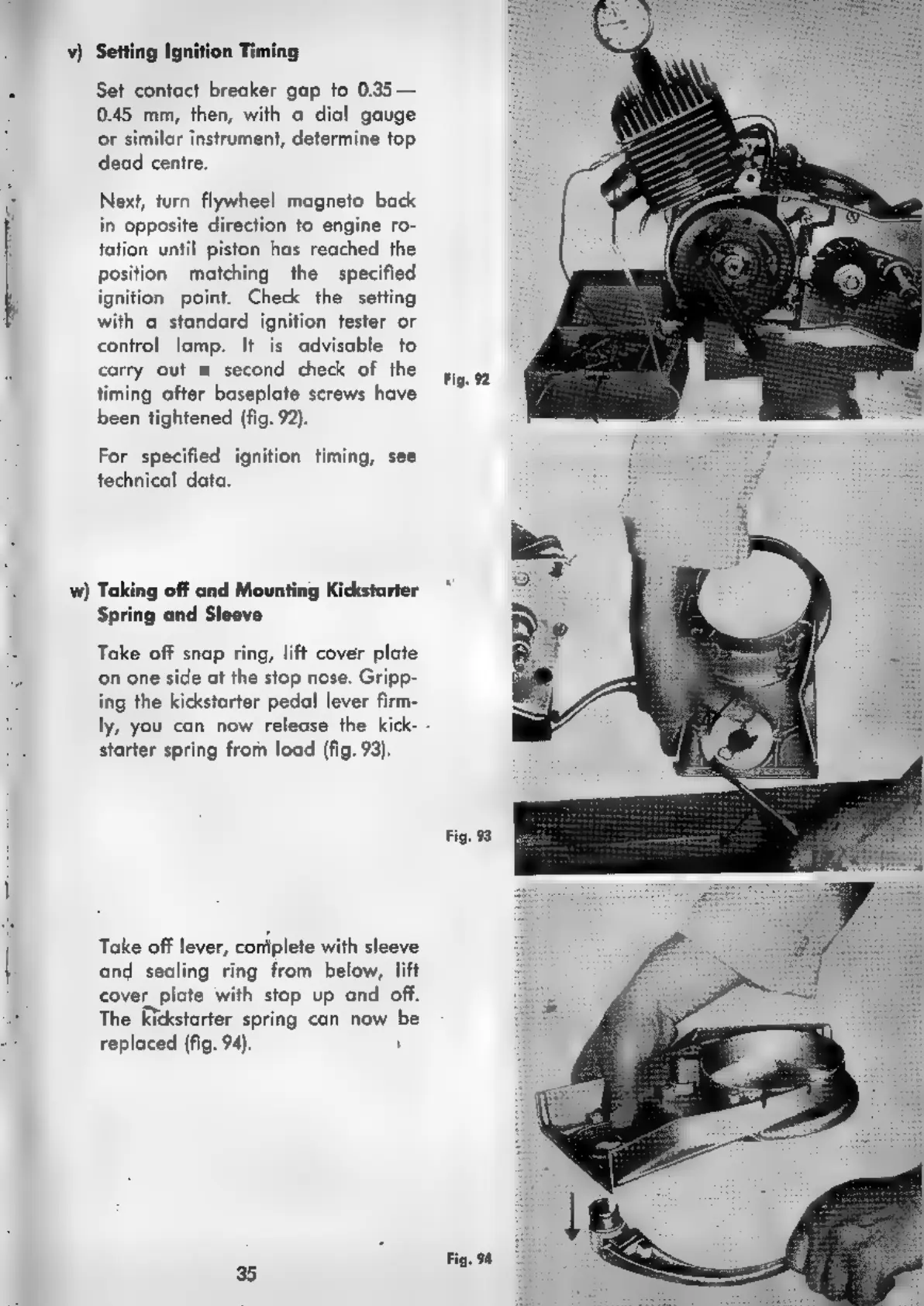

d Setting Ignition Timing
Set contact breaker gap to 0.35 —
0.45 mm, then, with a dial gauge
or similar instrument, determine top
dead centre.
Next, turn flywheel magneto back
in opposite direction to engine ro-
tation until piston has reached the
position matching the specified
ignition point. Check the setting
with a standard ignition tester or
control lamp. It is advisable to
carry out a second check of the
timing after baseplate screws have
been tightened (fig. 92).
For specified ignition timing, see
technical data.
w) Taking off and Mounting Kickstarter
Spring and Sleeve
Take off snap ring, lift cover plate
on one side at the stop nose. Gripp-
ing the kickstarter pedal lever firm-
ly, you can now release the kick-
starter spring from load (fig. 93).
Take off lever, coniplete with sleeve
and sealing ring from below, lift
cover plate with stop up and off.
The kickstarter spring can now be
replaced (fig. 94) i
35
Fig. 92
Fig. 93
Fig. 94
