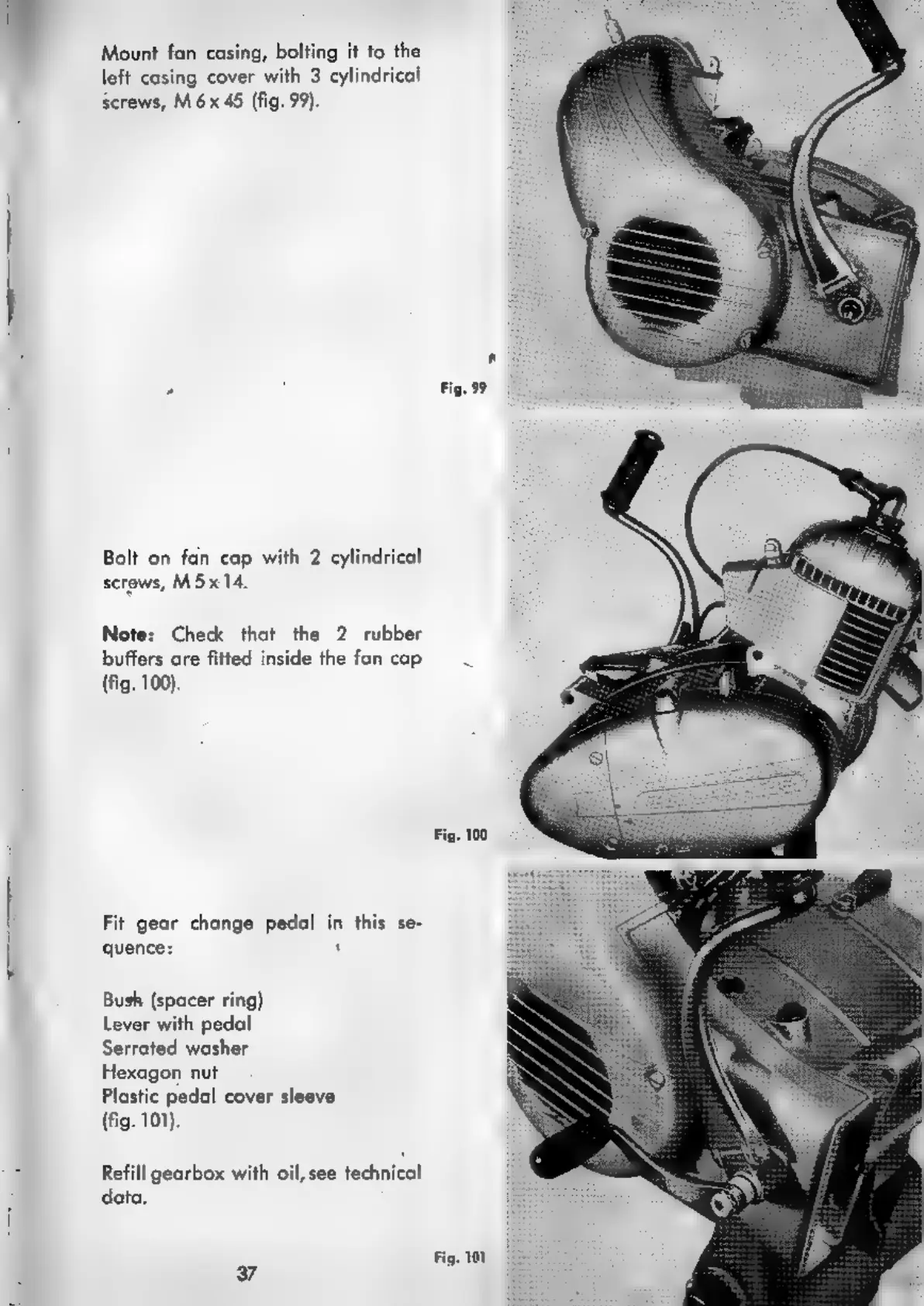

Mount
fan
casing,
bolting
it
to
the
left
casing
cover
with
3
cylindrical
screws,
M
6
x
45
(fig.
99).
Bolt on fan cap with 2 cylindrical
screws, M5x 14.
Note: Check that the 2 rubber
buffers are fitted inside the fan cap
(fig. 100).
Fit gear change pedal in this se-
quence: 1
Bush (spacer ring)
Lever with pedal
Serrated washer
Hexagon nut
Plastic pedal cover sleeve
(fig. 101).
Refill gearbox with oil, see technical
data.
37
Fig. 100
Fig. 101
