Zundapp 281 - Page 45

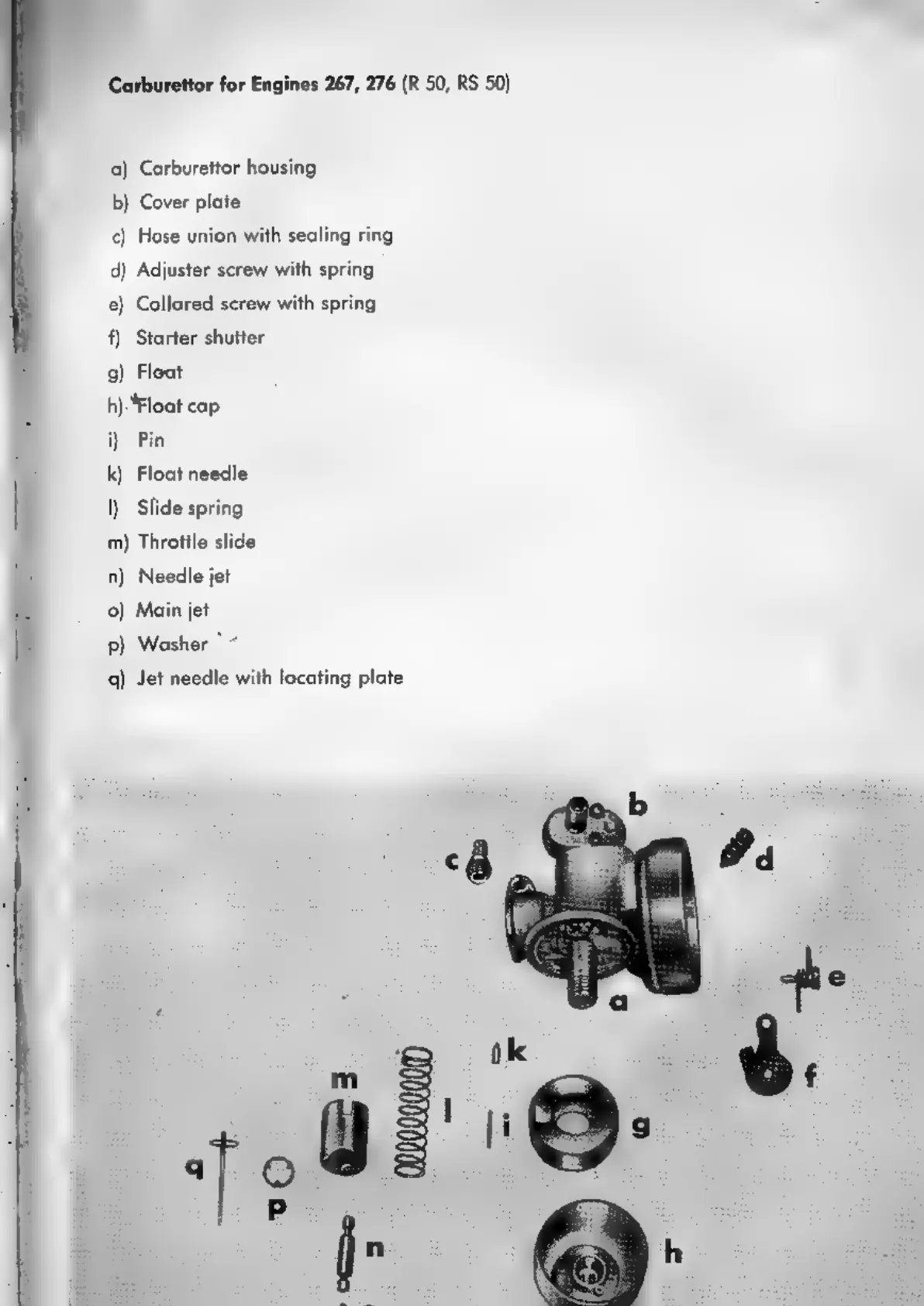

Carburettor for Engines 267, 276 (R 50, RS 50)
a) Carburettor housing
b) Cover plate
d Hose union with sealing ring
d) Adjuster screw with spring
e) Collared screw with spring
f) Starter shutter
g) Float
h) “Float cap
i) Pin
k) Float needle
| I) Slide spring
m) Throttle slide
n) Needle jet
o) Main jet
p)
Washer
`<
q) Jet needle with locating plate
